Electrical Box Si001658EA
6 Removal Procedure
3. Electrical Box
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

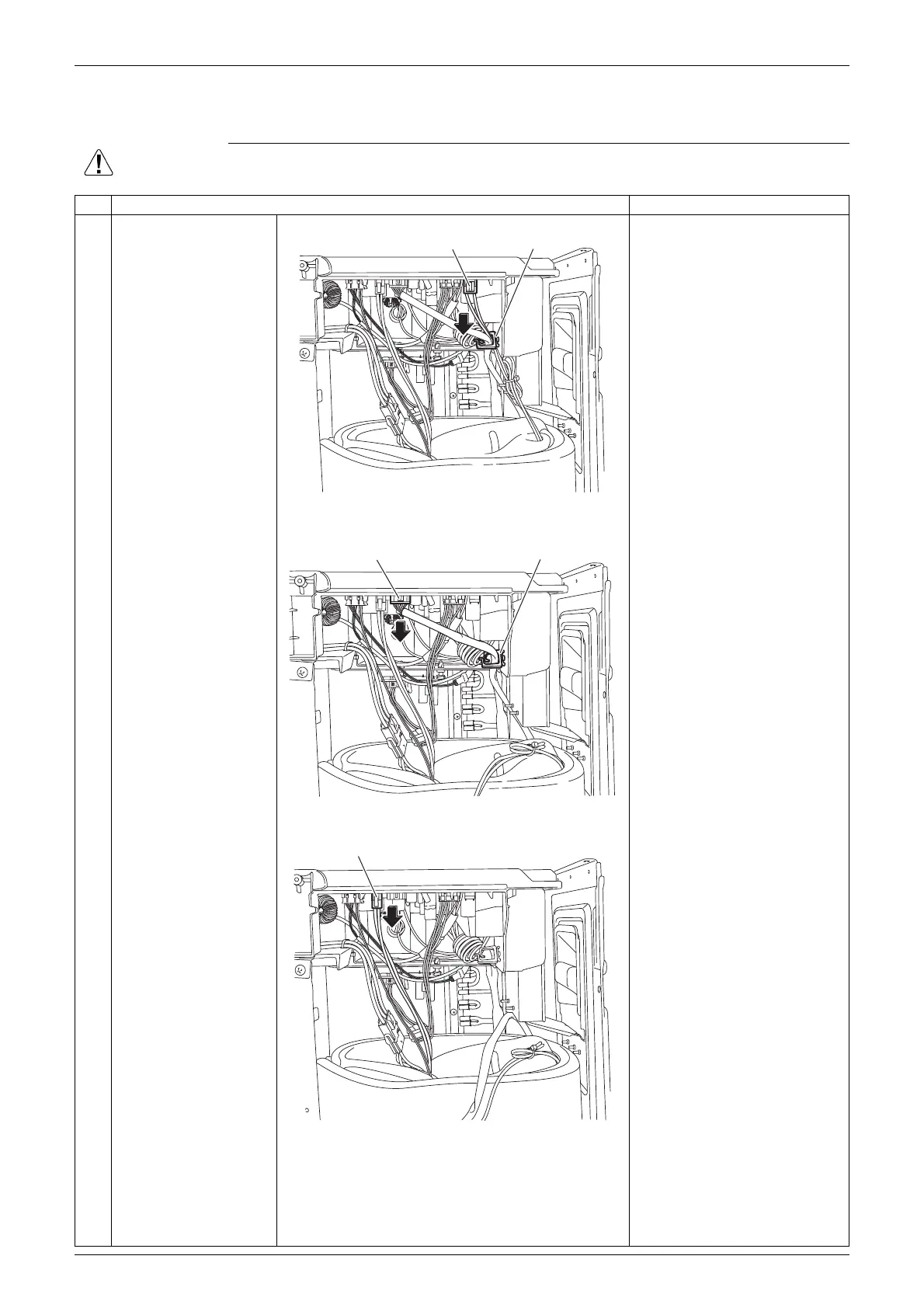

Step Procedure Points
1 Disconnect the
connector [S80] and
release the harness
from the clamp.
The electrical box can be
removed without removing
the fan motor.
[S80]: four way valve
Cooling only models do not
have the connector [S80].
2 Disconnect the
connector [S20] and
release the harness
from the clamp.
[S20]: electronic expansion
valve coil
3 Disconnect the
connector [S40].
[S40]: overload protector
[S80]
Clamp
(R23706)
[S20] Clamp
(R23707)
[S40]
(R23708)
To Next Page
