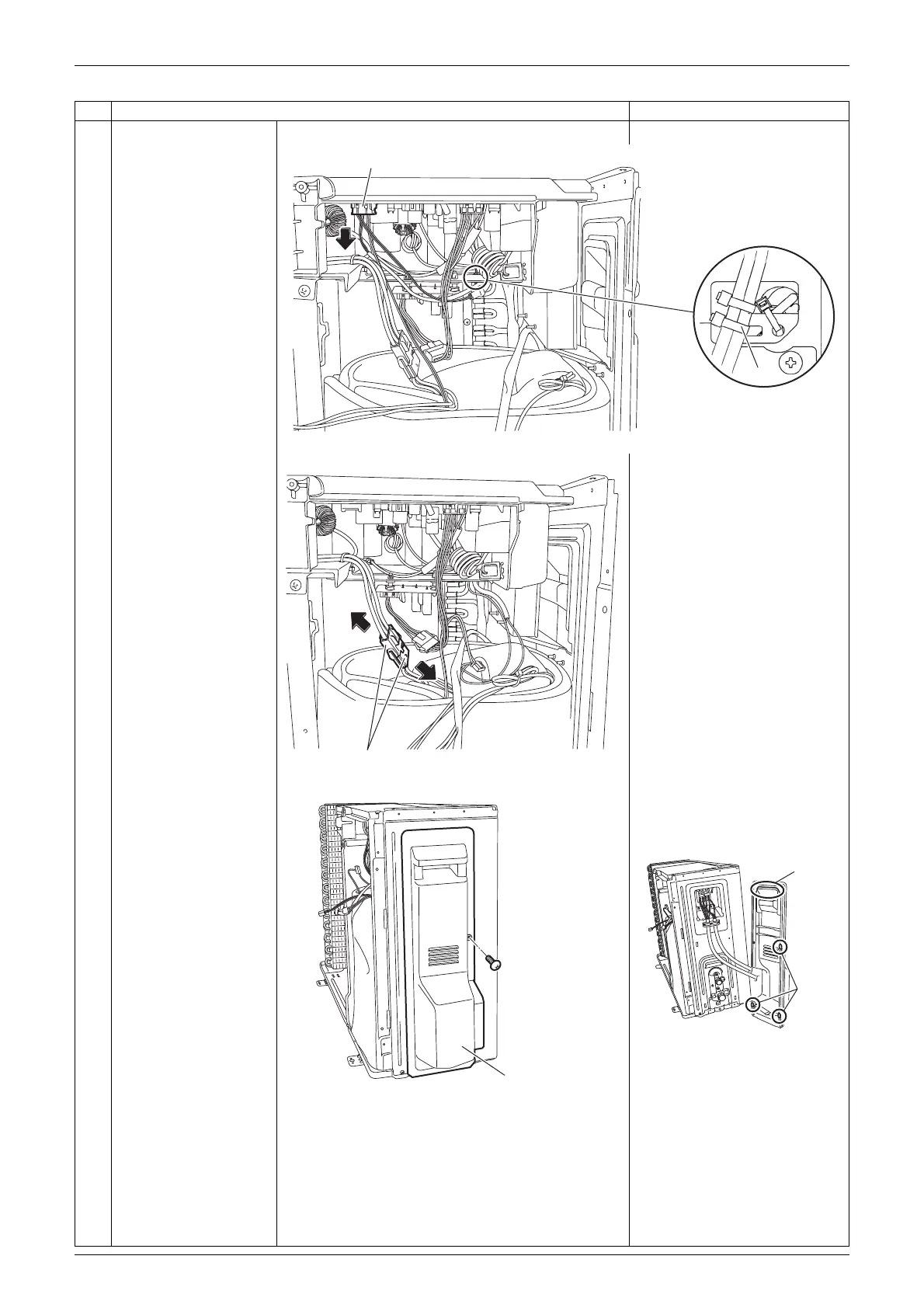

Si001658EA Electrical Box
Removal Procedure 7
4 Disconnect the
connector [S90] and cut
the clamp.
[S90]: thermistors
5 Disconnect the relay
connector for the
compressor.
6
7
Remove the screw of
the stop valve cover.
Slide the stop valve
cover downward and
remove it.

When reassembling, make
sure that the 4 hooks are
securely fastened.
Step Procedure Points
[S90]
Clamp
(R23709)
Relay connector for compressor
(R23710)
Stop valve cover
(R23711)
Hook
Hook
(R23712)
