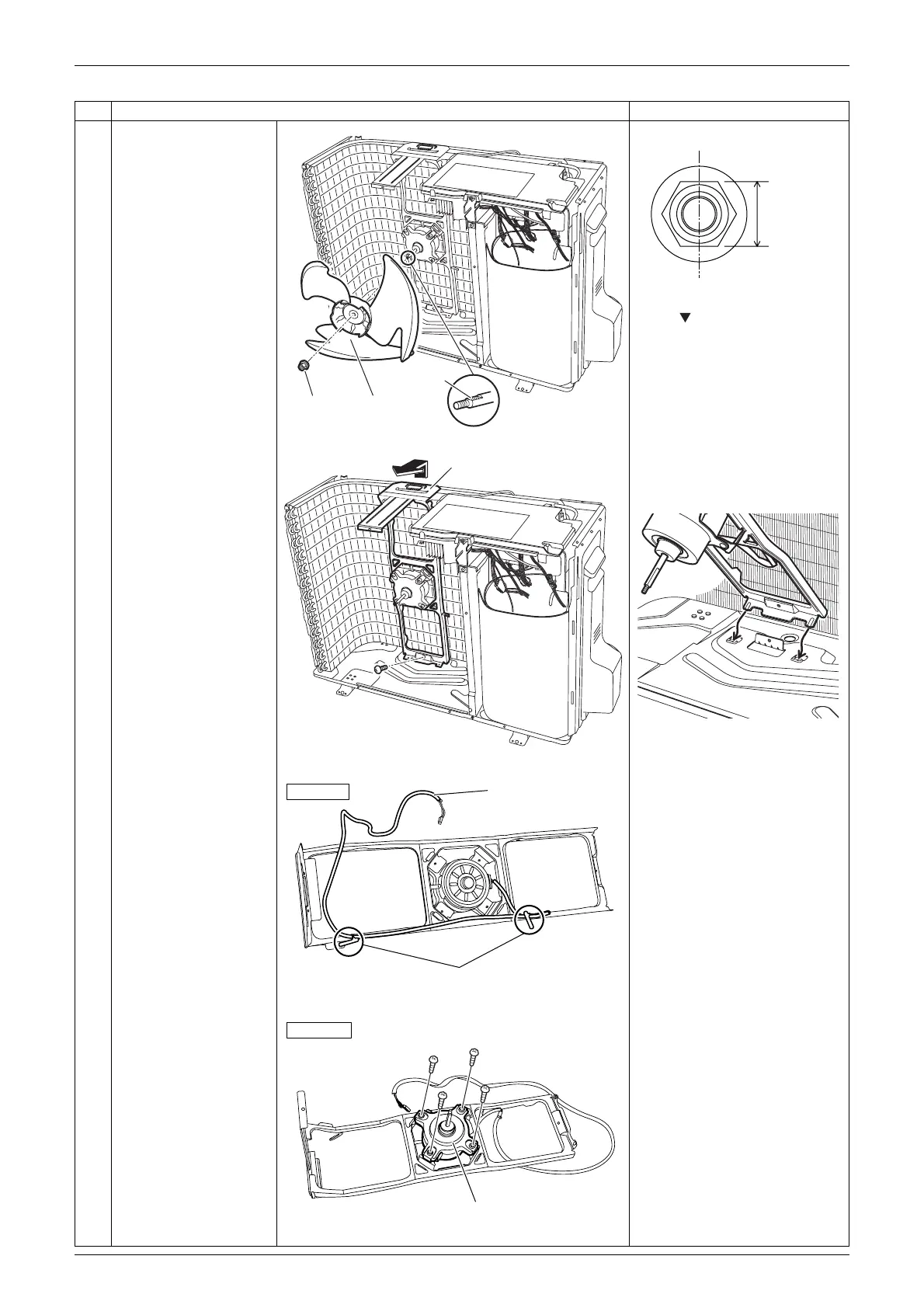

Si001658EA Outdoor Fan / Fan Motor
Removal Procedure 5
4 Remove the nut, and
then the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the fan rotor
with the D-cut section of the
motor shaft.
5
6
Remove the screw of
the fan motor fixing
frame.
Unfasten the 2 hooks at
the bottom and remove
the fan motor fixing
frame.

When reassembling, fit the 2
lower hooks into the bottom
frame.
7 Open the 2 hooks and
release the fan motor
lead wire.
8 Remove the 4 screws,
and then the fan motor.
Step Procedure Points
Outdoor fanNut
D-cut
(R23702)
10 mm
(0.39 inch)
(R18954)
Fan motor fixing frame
(R23703)
(R22574)
Hook
Fan motor lead wire
Back view
(R23704)
Fan motor
Front view
(R24357)
