Electrical Components / Sound Blankets Si011357EA
8 Removal Procedure
2. Electrical Components / Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

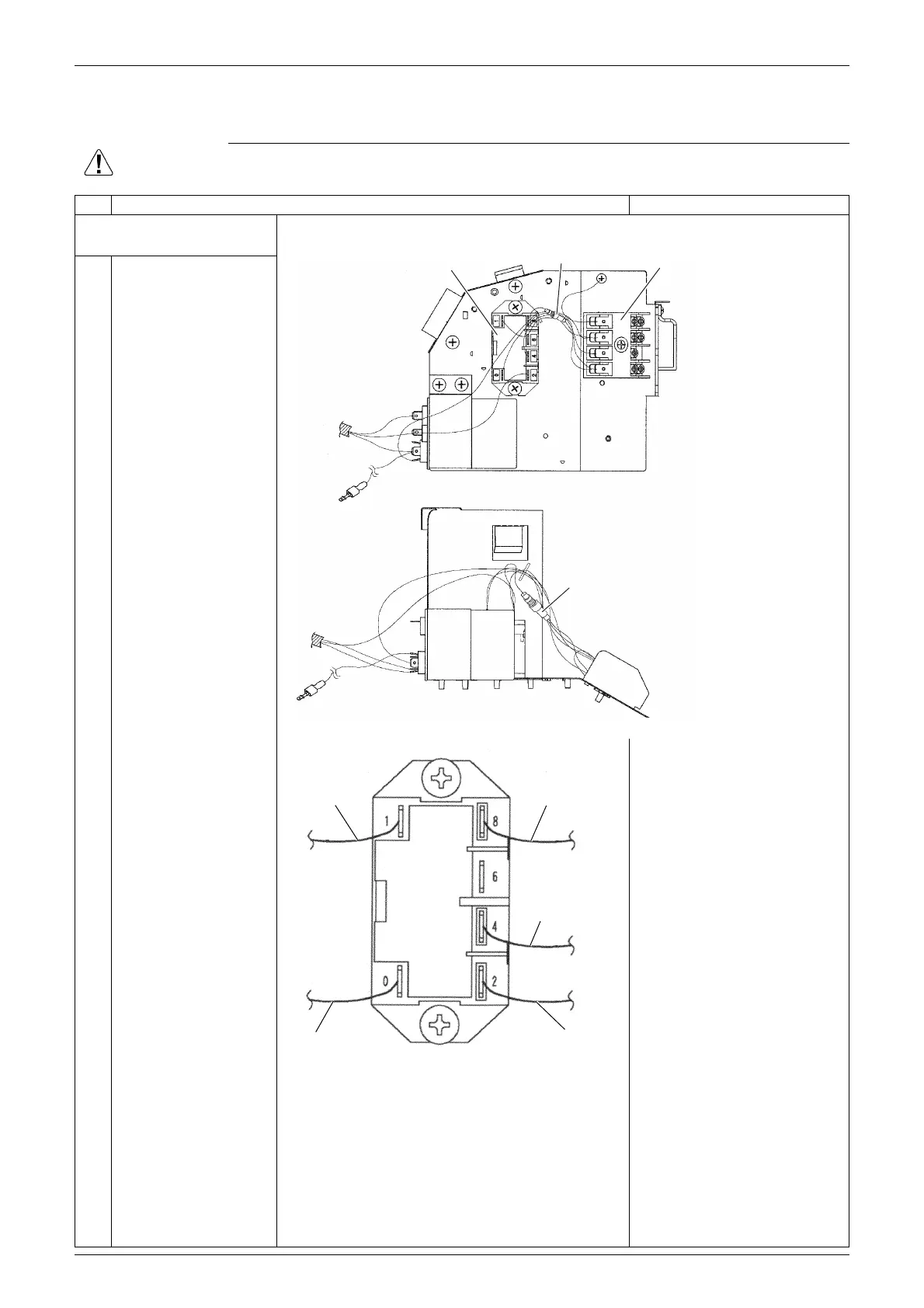

1. Remove the electrical
components.
1
2
Pull out the terminals
from the magnetic
contactor (K1M).
Remove the 2 screws
and remove the
magnetic contactor
(K1M).
C1R
C1R
X1M
F1U
F1U
X1M
K1M
(R20755)
to X1M (3)
: white
to X1M (1)
: red (fuse)
to X1M (1)
: red
to compressor
(C terminal)
: blue
to X1M (2)
: white
K1M
(R20745)
