Daikin RM13NV2S - Outer Panels; Fan Motor

Outer Panels / Fan Motor Si011357EA
2 Removal Procedure
1. Outer Panels / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

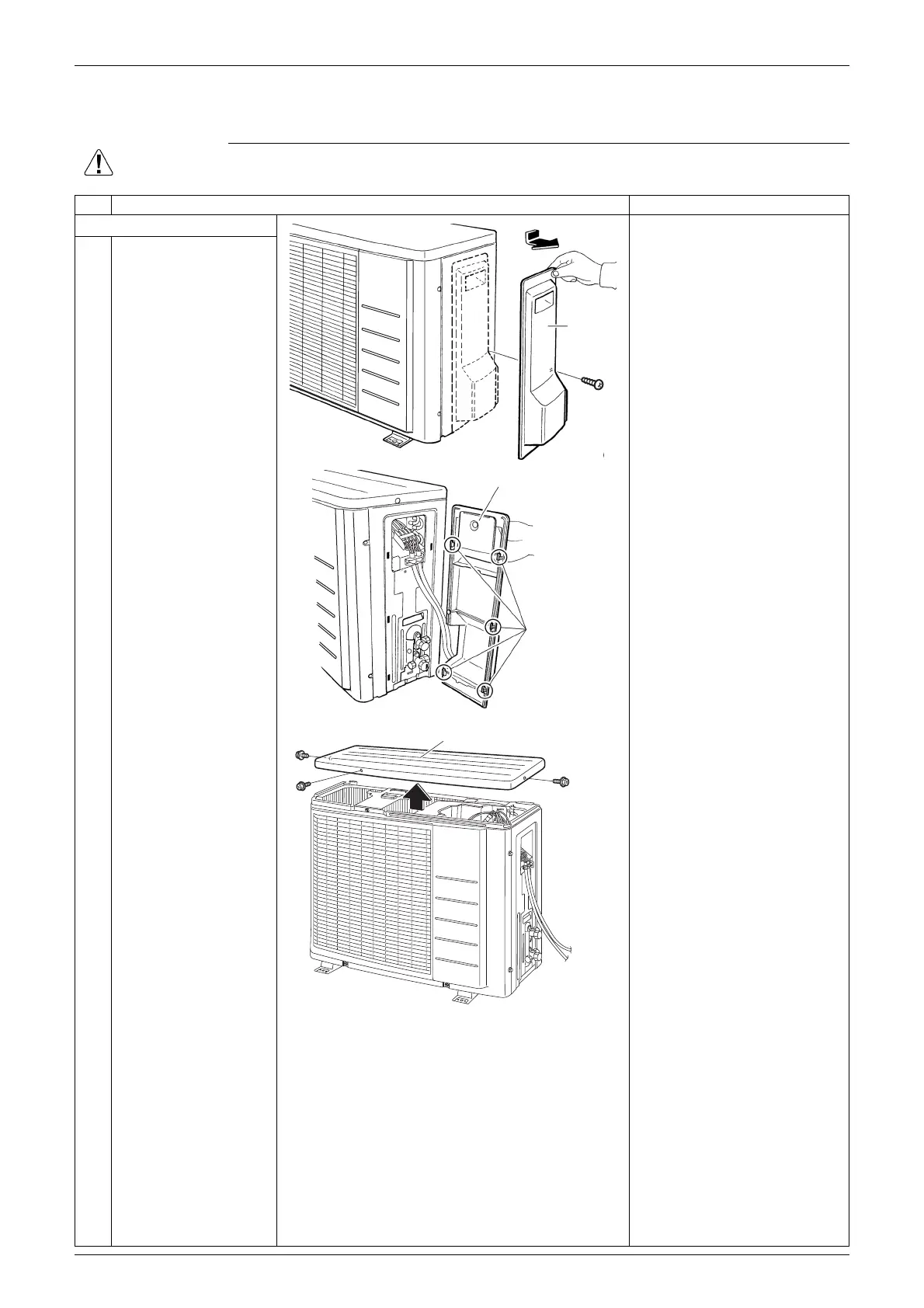

1. Remove the outer panels.

The stop valve cover is
united with the shield plate.

When reassembling, make
sure to fit the 5 hooks.
1
Remove the screw and
remove the stop valve
cover.
2
Remove the 3 screws
and remove the top
panel.
Stop
valve
cover
(R7188)
Shield plate
Hook
(R16333)
Top panel
(R16334)
