Si011357EA Outer Panels / Fan Motor
Removal Procedure 3
3

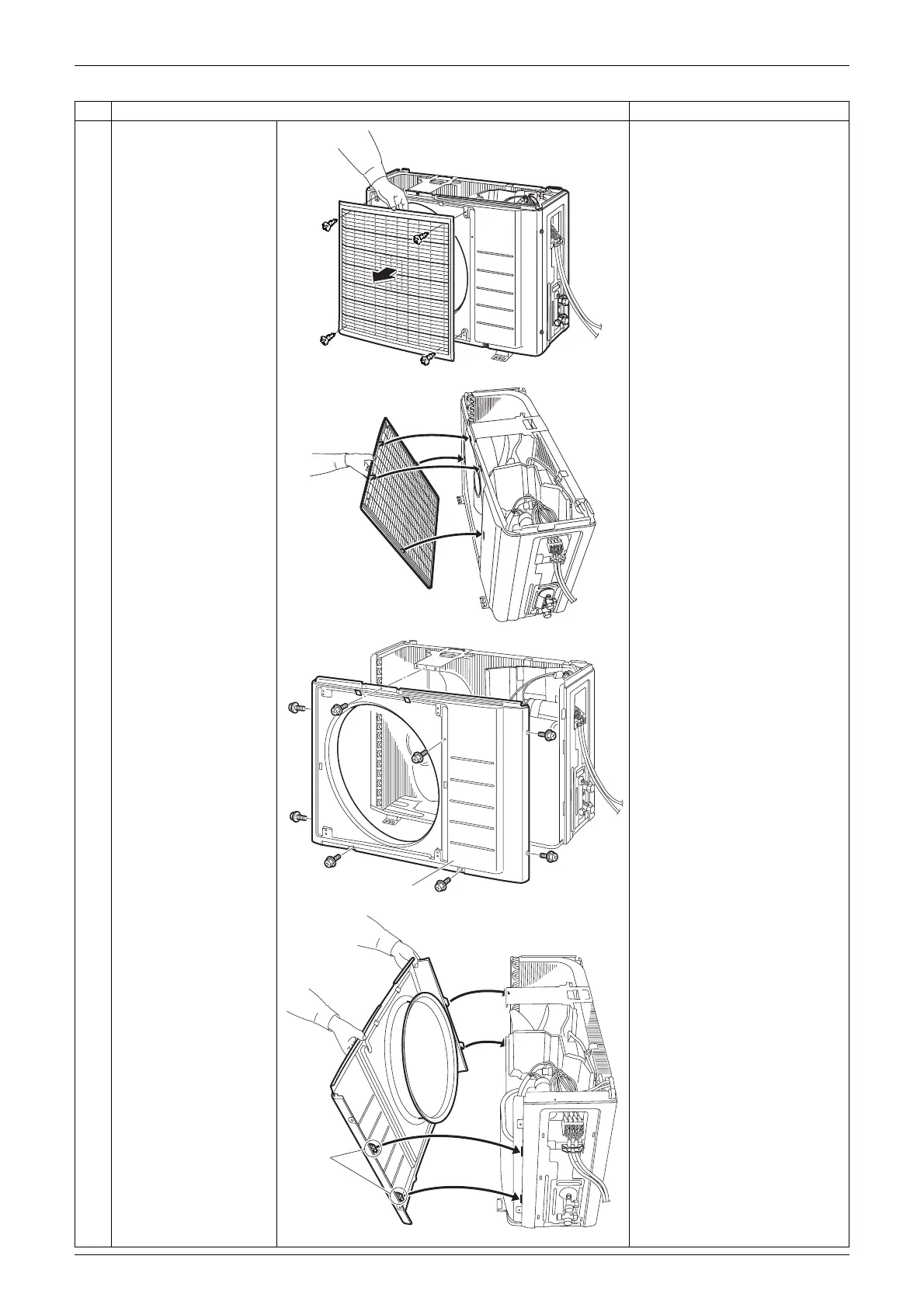

Remove the 4 screws
and remove the
discharge grille.

The discharge grille has 4
hooks.
4
Remove the 8 screws
of the front panel.
5
Unfasten the 4 hooks
and remove the front
panel.

The front panel has 4 hooks.
Step Procedure Points
(R16335)
(R16336)
(R16337)
Front panel
Hook
(R16338)
