Outer Panels / Fan Motor Si011357EA
4 Removal Procedure

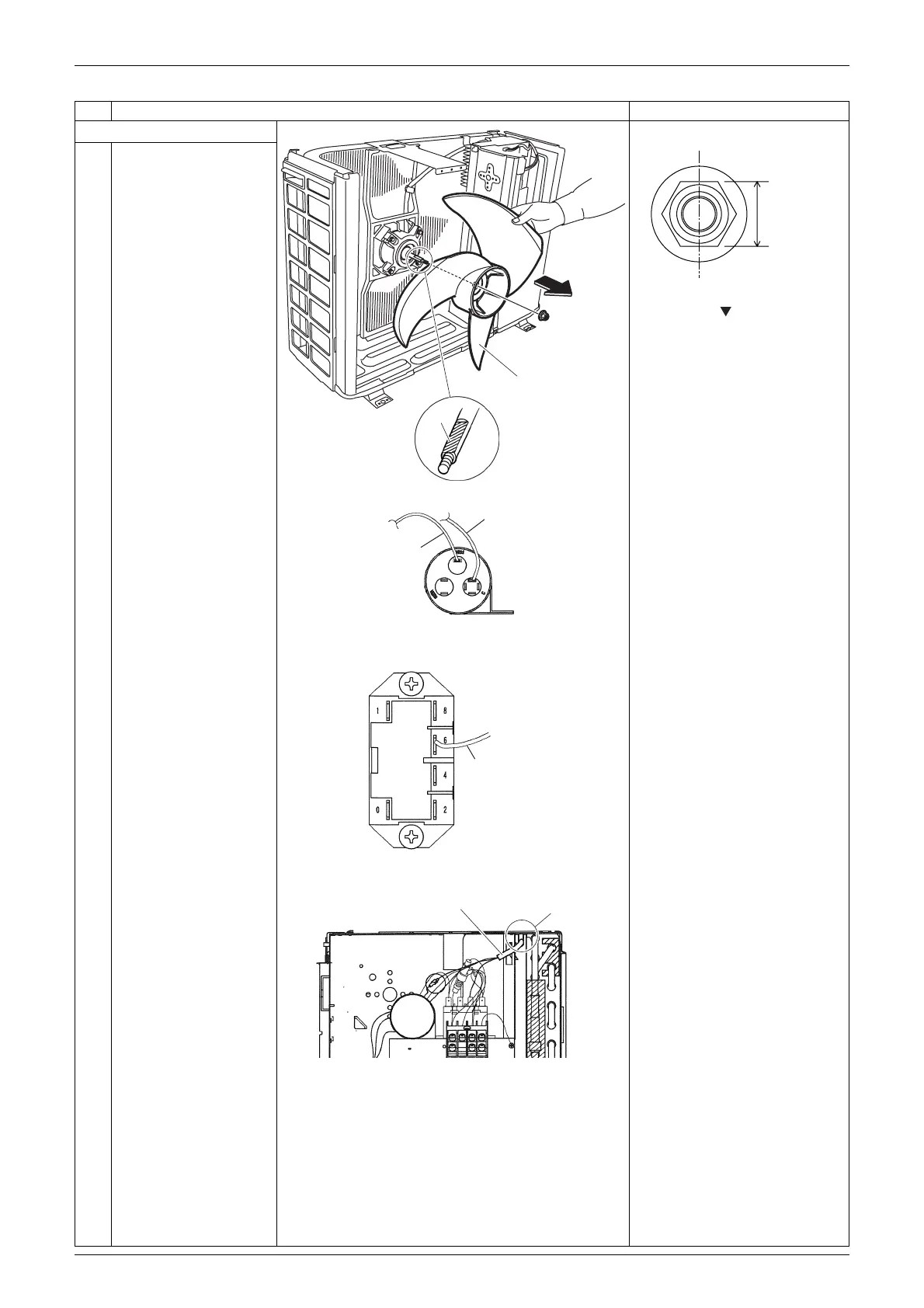

2. Remove the fan motor.

Nut size: M6

Align the mark of the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
1
Remove the nut and
remove the outdoor fan.
2
Pull out the 2 terminals
(red, white) from the
compressor capacitor
(C1R).
3
Pull out the terminal
(black) from magnetic
contactor K1M (6).
4
Release the fan motor
lead wire from the
groove.
Step Procedure Points
D-cut
Outdoor fan
(R19342)
10 mm
(0.39 inch)
(R18954)
to fan motor:
red
to fan motor:
white
C1R
(R20772)
to fan motor:
black
K1M
(R19276)
Fan motor lead wire
Groove
(R19347)
