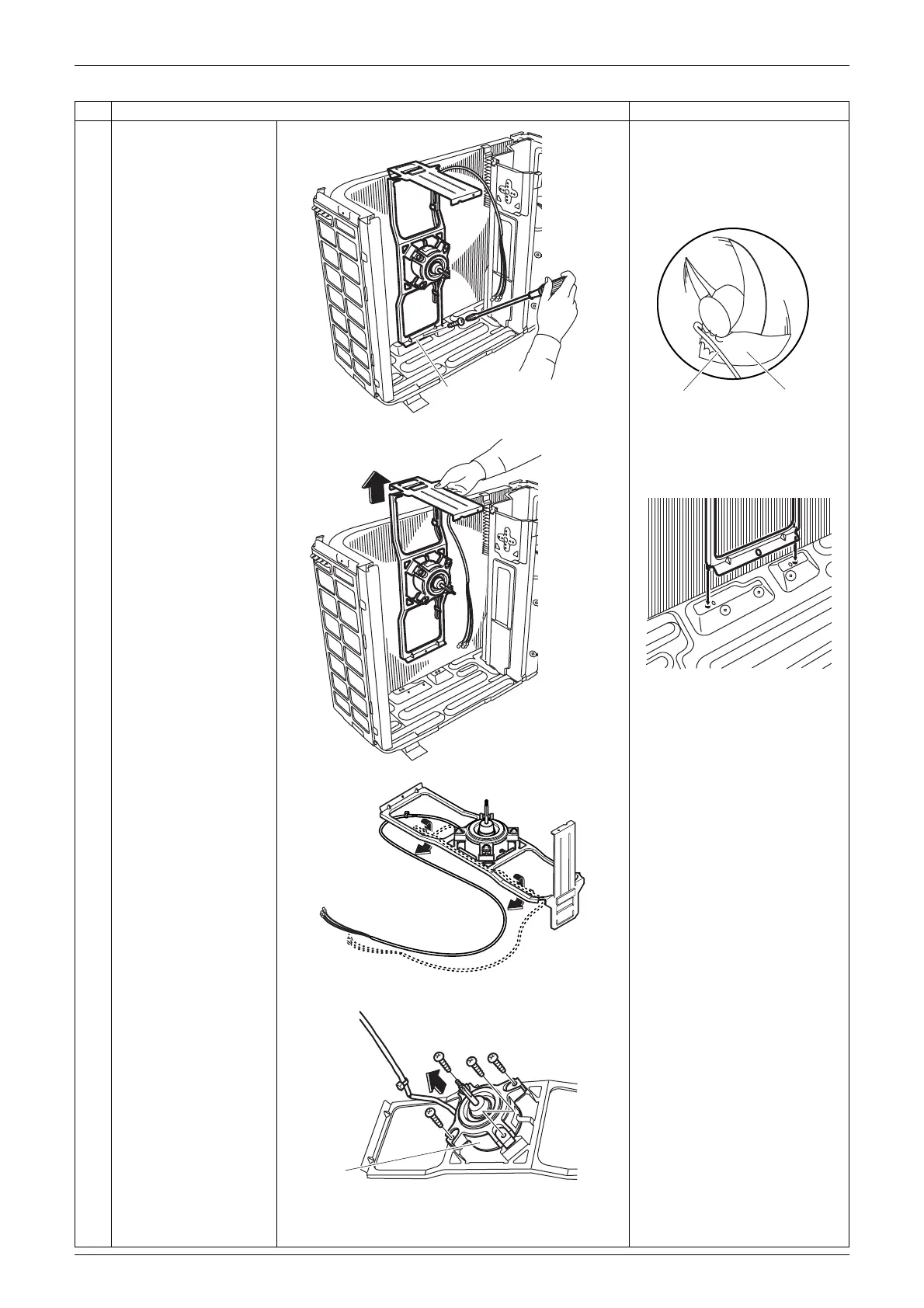

Si011357EA Outer Panels / Fan Motor
Removal Procedure 5
5
Remove the screw and
remove the fan motor
fixing frame.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
When reassembling, fit the
lower hooks into the bottom
frame.
6
Release the fan motor
lead wire from the
hooks.
7
Remove the 4 screws
and remove the fan
motor.
Step Procedure Points
(R15232)
Fan motor fixing frame
(R15233)
(R3249)
Lead wire Outdoor fan
(R19277)
(R15234)
(R15235)
Fan
motor
To Next Page
