Daikin RM13NV2S - Page 8

Outer Panels / Fan Motor Si011357EA

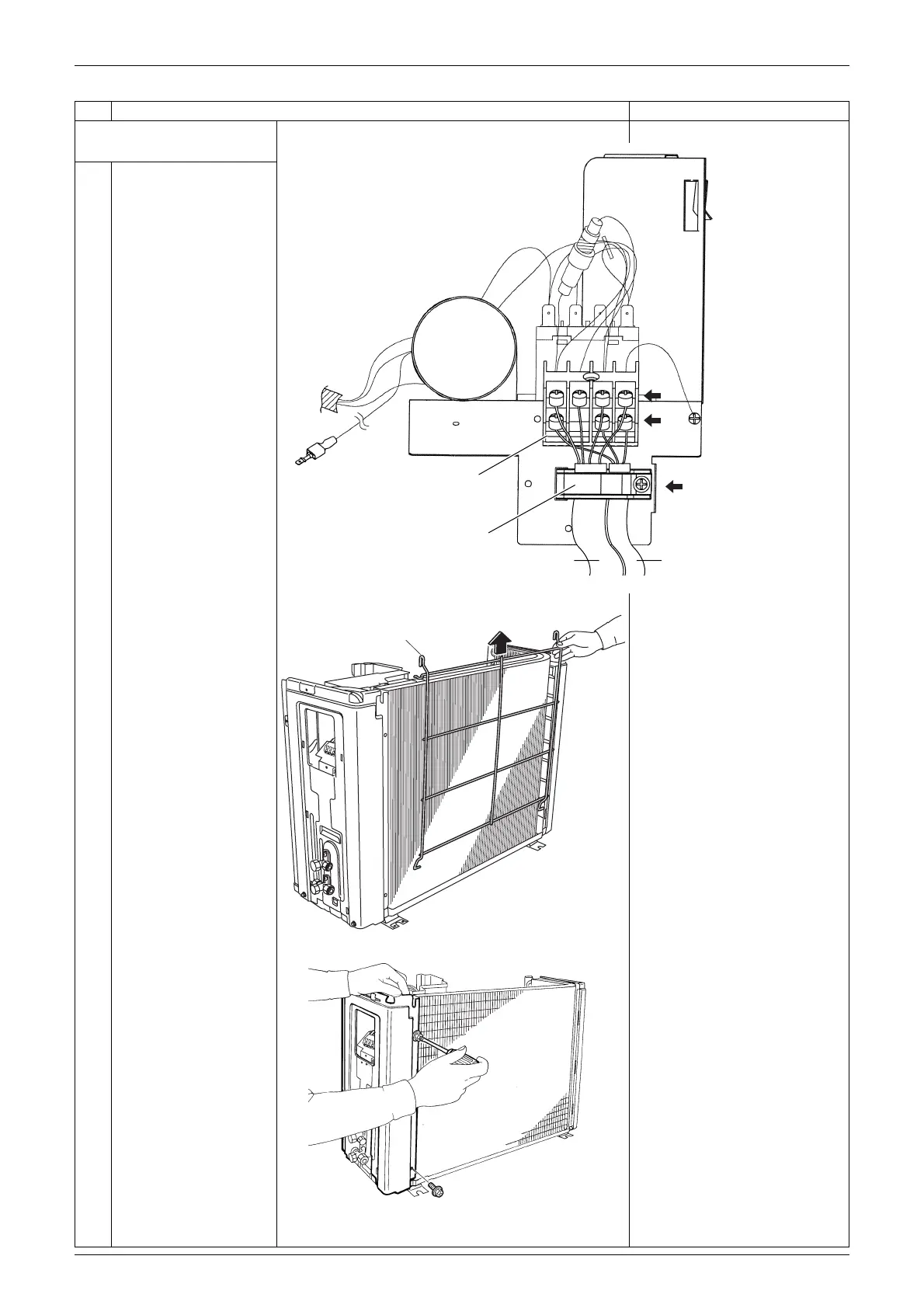

6 Removal Procedure
3. Remove the right side
panel.
1
2
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
Remove the screw and
remove the wire fixture.
3
Lift up and remove the
guard net.
4
Remove the 2 screws
on the rear side.
Step Procedure Points
(R19280)
Connecting
wire
Power supply
wire
Wire fixture
Terminal board
Guard net
(R8284)
(R15237)
