Daikin RN10FV1 - Page 55

54
TM-FT-0415-B

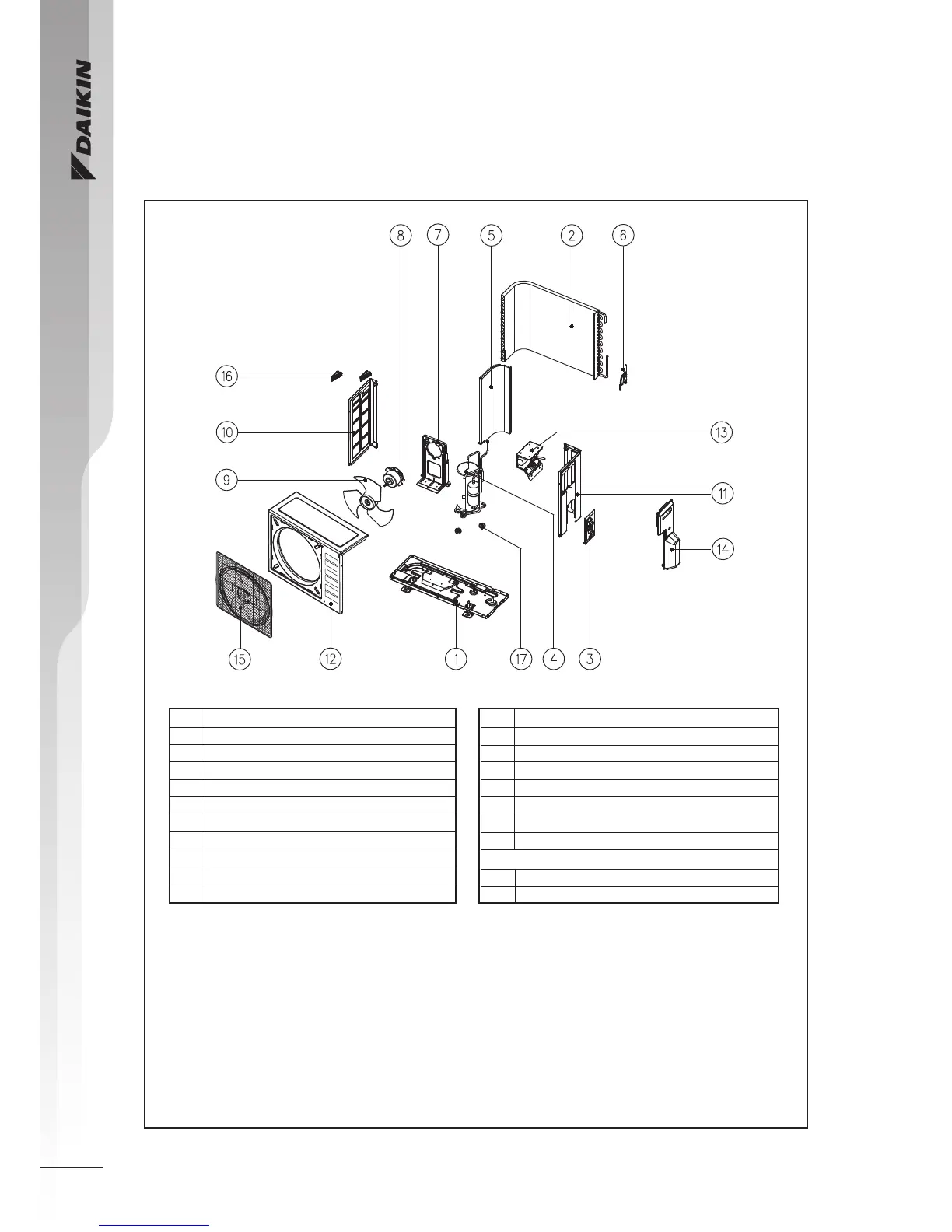

Outdoor Unit
Model : R09/15CV1
NO. DESCRIPTION NO. DESCRIPTION
1 ASSY. BASE PAN
12 ASSY. FRONT PANEL
2 ASSY. OUTDOOR COIL
13 ASSY. CONTROL PANEL
3 VALVE BRACKET
14 ASSY. VALVE COVER
4 COMPRESSOR
15 ASSY. FRONT GRILLE
16 PLASTIC HANDLE
17 RUBBER GROMMET
5
ASSY. PARTITION
6 ASSY. CAP TUBE
7
BRACKET, FAN MOTOR
8 FAN MOTOR
PARTS NOT IN DIAGRAM
CAPACITOR, FAN MOTOR
CAPACITOR, COMPRESSOR
9 FAN BLADE
10 LEFT PANEL
11 RIGHT PANEL
* DUE TO OUR POLICY OF INNOVATION, SOME SPECIFICATIONS MAY BE CHANGED WITHOUT NOTIFICATION.
