MaInTenanCe
www.DaikinApplied.com 133 IM 893-10 • ROOFPAK SINGLEZONE UNITS

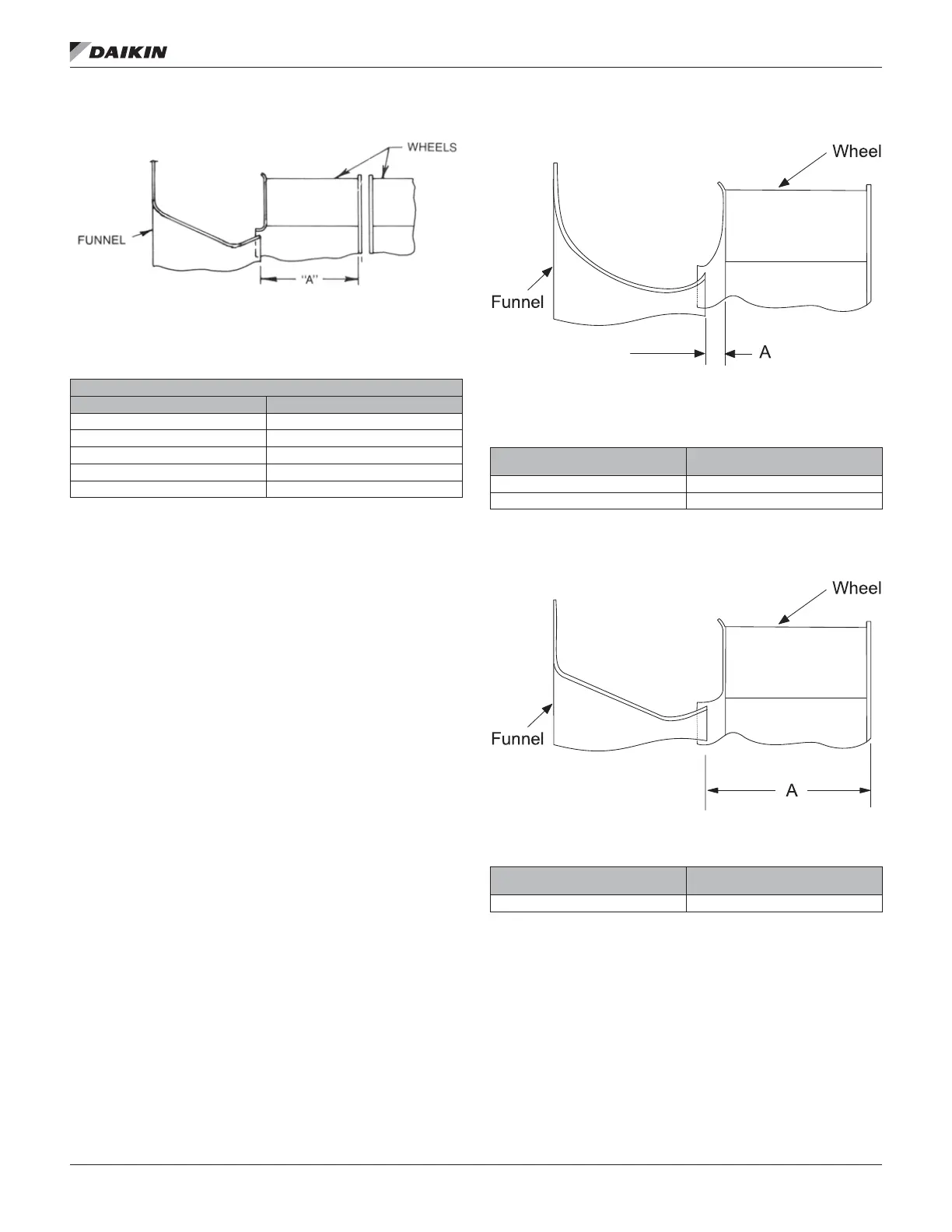

Figure 122: 27ʺ to 40ʺ DWDI Airfoil Wheel-to-Funnel
Table 31: 27ʺ to 40ʺ DWDI Airfoil Wheel-to-Funnel
Relationship
Wheel-to-funnel relationship (in inches)
Wheel diameter (inches) A +0.3/ — 0.0
27 9.9 (246 mm)
30 10.6 (269 mm)
33 11.7 (297 mm)
36 13.1 (333 mm)
40 14.5 (368 mm0
Figure 123: 44ʺ and 49ʺ SWSI Airfoil Wheel-to-Funnel
Table 32: 44ʺ and 49ʺ SWSI Airfoil Wheel-to-Funnel
Relationship
Wheel-to-funnel relationship
(in inches)
Wheel diameter “A”
44 16.21
49 17.81
Figure 124: 40ʺ SWSI Airfoil Wheel-to-Funnel Alignment
Table 33: SWSI airfoil wheel-to-funnel relationship
Wheel-to-funnel relationship
(in inches)
Wheel diameter A
40 0.62
