IM 893-10 • ROOFPAK SINGLEZONE UNITS 58 www.DaikinApplied.com
WIrIng dIagraMs

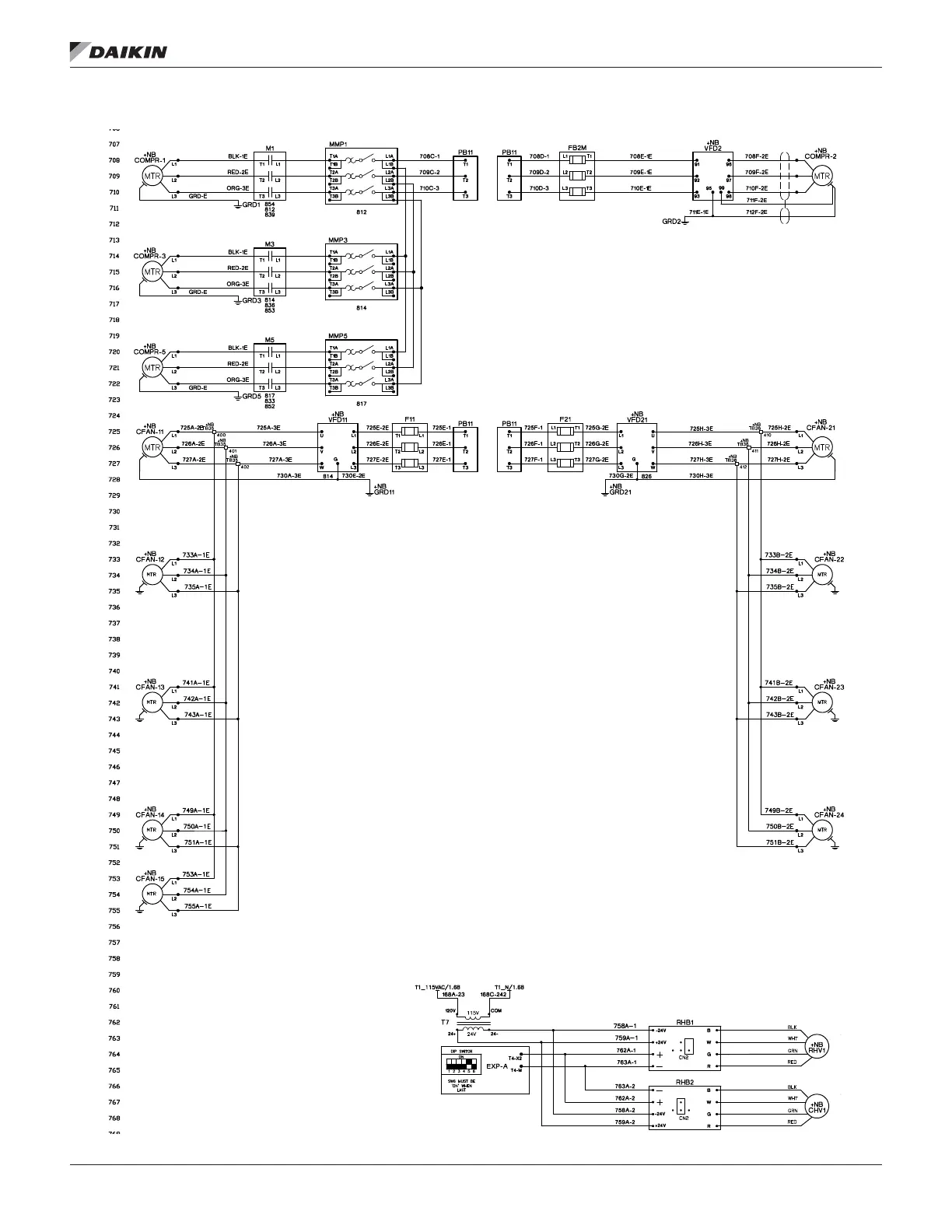

Figure 62: RPS 074 Condensing Unit Power (with Variable Speed Inverter Compressor)*
V/L2
W/L3
U/L1
* Related control schematic
on page 69 - page 71
