SiBE31-801_C Functional Parts Layout
Refrigerant Circuit 64

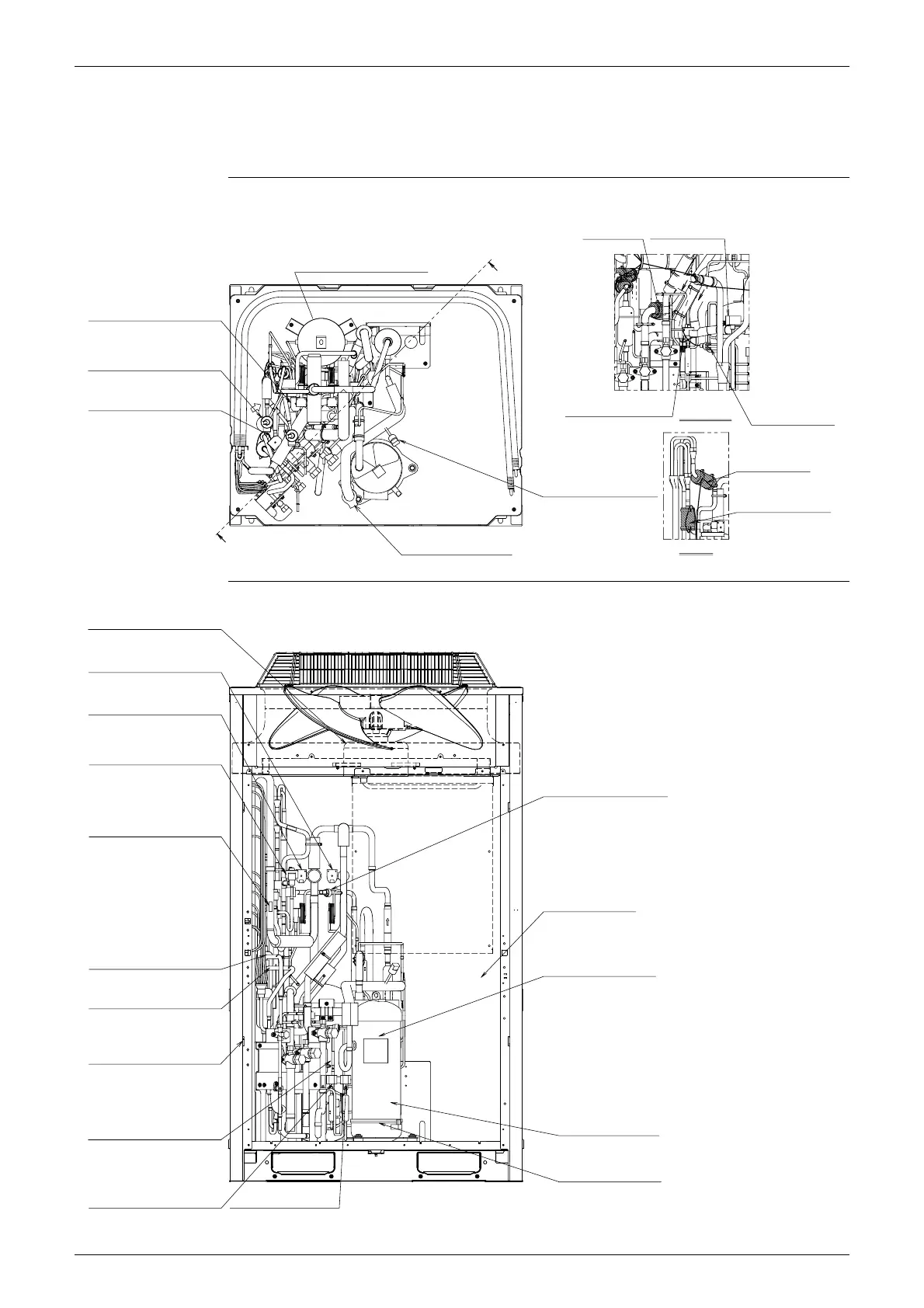

2. Functional Parts Layout
2.1 RTSQ8P
Plan
Front View
REFRIGERANT REGULATOR
SOLENOID VALVE
(SVL)
ELECTRONIC EXPANSION VALVE
(SUBCOOLING)
SOLENOID VALVE (SVE)
N
M
M
THERMISTOR
(INV. DISCHARGE PIPE)
THERMISTOR
(SUCTION)
SOLENOID VALVE
(HOT GAS)
COIL FOR EXPANSION
VALVE (CHARGE)
SECTION M-M
HIGH PRESSURE SWITCH
PRESSURE SENSOR
(LOW PRESS.)
THERMISTOR
(LIQUID)
THERMISTOR
(SUBCOOLING HEAT EXCH. GAS)
VIEW N
(Y4S)
(Y3E)
(Y6S)
(R31T)
(R8T)
(Y5S)
(Y2E)
(S1PH)
(S2NPL)
(R9T)
(R5T)
INVERTER FAN
FOUR WAY VALVE (PIPE)
FOUR WAY VALVE (HEAT EXC.)
EXPANSION VALVE
(MAIN)
THERMISTOR
(HEAT EXC. GAS)
THERMISTOR
(HEAT EXCH. LIQUID)
THERMISTOR
(SUBCOOLING HEAT EXCH. LIQUID)
THERMISTOR
(HEAT EXCH. DEICER)
EARTH WIRE
SOLENOID VALVE (SVG)
SOLENOID VALVE (SVO)
HIGH PRESSURE SENSOR
THERMISTOR (AIR)
SOLENOID VALVE (SVT)
COMPRESSOR (INV.)
(M1C)
CRANKCASE HEATER
(E1HC)
(M1F)
(Y2S)
(Y3S)
(Y1E)
(R2T)
(R7T)
(R6T)
(R4T)
(Y1S)
(Y7S)
(Y8S)
(R1T)
(S1NPH)
