Daikin RTSQ14PY1 User Manual

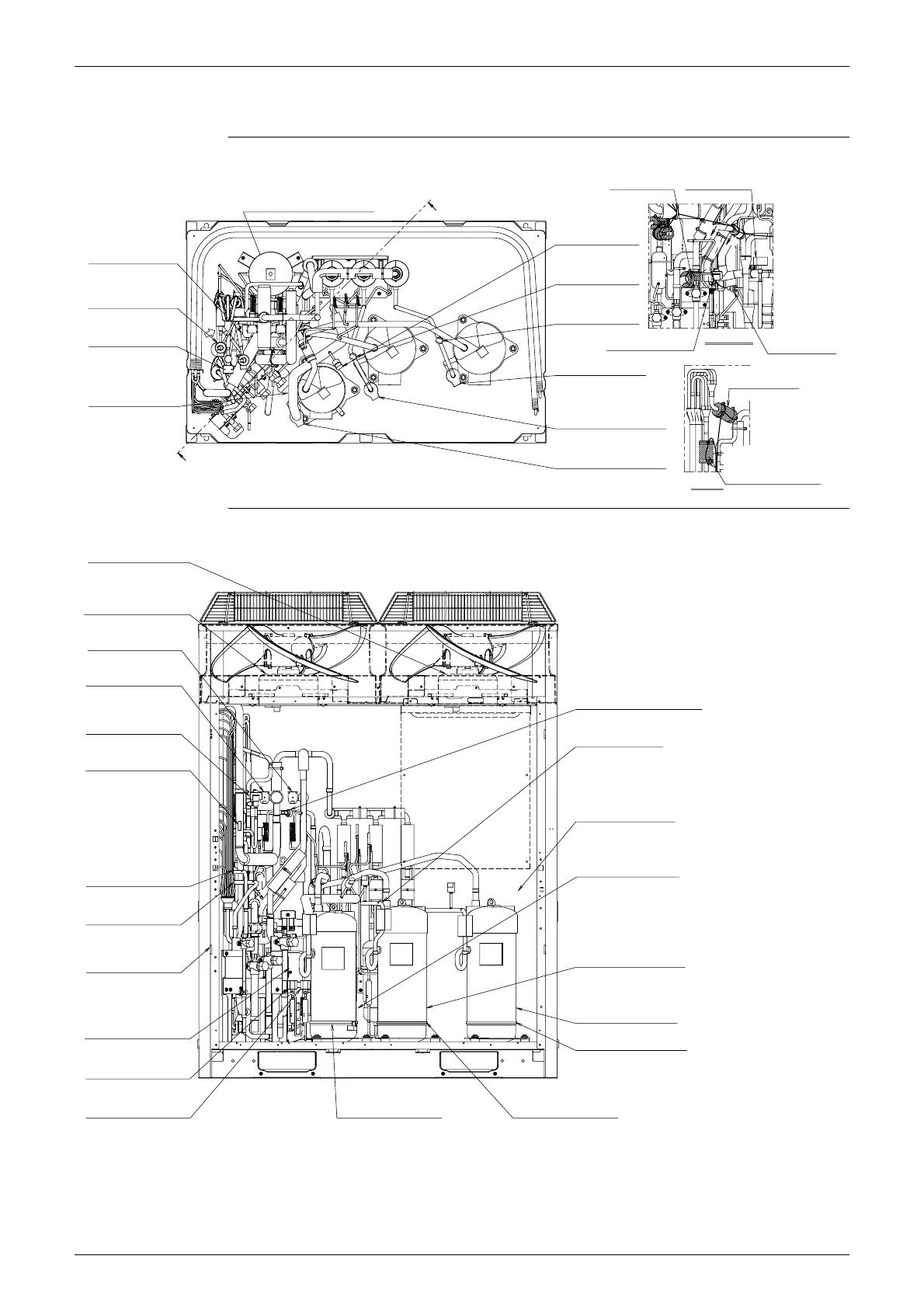

SiBE31-801_C Functional Parts Layout
Refrigerant Circuit 66
2.3 RTSQ14P, 16P
Plan
Front View
REFRIGERANT REGULATOR
SOLENOID VALVE (SVL)
(Y4S)
COIL FOR EXPANSION VALVE
(SUBCOOLING)
(Y3E)
SOLENOID VALVE (SVE)
(Y6S)
INSULATION TUBE
N
M
M
HIGH PRESSURE
SWITCH
(S1PH)
HIGH PRESSURE
SWITCH
(S2PH)
HIGH PRESSURE
SWITCH
(S3PH)
ELECTRONIC EXPANSION
VALVE (CHARGE)
(Y2E)
THERMISTOR
(STD1 DISCHARGE PIPE)
(R33T)
THERMISTOR
(M2C DISCHARGE PIPE)
(R32T)
THERMISTOR
(M1C DISCHARGE PIPE)
(R31T)
THERMISTOR
(SUCTION)
(R8T)
SOLENOID VALVE
(HOT GAS)
(Y5S)
SECTION M-M
LOW PRESSURE
SENSOR
(S2NPL)
THERMISTOR
(LIQUID)
(R9T)
VIEW N
THERMISTOR
(SUBCOOLING GAS)
(R5T)
INVERTER FAN
(M1F)
INVERTER FAN
(M2F)
FOUR WAY VALVE (PIPE)
(Y2S)
FOUR WAY VALVE (HEAT EXC.)
(Y3S)
ELECTRONIC EXPANSION VALVE
(MAIN)
(Y1E)
THERMISTOR (HEAT EXC. GAS)
(R2T)
THERMISTOR
(HEAT EXCH. LIQUID)
(R7T)
THERMISTOR
(SUBCOOLING LIQUID)
(R6T)
THERMISTOR (DEICER)
(R4T)
EARTH WIRE
SOLENOID VALVE (SVG)
(Y1S)
SOLENOID VALVE (SVO)
(Y7S)
CRANKCASE HEATER
(E1HC)
HIGH PRESSURE SENSOR
(S1NPH)
INSULATION TUBE
THERMISTOR (AIR)
(R1T)
COMPRESSOR (INV.)
(M1C)
COMPRESSOR (STD1)
(M2C)
COMPRESSOR (STD2)
(M3C)
CRANKCASE HEATER
(E3HC)
CRANKCASE HEATER
(E2HC)

Daikin RTSQ14PY1 Specifications

General

Brand	Daikin
Model	RTSQ14PY1
Category	Heat Pump
Language	English
