Installation examples
Prodecure for Lower Front Connection

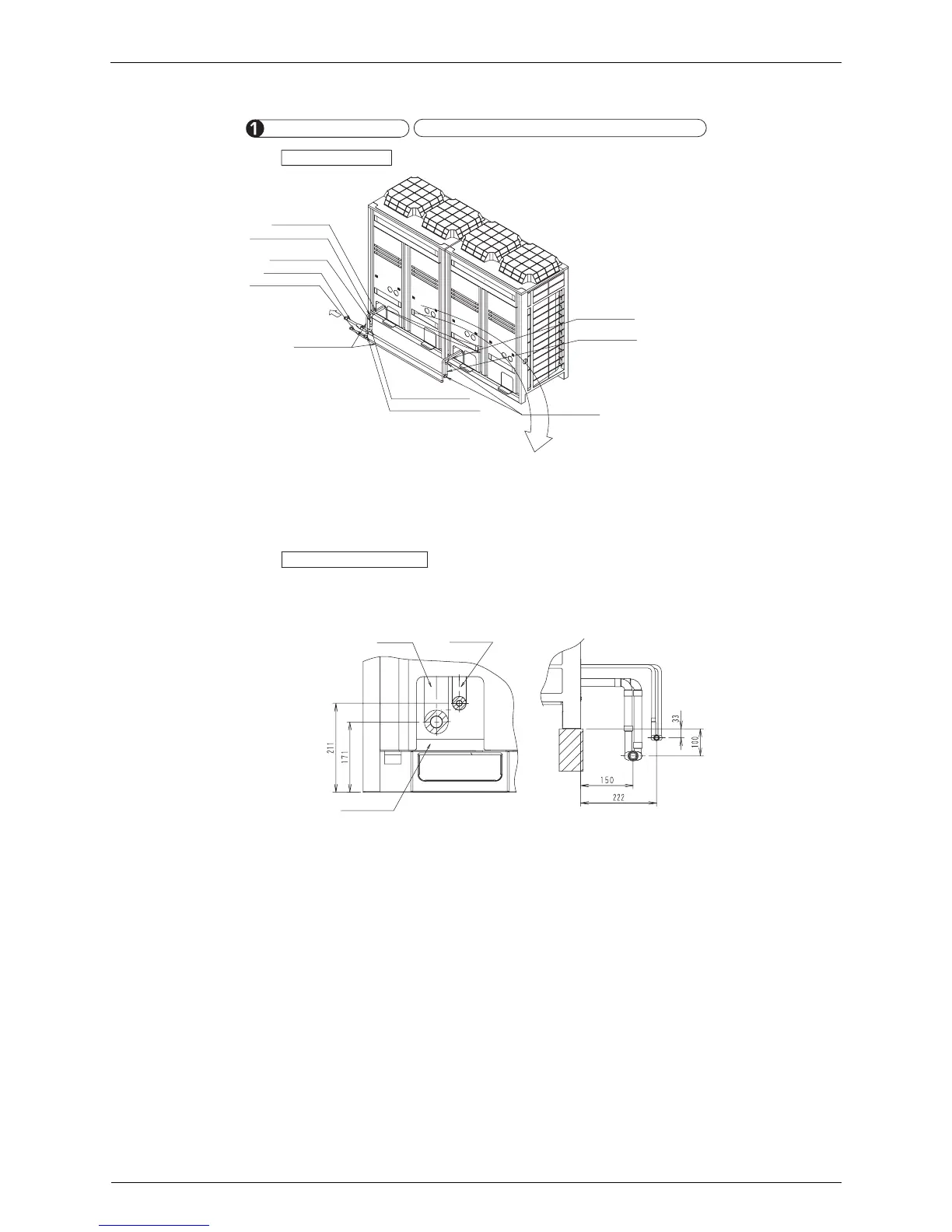

1-1 Exterior view
1-2 Finished dimensions
Outdoor unit A
Outdoor unit B
Gas pipe 2
(field supply)
Gas pipe 4
(field supply)
Gas pipe 1
(field supply)
Gas pipe 3
(field supply)
Elbow (field supply)
Elbow (field supply)
Gas-side joint
Liquid-side joint
To indoor unit
Gas-side reducer (1)
Liquid-side reducer (1)
Liquid pipe
(field supply)
• A standard installation has the following dimensions
•
When the dimensions exceed the standard installation, extend the pipes between the outdoor
unit and the joint (field supply)
Gas pipe
Liquid pipe
Bottom frame
