CAUTION
This installation is only possible if there is enough space to perform brazing and racking underneath the outdoor unit.
If a centralized drain pan kit and/or vibration proof base are used, the dimensions marked with “ ” in the figure below
will vary, so see the table below and determine the length of the field pipes.
Installation examples
Procedure for Bottom Connection

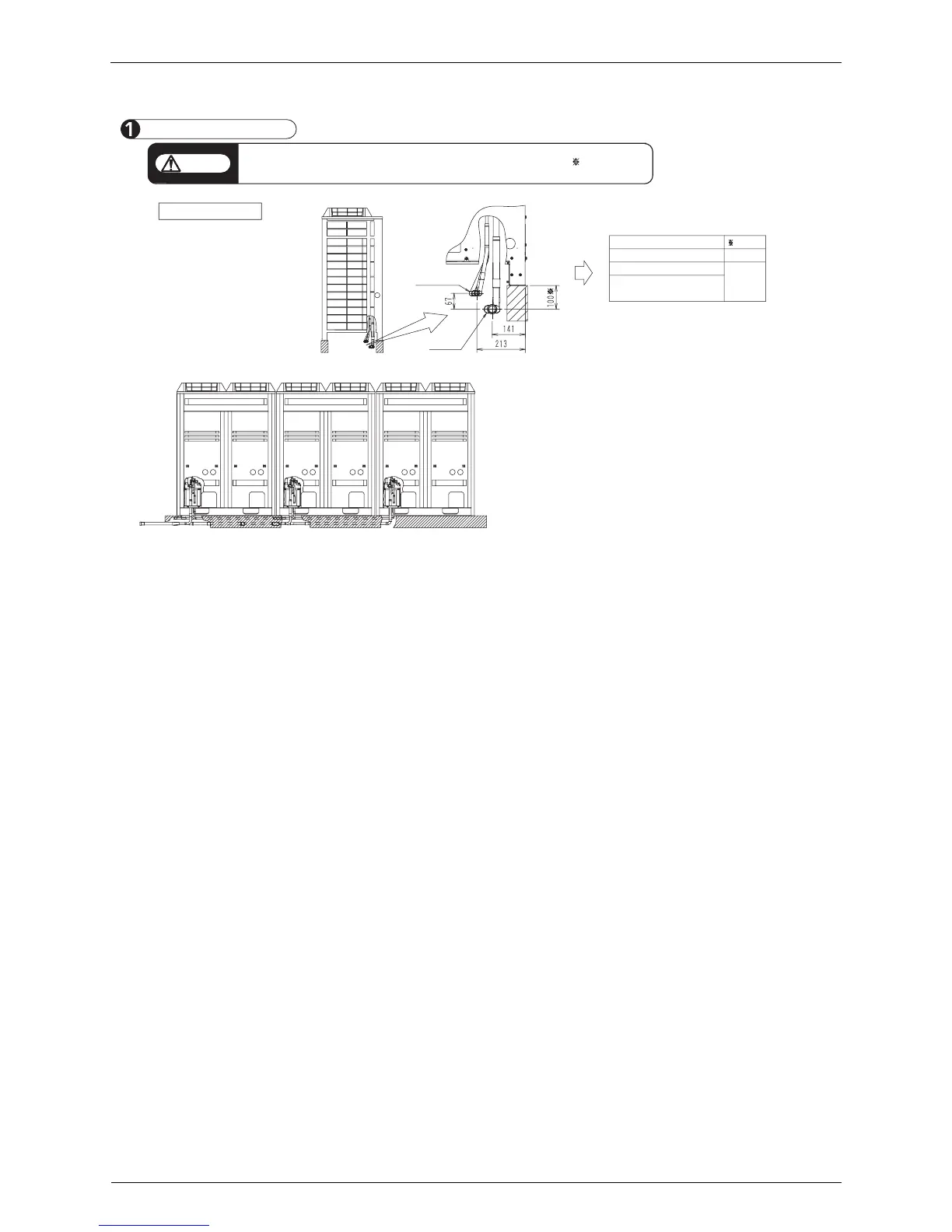

1-1 Exterior view
(Distance from the foundation leg floor)
Liquid pipe
Gas pipe
Separately-sold item also used
dimensions
Central drain pan kit 139
Vibration absorption stand
233
Vibration absorption stand +
central drain pan kit
To Next Page
