Main Functions SiBE041134
12 Function and Control
Drawing of
Inverter

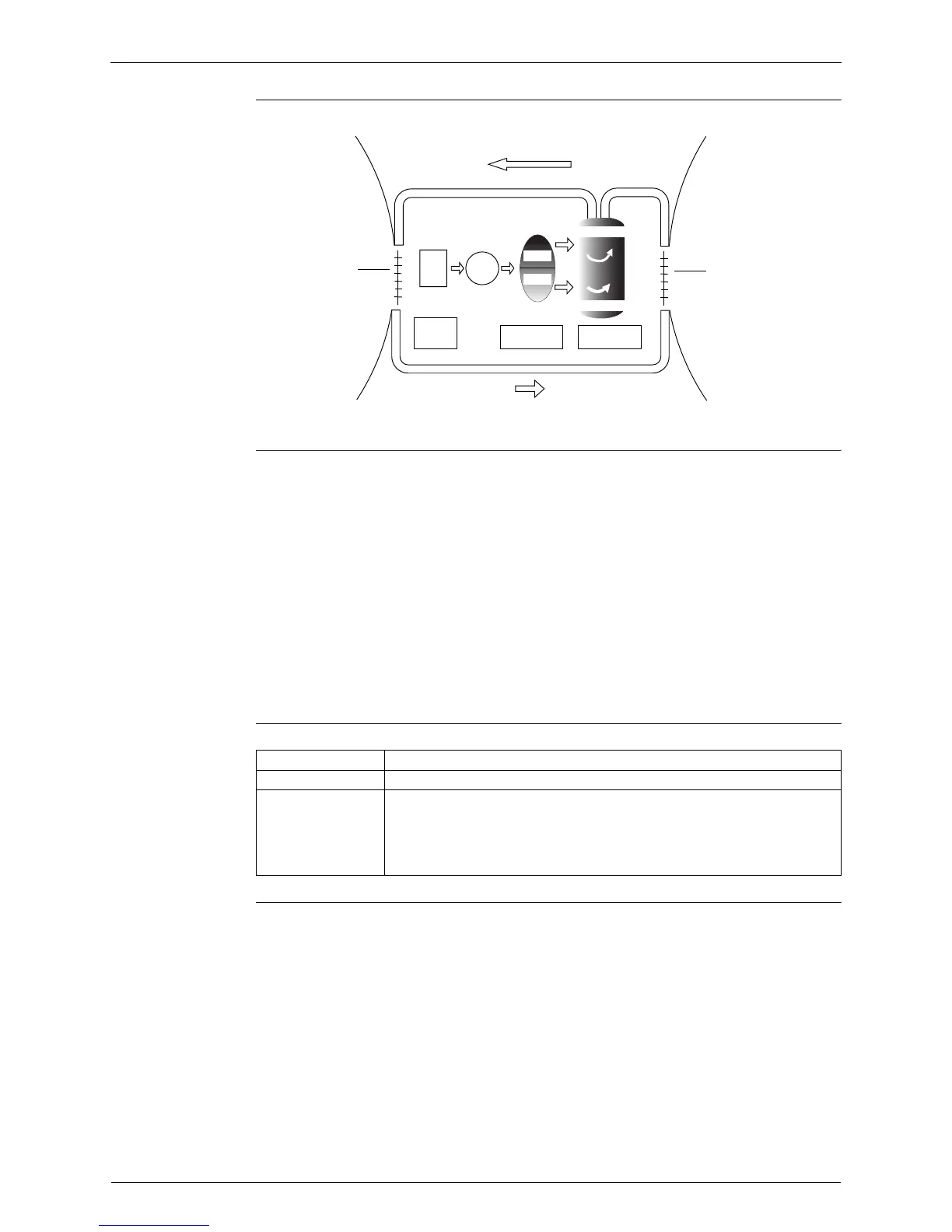

The following drawing shows a schematic view of the inverter principle:
Inverter Features The inverter provides the following features:
The regulating capacity can be changed according to the changes in the outdoor
temperature and cooling / heating load.
Quick heating and quick cooling
The compressor rotational speed is increased when starting the heating (or cooling). This
enables to reach the set temperature quickly.
Even during extreme cold weather, high capacity is achieved. It is maintained even when the
outdoor temperature is 2°C.
Comfortable air conditioning
A fine adjustment is integrated to keep the room temperature constant.
Energy saving heating and cooling
Once the set temperature is reached, the energy saving operation enables to maintain the
room temperature at low power.
Frequency Limits The following functions regulate the minimum and maximum frequency:
Forced Cooling
Operation
Refer to page 165 for detail.
Refrigerant circulation rate (high)
high f
low f
freq=variable
Refrigerant circulation rate (low)
high speed
low speed
(R2812)
Amount of heat
exchanged air (large)
freq=
constant
50 Hz
60 Hz
capacity=
variable
Amount of heat
exchanged air (small)
AC
power
DC
power
Amount of heat
exchanged air (large)
Amount of heat
exchanged air (small)
Frequency Functions
Low Four way valve operation compensation. Refer to page 27.
High Compressor protection function. Refer to page 28.
Discharge pipe temperature control. Refer to page 28.
Input current control. Refer to page 29.
Freeze-up protection control. Refer to page 30.
Heating peak-cut control. Refer to page 30.
Defrost control. Refer to page 32.
