Daikin RXS35G2V1B User Manual

Indoor Unit SiENBE04-808_A
165 Removal Procedure

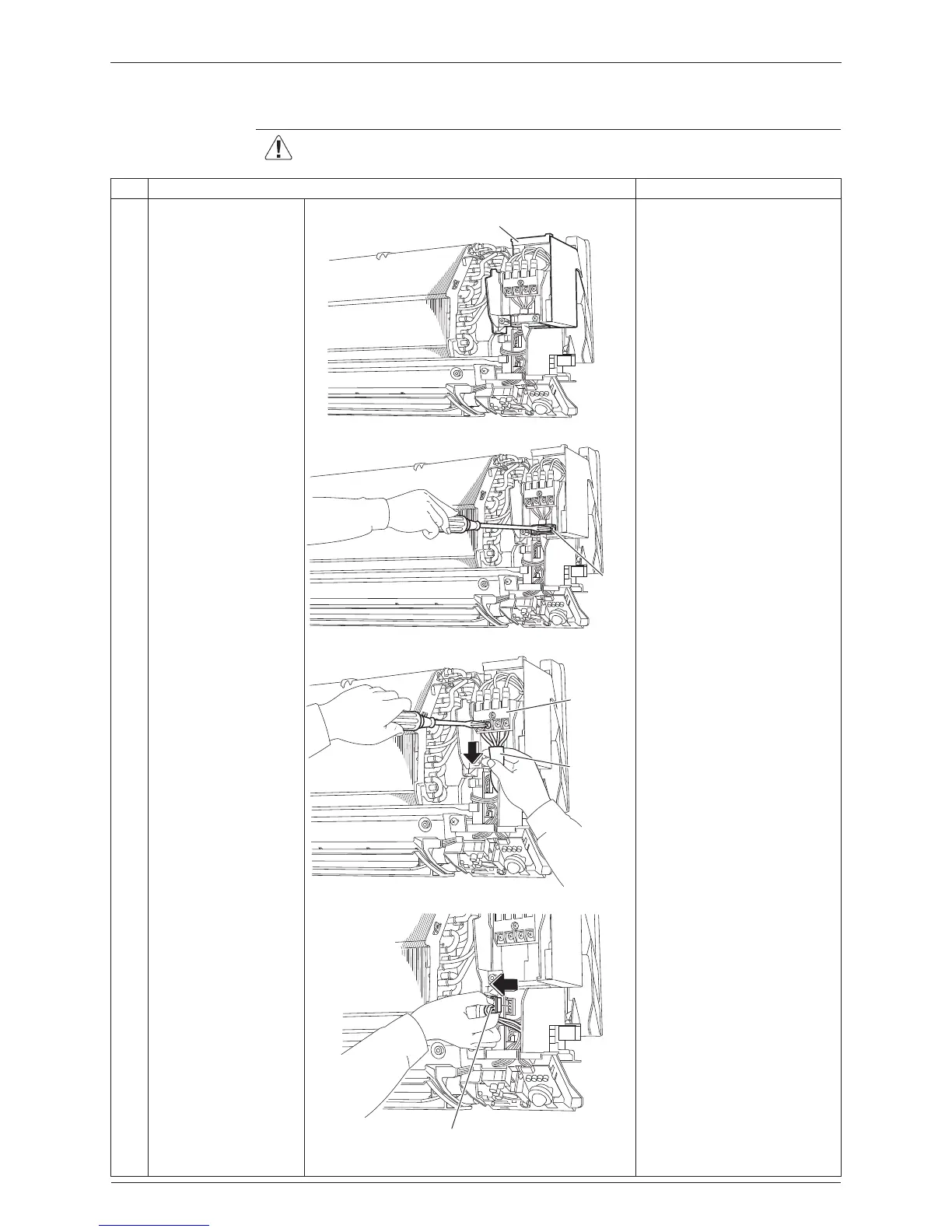

1.5 Removal of Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
The figure shows the
connections of wire
harnesses.
Preparation
 Remove the front grille
according to the “Removal
of Front Grille”.
2
Remove the screw of
the wire fixture.
3
Remove the screws on
the terminal board to
disconnect the
connecting wires.
4
Disconnect the
connector for fan motor
[S1].
(R7931)
Electrical box
(R7932)
Wire
fixture
(R7933)
Terminal
board
Connecting
wires
(R7934)
[S1]
SiENBE04-808_A.pdf 177 21/02/2011 13:20:05

Daikin RXS35G2V1B Specifications

General

Cooling Capacity	3.5 kW
Heating Capacity	4.0 kW
Outdoor Unit Noise Level	48 dB(A)
Indoor Unit Weight	9 kg
Type	Split System
Power Supply	220-240 V, 50 Hz
