Daikin RXS35G2V1B User Manual

SiENBE04-808_A Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B
Removal Procedure 270
5.3 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

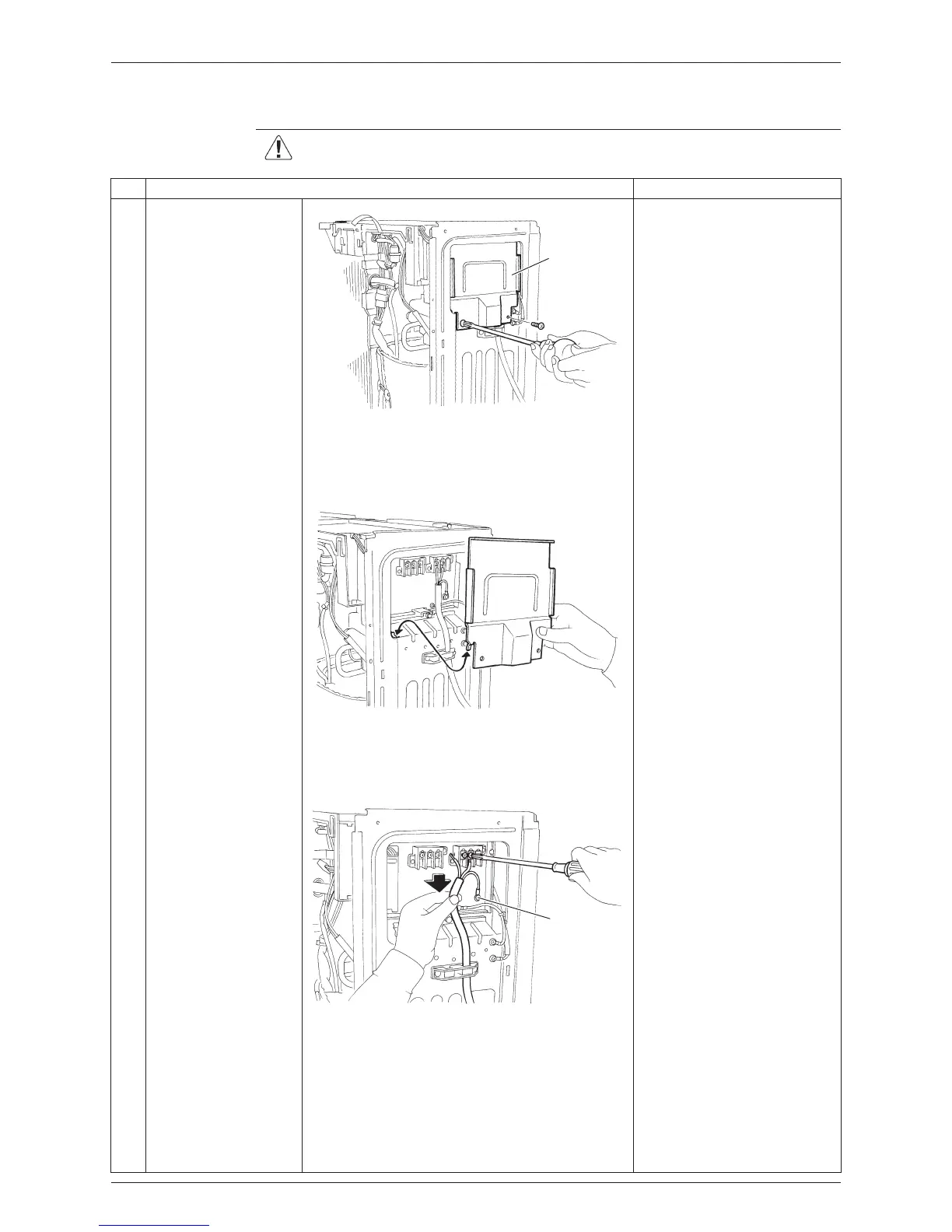

1
Remove the 2 screws
of the shield plate.
Preparation
 Remove the top panel and
the front panel according to
the “Removal of Outer
Panels”.
2
Slide the shield plate
upward to unfasten the
1 hook on the bottom
left, and then remove
the shield plate.
3
Disconnect the 2 power
supply cables and the 1
earth wire.
(R5266)
Shield
plate
(R5267)
(R5268)
Earth wire
