Daikin RXS50J2V1B User Manual

SiBE041101 Indoor Unit
Removal Procedure 138

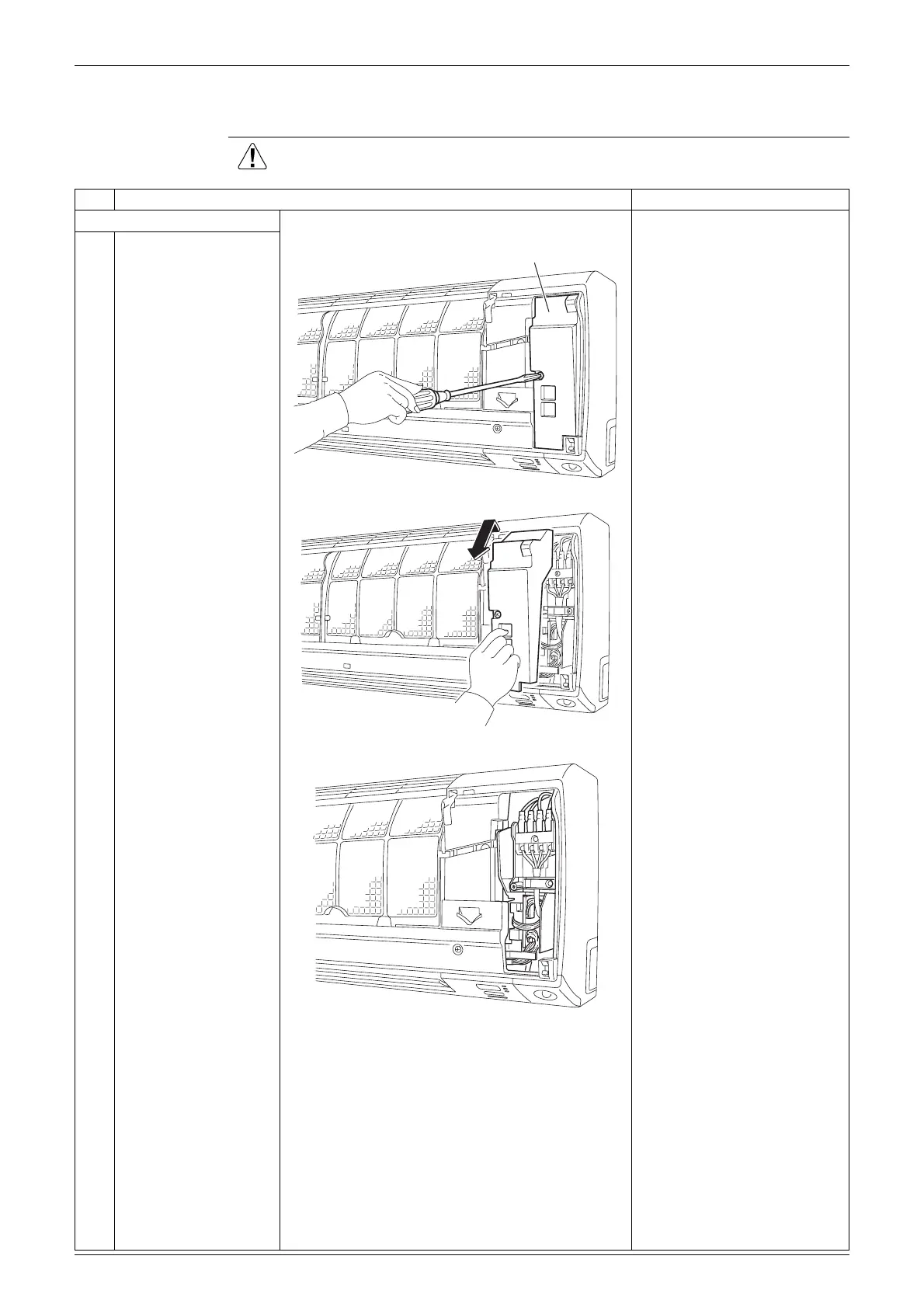

1.3 Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the service cover.
1
Remove the screw of
the service cover.
Preparation

Remove the front panel
according to the “Removal
of Front Panel”.
2
Pull out the service
cover diagonally down
in the direction of the
arrow.
3
The figure shows the
appearance of the
inside.
(R7911)
Service cover
(R8077)
(R7913)

Daikin RXS50J2V1B Specifications

General

Outdoor unit weight	48000 g
Outdoor units quantity	1
Outdoor unit noise level	48 dB
Outdoor unit dimensions (WxDxH)	825 x 300 x 735 mm
Type	Air conditioner outdoor unit
Compressor type	Rotary
Thermostat range	- °C
Hose length (max)	20 m
Refrigerating medium	R410A
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	5000 W
Heating capacity in watts (max)	6000 W
Cooling energy efficiency (EER, W/W)	3.55
Heating energy efficiency (COP, W/W)	3.7
Cooling airflow (indoor unit)	2934 m³/h
Heating airflow (indoor unit)	2586 m³/h
Power requirements	220-240V, 50Hz
Annual energy consumption	705 kWh
