SiBE041101 Indoor Unit
Removal Procedure 144
1.5 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

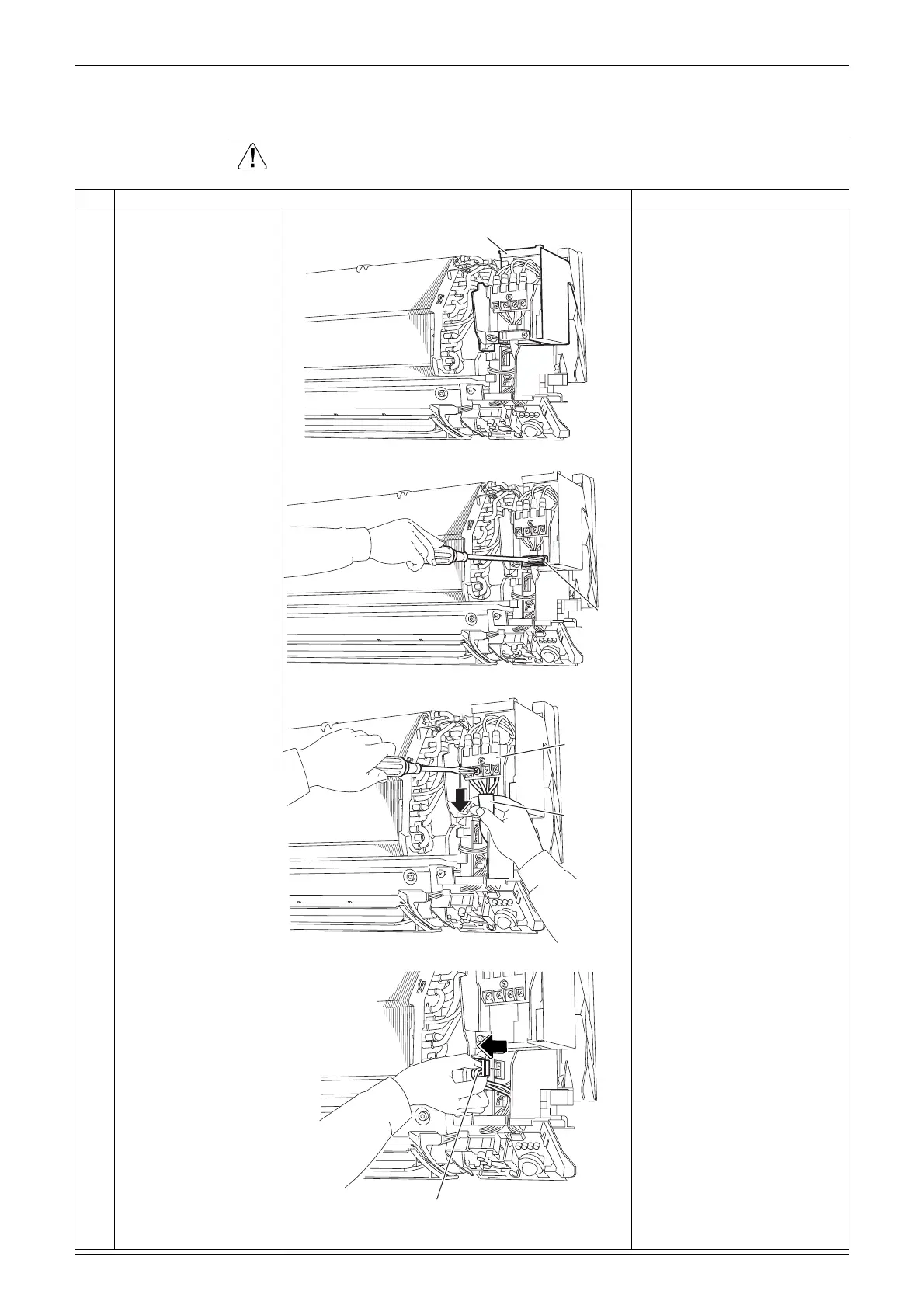

1
The figure shows the
connections of wire
harnesses.
Preparation
Remove the front grille
according to the “Removal
of Front Grille”.
2
Remove the screw of
the wire fixture.
3
Remove the screws on
the terminal board to
disconnect the
connecting wires.
4
Disconnect the
connector for fan motor
[S1].
(R7931)
Electrical box
(R7932)
Wire
fixture
(R7933)
Terminal
board
Connecting
wires
(R7934)
[S1]
