READ BEFORE OPERATION
Namesofparts
 RemoteController
3
8
10
9
11 4, 5, 6, 7
1
2

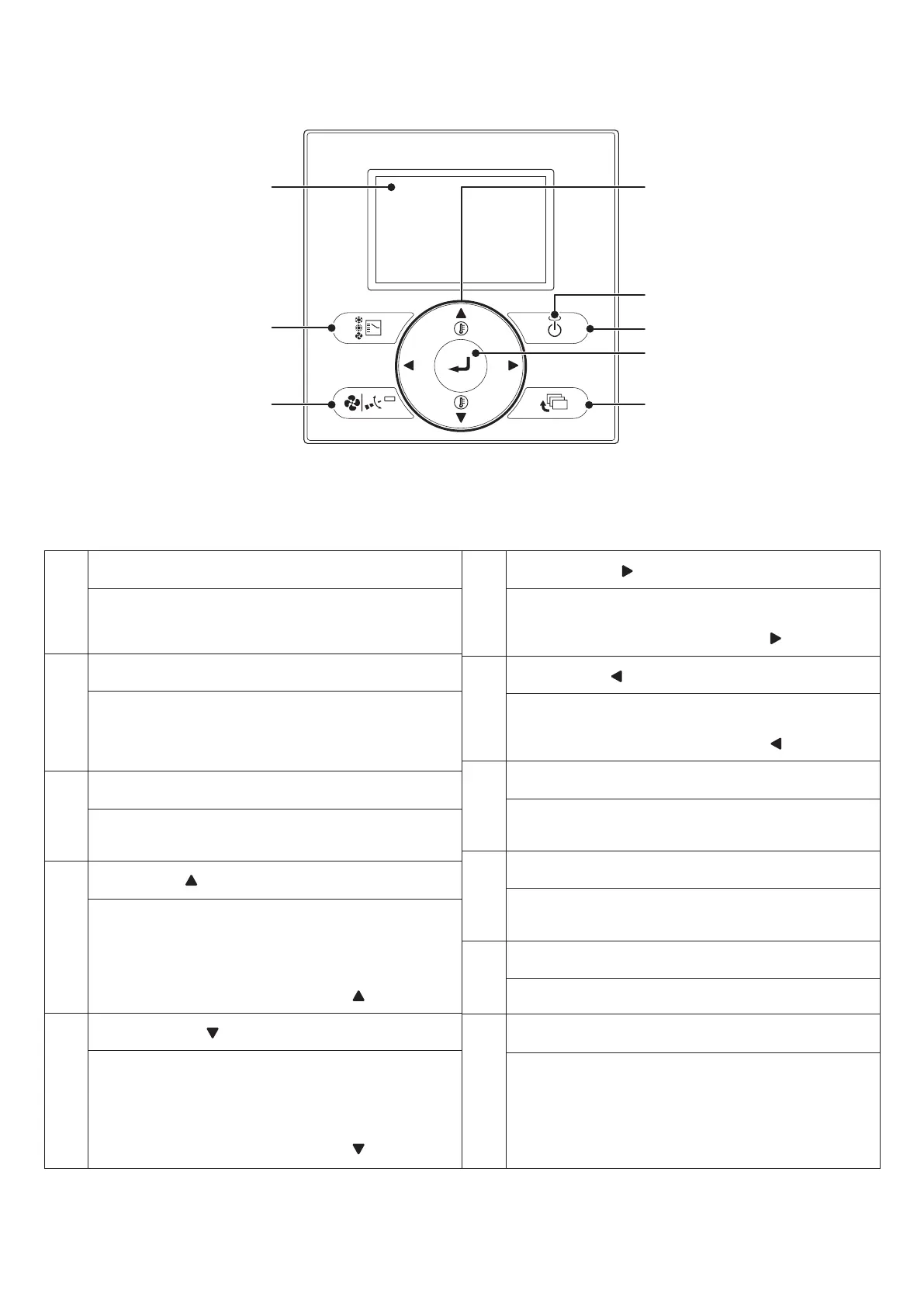

BRC1E62
NOTE:
This manual describe only for BRC1E62.
For other remote controllers, please see the operation manuals attached to them.
1
Mode Selector button
6
Right button “
”
• Used to highlight the next items on the right-hand side.
• Display contents are changed to next screen per page.
* Be sure to press the part with the symbol “
”
7
Left button “
”
• Used to highlight the next items on the left-hand side.
• Display contents are changed to previous screen per page.
* Be sure to press the part with the symbol “
”
8
ON/OFFbutton
• Press this button and system will start.
• Press this button again and system will stop.
9
Operationlamp(Green)
• This lamp lights up during operation.
• This lamp blinks if a malfunction occurs.
10
Cancel button
Used to return to the previous screen.
11
LCD(withbacklight)
• The backlight will be lit for approximately 30 seconds by
pressing any operation button. Press the button while the
backlight is lit. (Excluding the ON/OFF button)
• If 2 remote controllers are used to control a single indoor unit,
the backlight of the remote controller accessed rst will be lit.
Use to select the operation mode of your preference.
(Refertopage7-9.)
* Available modes vary with the connecting model.
2
AirowSettingbutton
Used to indicate the Airow Rate (Airow level/Fan Speed)/
Airow Direction screen. (Refertopage10.)
* Available fan speed and airow direction vary with the
connecting model.
3
Menu/Enterbutton
• Used to indicate the Main Menu.
• Used to enter the setting item selected.
4
Up button “
”
• Used to raise the set temperature.
• Use to highlight the item above the current selection.
(The highlighted items will be scrolled continuously when the
button is kept pressed.)
• Used to change the item selected.
* Be sure to press the part with the symbol “
”
5
Downbutton“
”
• Used to lower the set temperature.
• Use to highlight the item below the current selection.
(The highlighted items will be scrolled continuously when the
button is kept pressed.)
• Used to change the item selected.
* Be sure to press the part with the symbol “
”
