READ BEFORE OPERATION
Namesofparts
Installation site
• Installtheairconditionerinawell-ventilatedplacethatisfreeofobstructions
• Donotusetheairconditionerinthefollowingkindsofplaces:
a. Where there is considerable use of mineral oil such as cutting oil
b. Where there is much salt such as a beach area
c. Where there is sulphur gas such as in a hot-spring resort
d. Where there are considerable voltage uctuations such as a factory
e. Where there are motor vehicles or marine vessels
f. Where there is considerable atmospheric oil such as in cooking areas
g. Where there are machines generating electromagnetic radiation
h. Where the air contains acidic or alkaline steam or a vapour
• Protectionagainstsnow
For details, consult your dealer.
Regardingwiring
• Allwiringmustbeperformedbyanauthorizedelectrician.
Always consult your dealer about wiring. Never do it by yourself.
• Onlyusethededicatedpowersupplycircuitprovidedforthisairconditioner.
Also pay attention to operating noise.
• Selectthefollowingkindsoflocation:
a. A place that can sufciently withstand the weight of the air conditioner with less running noises and vibrations.
b. A place where warm airow from the air outlet of the outdoor unit and operating noise do not cause a nuisance to
neighbours.
• Be sure there are no obstructions near the air outlet of the outdoor unit.
• Obstructionsmayresultinpoorperformanceandincreasedoperatingnoise.
If abnormal noise occur, ask your dealer for advice.
Systemrelocation
• Consult your Daikin dealer about remodelling and relocation.
This operation manual is for the following systems with standard control. If your installation has a customized control
system, ask your Daikin dealer for the operation that corresponds your system.
BEFORE INSTALLATION, CONTACT YOUR DAIKIN DEALER TO CONFIRM YOUR SYSTEM TYPE.
The system provides 4 operation modes,
Operation modes
(Cooling), (Heating), (Dry) and (Fan).
ATTENTION:
• To protect the unit, turn on the main power switch 6 hours before operation.

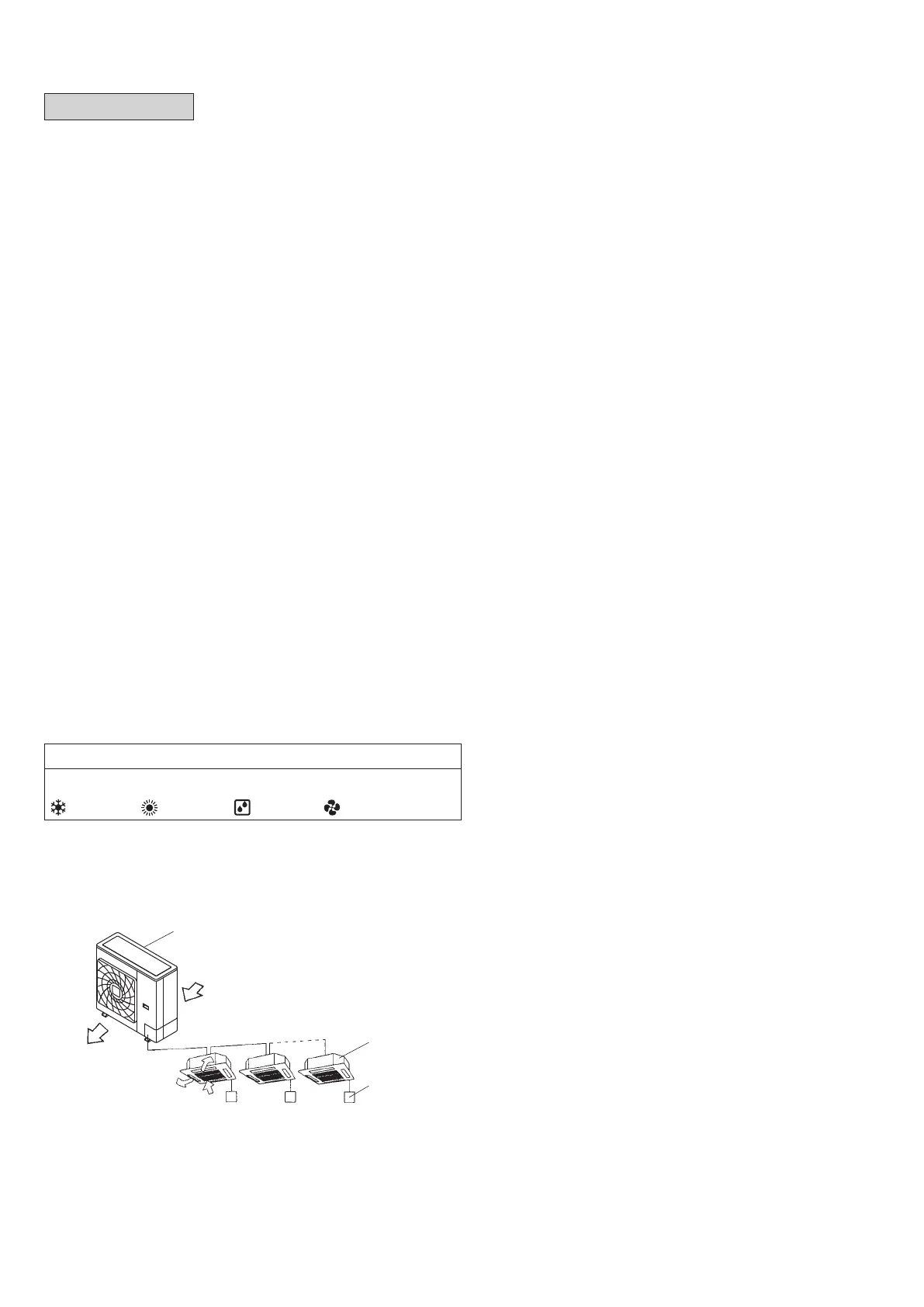

 System
Outdoor unit
Indoor unit
Remote controller
Air inlet
Air inlet
Air outlet
Air outlet
