Daikin RXYQ168TYDN - Method for Adding Refrigerant

27 3P362438-1B English
14.3. Method for adding refrigerant

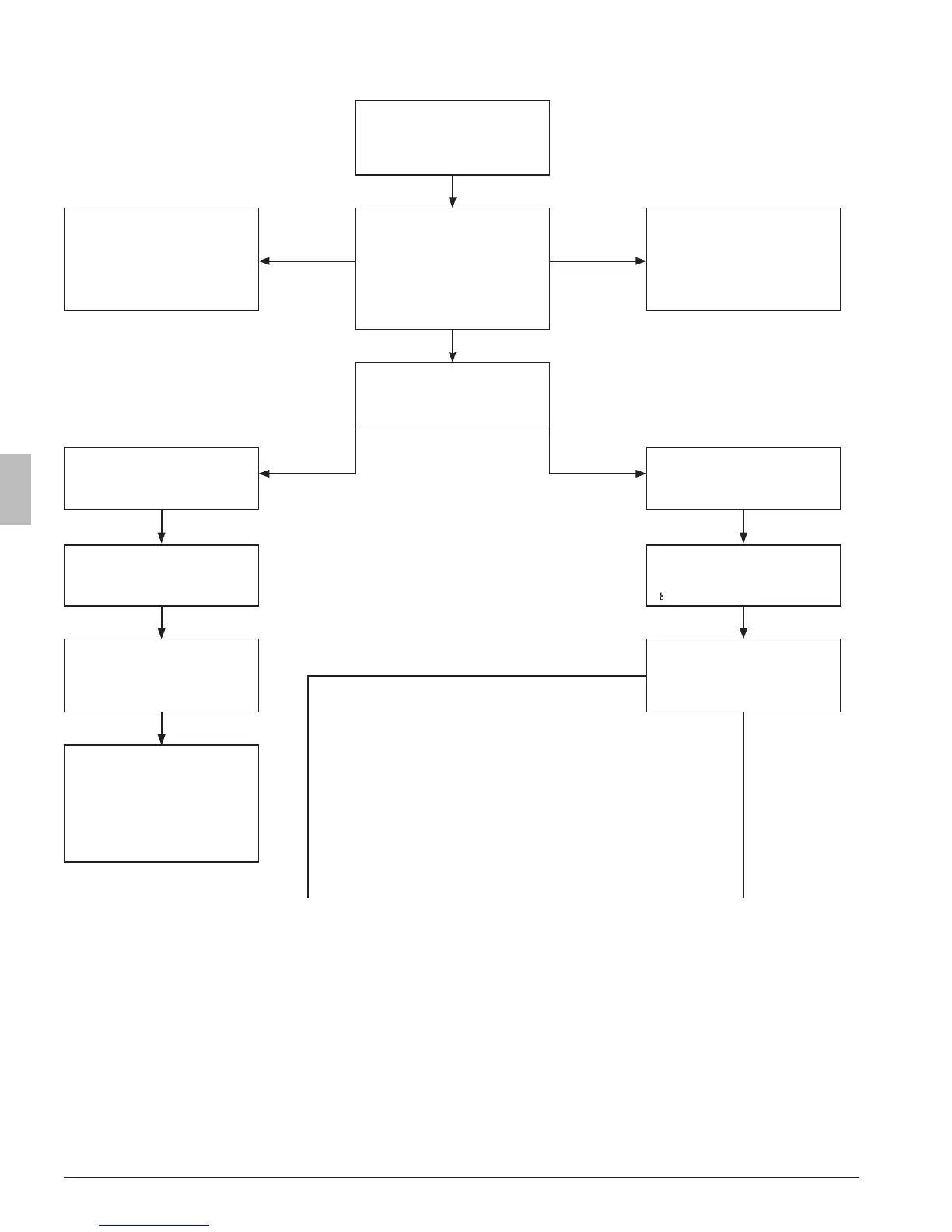

14.3.1. Flow chart
Step 1
• Calculate additional refrigerant
charge amount: R(lbs.(kg)) (see
14.2. Calculating the additional
refrigerant charge on page26)
Refrigerant overcharge happened
• Recover refrigerant to reach
R=Q
• Go to step 4a.
R<Q
Step 2+3
• Open valve C to eld piping via liquid
stop valve.
• Execute pre-charging amount:
Q (lbs.(kg)).
• Close valve C if no additional refrig-
erant can be charged.
R=Q
Step 4a
• Close valve C.
• Charging is nished.
• Fill in the amount on the additional
refrigerant charge label.
• Go to test run (see 15.4. Test opera-
tion on page38).
R<Q
You want to execute automatic
refrigerant charge?
B A
Step 4b+5
Manual refrigerant charging method (in
cooling operation)
NO YES
Step 4b+5
Automatic refrigerant charging method
Step 6B
Activate eld setting [2-20]=1
Unit will start manual refrigerant charg-
ing operation.
Step 6A
• Push 1x BS2: 888
• Push BS2 for more than 5 seconds
01 pressure equalization.
Step 6B
• Open valve A.
• Charge remaining amount of refrig-
erant P (lbs.(kg))
R=Q+P
Depending on ambient conditions, the
unit will decide to perform autocharge
operation in heating or cooling mode.
Step 6B
• Close valve A.
• Push BS3 to stop manual charging.
• Charging is nished.
• Fill in the amount on the additional
refrigerant charge label.
• Go to test run (see 15.4. Test opera-
tion on page38).
Continued on next page >> Continued on next page >>
