SiBE18-821_C Outdoor Unit
Removal Procedure 441
13 Disconnect the
connectors [X66A]
[X81A] [X5A].
14 Disconnect the reactor
lead wire connectors,
compressor lead wire
connector, and all the
other connectors from
the main PCB. [X22A]
[X21A] [X13A] [X11A]
[X12A] [X18A] [X17A]
[X32A] [X25A] [X26A]
[X27A] [X28A]
îš„
Refer to page 28 for detail.
Step
Procedure Points

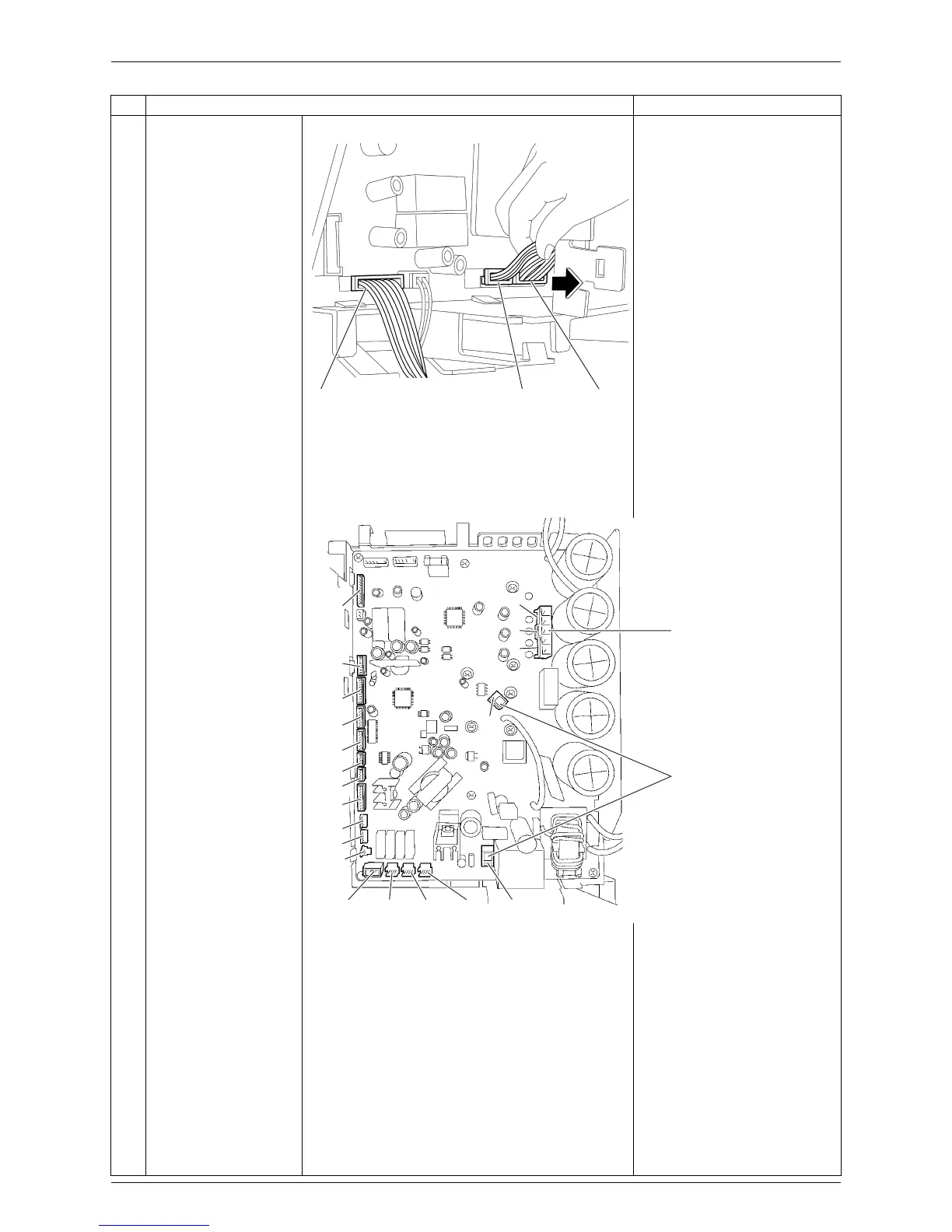

[X66A] [X81A] [X5A]
(R12970)
X66A
X81A
X5A
X22A
X21A
X13A
X11A
X18A
X17A
X32A
X25A X26A X27A X28A LD
LE
U
V
W
X12A
(R12971)
Compressor lead
wire connector
Reactor lead
wire connectors
