Daikin Super Multi Plus E-Series RMXS160E8V1B - BP Unit Removal

Outdoor Unit SiBE18-821_C
442 Removal Procedure

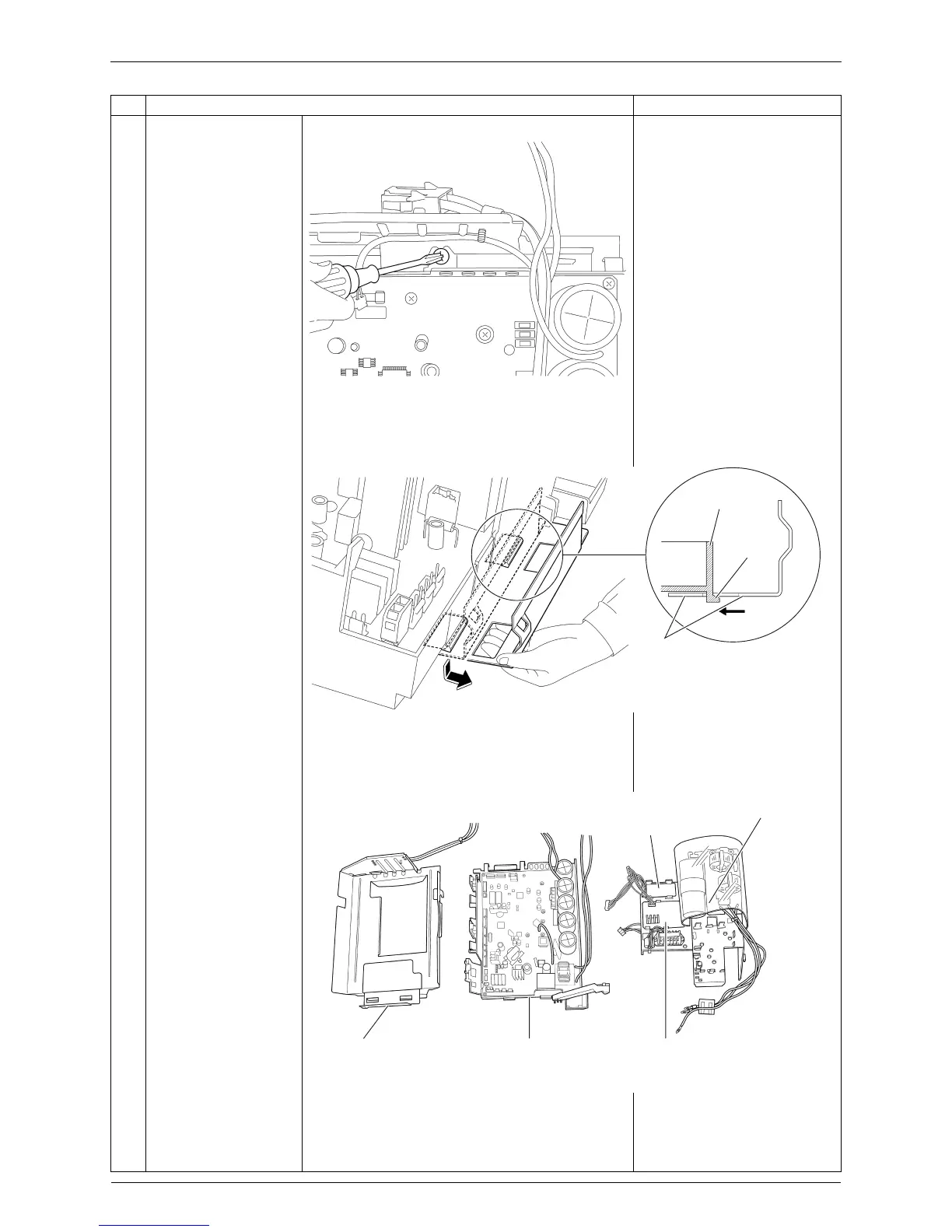

15 Remove the screw at
the top of the electrical
component assembly.

M4(2) × 12
16 Unfasten the 2 hooks at
the rear side.
17 The figures in the right
are PCB assembly.

Refer to page 28, 29 for
detail.
Step
Procedure Points
(R9238)
Hook
(R12972)
Fixing plate for the
PCB
Electrical component
mounting plate
Cool / heat selector
PCB (A4P)
(R12973)
Service PCB
(A2P)
Noise filter PCB
(A3P)
Electrical component
mounting plate
Main PCB (A1P)
(for control)
