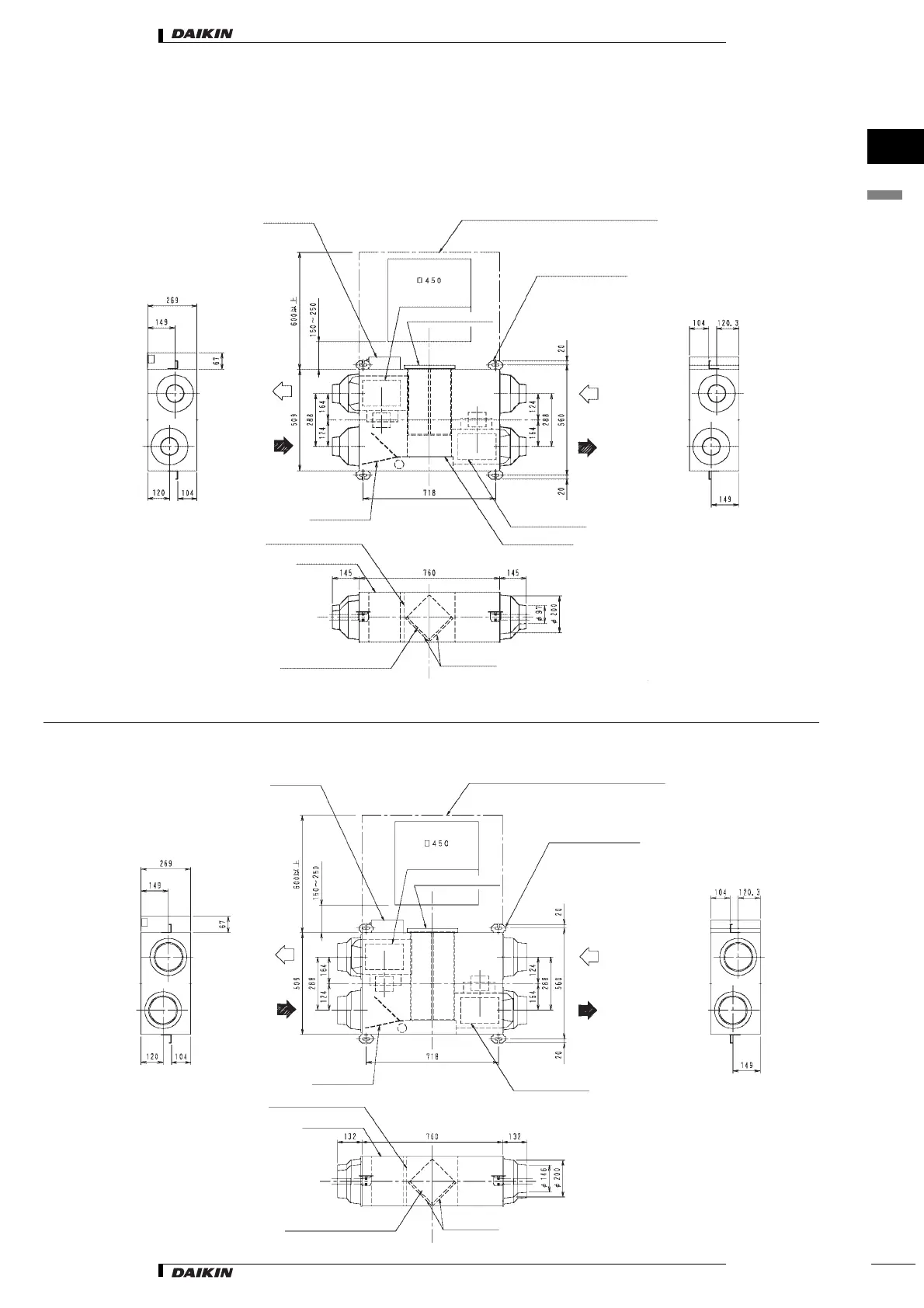

7-4 Dimensions
VAM150FA
VAM250FA
Switch box
Maintenance space for the heat exchange elements,
the air filters and fans
Ceiling hook
4-14x40 oval hole
Inspection hole
Supply air fan
Maintenance cover
SA
RA
Supply air to room
Return air from room
Damper plate
(Maintenance cover)
(Switch box)
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
Exhaust air fan
Element spacer
Air filters
Heat exchange elements
Remark)
Be sure to provide the inspection hole (450 x 450 mm)
to inspect the air filters, the exchange elements and fans.
3D036757
Switch box
Inspection hole
Maintenance space for the heat exchange elements,
the air filters and fans
Ceiling hook
4-14x40 oval hole
Supply air fan
Maintenance cover
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
SA
RA
Supply air to room
Return air from room
Damper plate
(Maintenance cover)
(Switch box)
Exhaust air fan
Air filters
Heat exchange elements
Remark)
Be sure to provide the inspection hole (450 x 450 mm)
to inspect the air filters, the exchange elements and fans.
3D036758
