•HRV•VAM-FA8VE
• HRV • Heat Reclaim Ventilation
90
1
7
7 Product Specification)

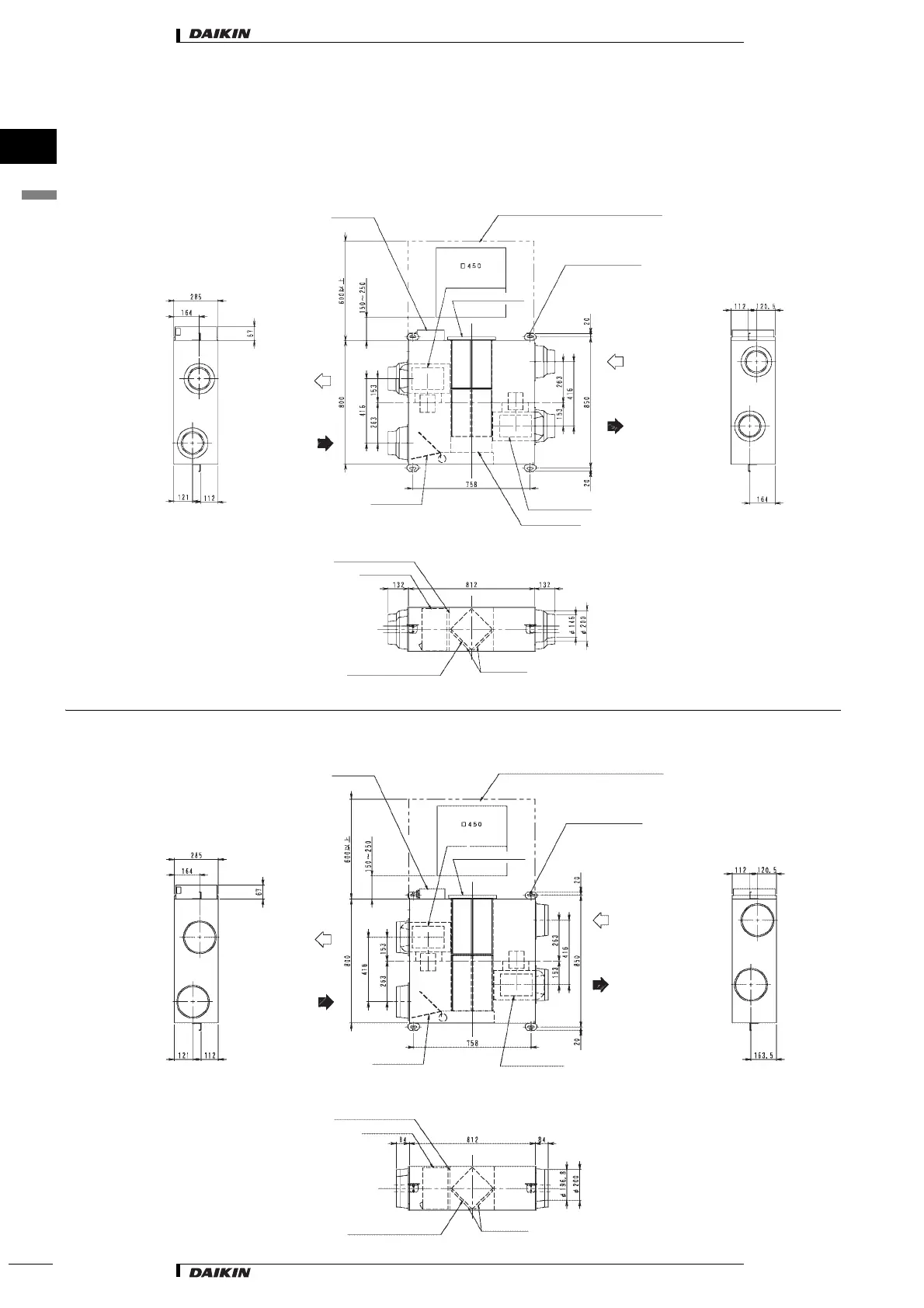

7-4 Dimensions
VAM350FA
VAM500FA
Switch box
Maintenance space for the heat exchange elements,
the air filters and fans
Ceiling hook
4-14x40 oval hole
Inspection hole
Supply air fan
Maintenance cover
SA
RA
Supply air to room
Return air from room
OA
Fresh air from outdoors
(Outdoor air)
EA
Exhaust air to outdoors
Exhaust air fan
Element spacer
Damper plate
(Maintenance cover)
(Switch box)
Heat exchange elements
Air filters
Remark)
Be sure to provide the inspection hole (450 x 450 mm)
to inspect the air filters, the exchange elements and fans.
3D036759
Switch box
Maintenance space for the heat exchange elements,
the air filters and fans
Ceiling hook
4-14x40 oval hole
Inspection hole
Supply air fan
Maintenance cover
SA
RA
Supply air to room
Return air from room
Damper plate
Exhaust air fan
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
Air filters
Heat exchange elements
(Maintenance cover)
(Switch box)
Remark)
Be sure to provide the inspection hole (450 x 450 mm)
to inspect the air filters, the exchange elements and fans.
3D036760
