•HRV•VAM-FA8VE
1
7
7 Product Specification)

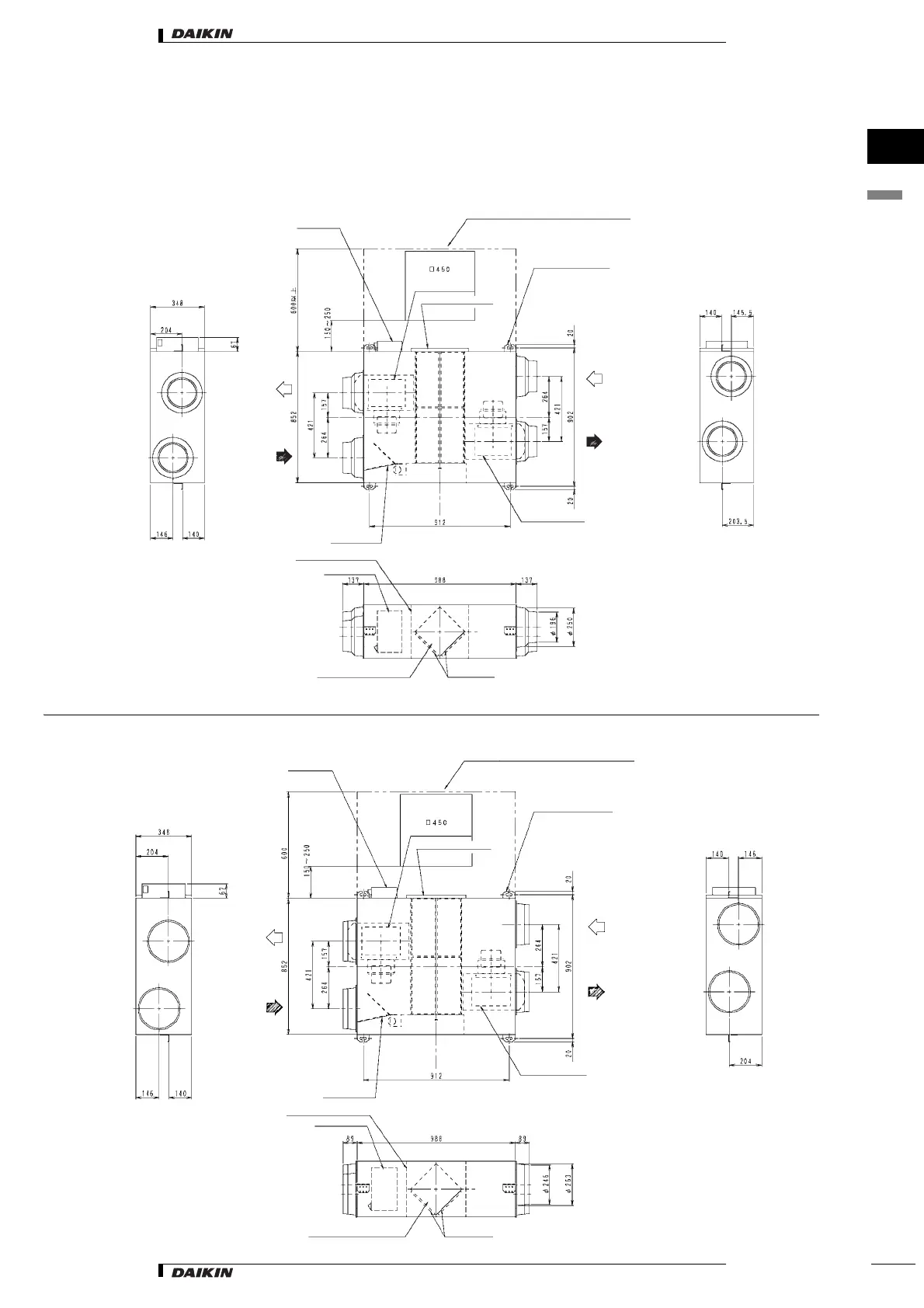

7-4 Dimensions
VAM650FA
VAM800FA
Switch box
Inspection hole
Maintenance space for the heat exchange elements,
the air filters and fans
Ceiling hook
4-14x40 oval hole
Supply air fan
Maintenance cover
SA
RA
Supply air to room
Return air from room
Damper plate
(Maintenance cover)
(Switch box)
Exhaust air fan
OA
EA
Fresh air from outdoors
(Outdoor air)
Exhaust air to outdoors
Air filters
Heat exchange elements
Remark)
Be sure to provide the inspection hole (450 x 450 mm)
to inspect the air filters, the exchange elements and fans.
3D036761
Maintenance space for the heat
exchange elements, the air filters and fans
Ceiling hook
4-14X40 oval hole
Inspection
hole
Supply air fan
Maintenance cover
SA
Supply air
to room
RA
Return air
from room
Damper plate
Exhaust air fan
EA
Exhaust air to outdoors
(Switch box)
Heat exchange elements Air filters
Remark)
Be sure to provide the inspection hole
(450 x 450 mm) to inspect the air filters,
the exchange elements and fans.
(Maintenance cover)
Switch box
OA
Fresh air from outdoor
(Outdoor air)
3D036762
