18 | Piping installation
Installer and user reference guide
101
RXYSA8~12AMY1B
VRV 5-S system air conditioner
4P752782-1A – 2024.02

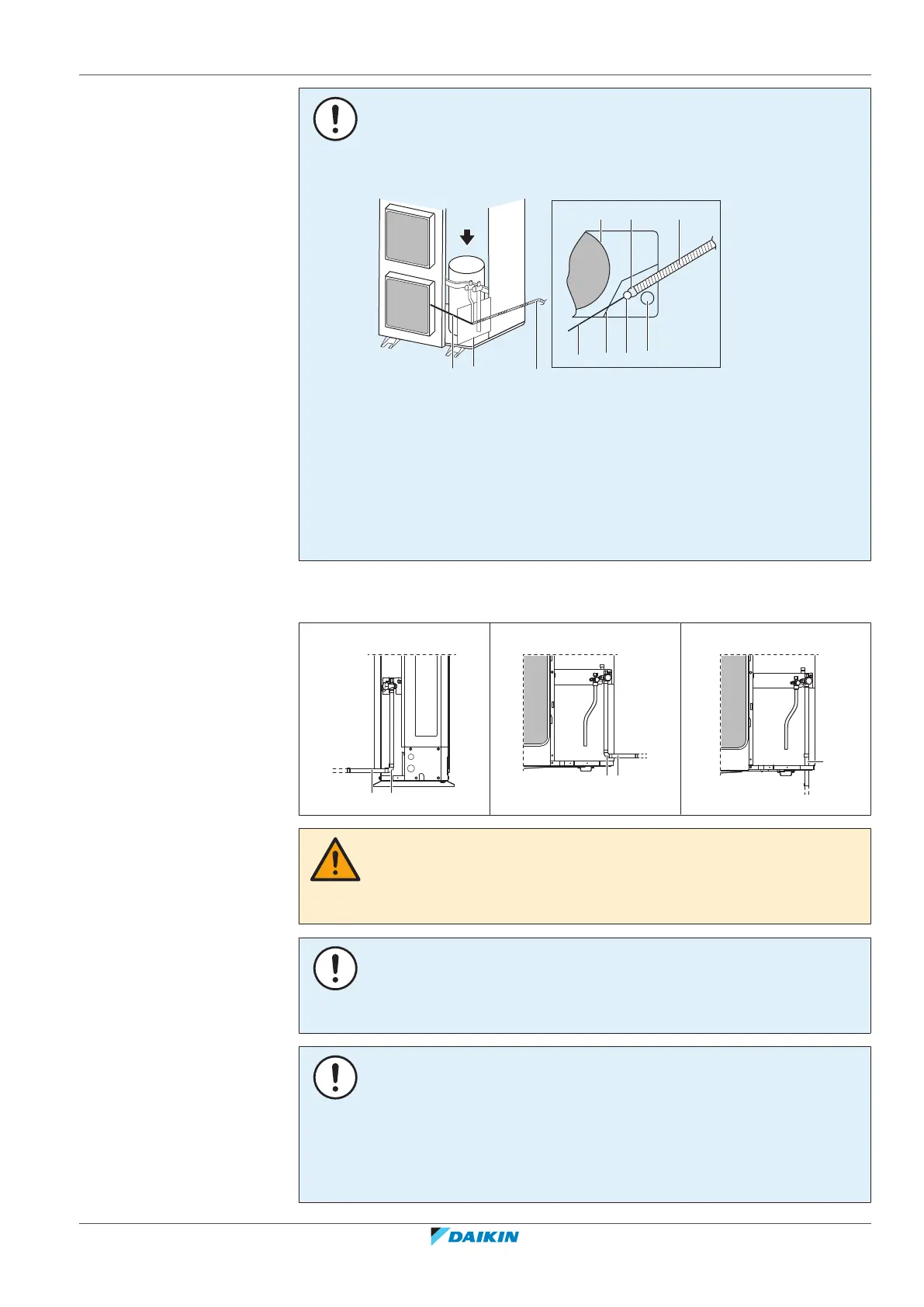

NOTICE
When brazing: First braze the liquid side piping, then the gas side piping. Enter the
electrode from the front of the unit and the welding torch from the right side to
braze with the flames facing outside and avoid the compressor sound insulation and
other piping.
a b c
a b f g
cde
A
A
a Electrode
b Burning-resistant plate
c Welding torch
d Flames
e Compressor sound insulation
f Liquid side piping
g Gas side piping
▪ Connect the gas piping accessories c and d (d: only for 10 HP). There are
three possibilities:
To the front
cd
To the side
c d
Downwards
d
WARNING
Provide adequate measures to prevent that the unit can be used as a shelter by small
animals. Small animals that make contact with electrical parts can cause
malfunctions, smoke or fire.
NOTICE
Make sure to open the stop valves after installing the refrigerant piping and
performing vacuum drying. Running the system with the stop valves closed may
break the compressor.
NOTICE
▪ Be sure to use the supplied accessory pipes when carrying out piping work in the
field.
▪ Be sure that the field installed piping does not touch other pipes, the bottom
panel or side panel. Especially for the bottom and side connection, be sure to
protect the piping with suitable insulation, to prevent it from coming into contact
with the casing.
