17 | Unit installation
Installer and user reference guide
84
RXYSA8~12AMY1B
VRV 5-S system air conditioner
4P752782-1A – 2024.02
2× 3×
8 HP 10+12 HP

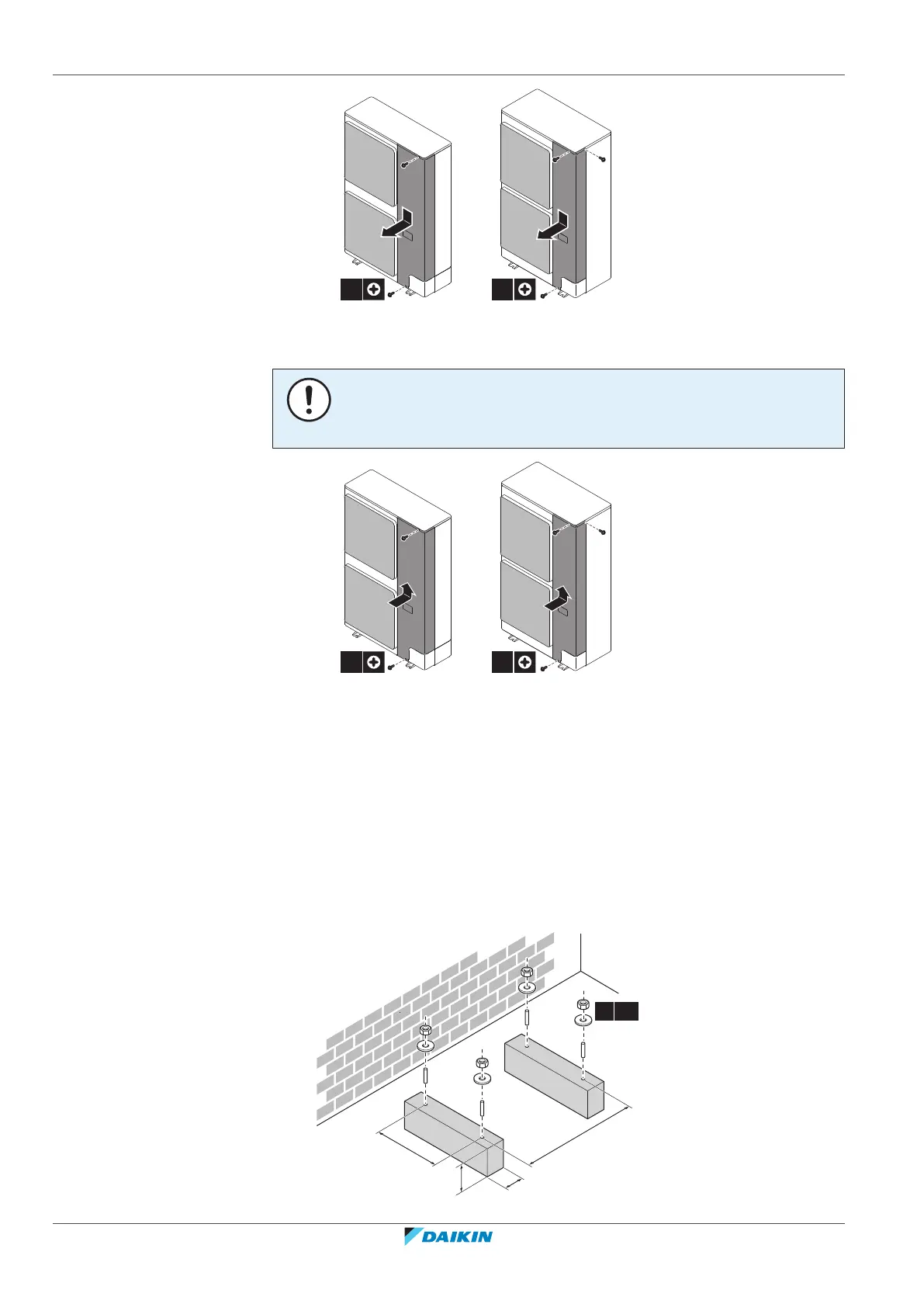

17.2.3 To close the outdoor unit
NOTICE
When closing the outdoor unit cover, make sure that the tightening torque does NOT
exceed 4.1N•m.
2× 3×
8 HP 10+12 HP
17.3 Mounting the outdoor unit
17.3.1 To provide the installation structure
Check the strength and level of the installation ground so that the unit will not
cause any operating vibration or noise.
Fix the unit securely by means of foundation bolts in accordance with the
foundation drawing.
Prepare four sets of anchor bolts, nuts, and washers (field supply) as follows:
[mm]
>150
620
8 HP: 350 (345~355)
10+12 HP: 490 (485~495)
4×
M12
a
