Daikin VRVII - Page 192

Troubleshooting by Indication on the Remote Controller
187

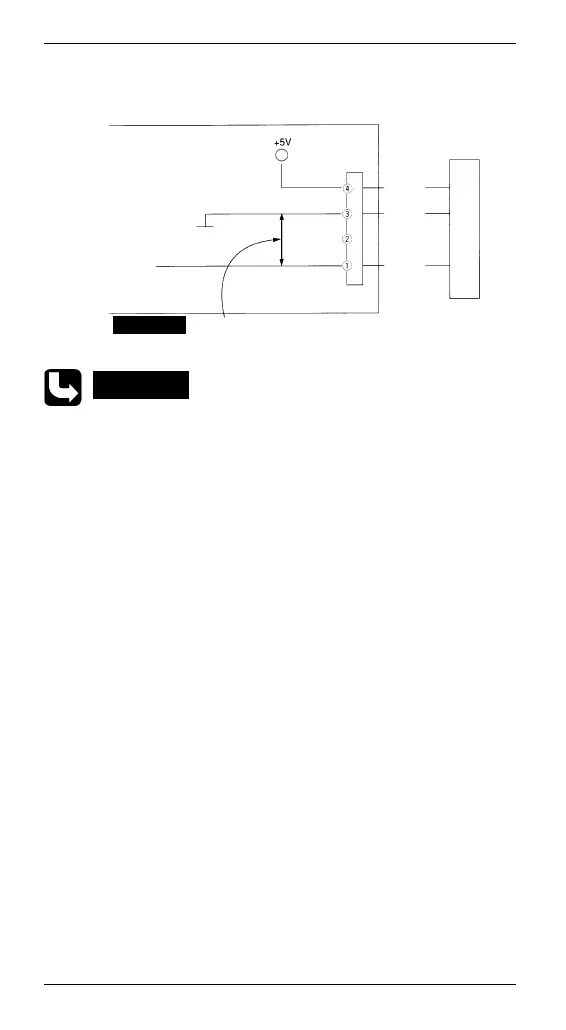

∗1: Voltage measurement point
Refer to P.372.
Outdoor (outside)
unit PCB
GND
Micro-computer
A/D input
Measure DC voltage here.
Red
Black
White
High pressure sensor
Connector for
high pressure
sensor
CHECK 12
CHECK 12
