High-static Pressure Parvis Split Type
Note: This chart is based on 24000Btu/h type. So, a little differences may exist on the outlook and functions fromyours.

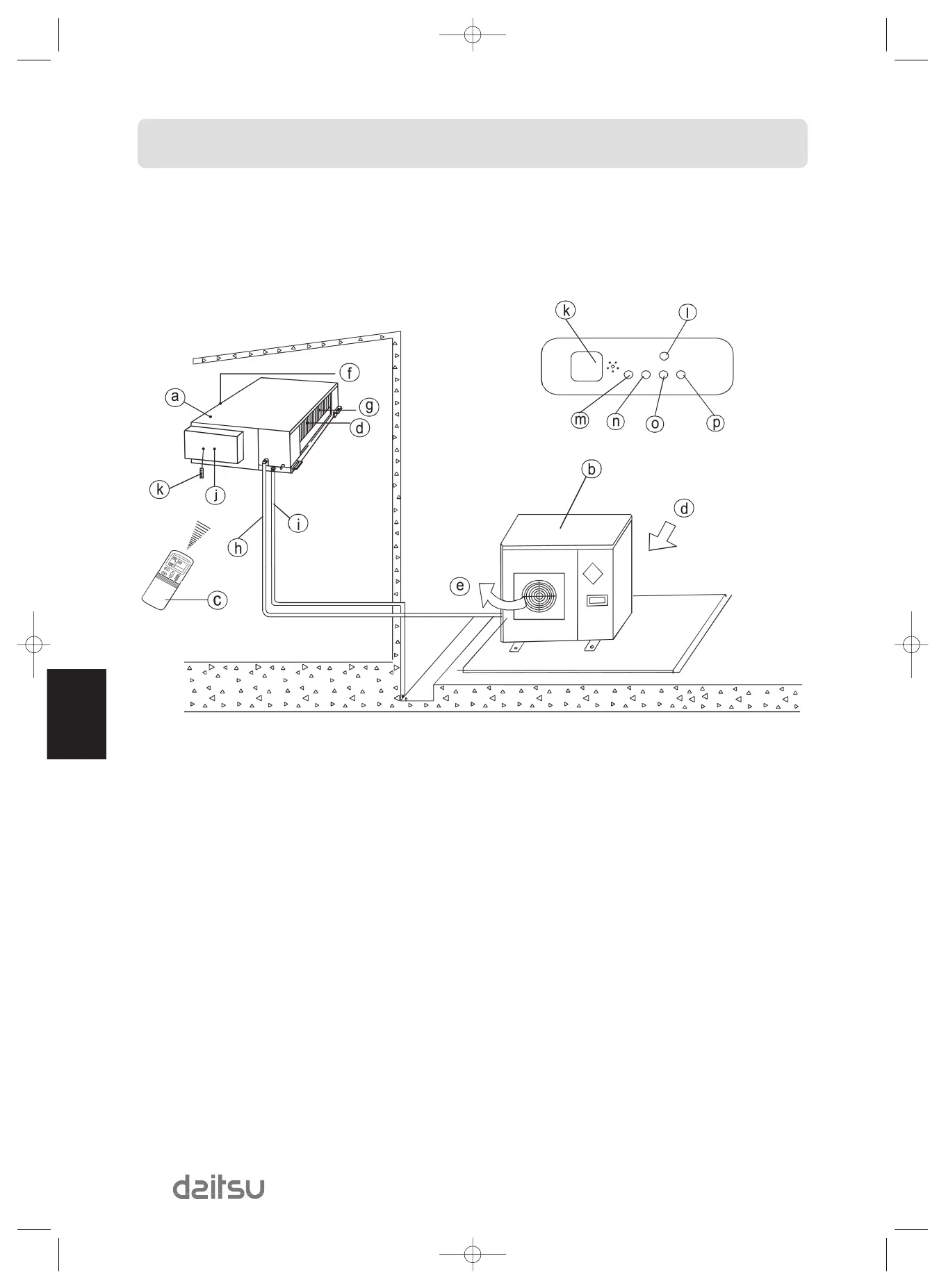

Names and functions
a- Indoor unit
b- Outdoor unit
c- Remote controller
d- Air-in
e- Air-out
f- Air-out
g- Heat exchanger
h- Connecting pipe
i- Drain hose
j- E-Box
k- Infrared signal receiver
l- Temporary button
m- Operation lamp
n- PRE-DEF indicator (cooling and heating type) or fan only
indicator (cooling only type)
o- Timer indicator
p- Alarmindicator
PARTS NAMES
