We recommend unpacking your DALI KORE speakers
near where you intend to use them. DALI KORE
speakers are fi ed with transit wheels to make it
easier to move them around. The transit wheels
should remain fi ed until the speakers are in their fi nal
working positions. Section 4 describes how to position
your speakers.

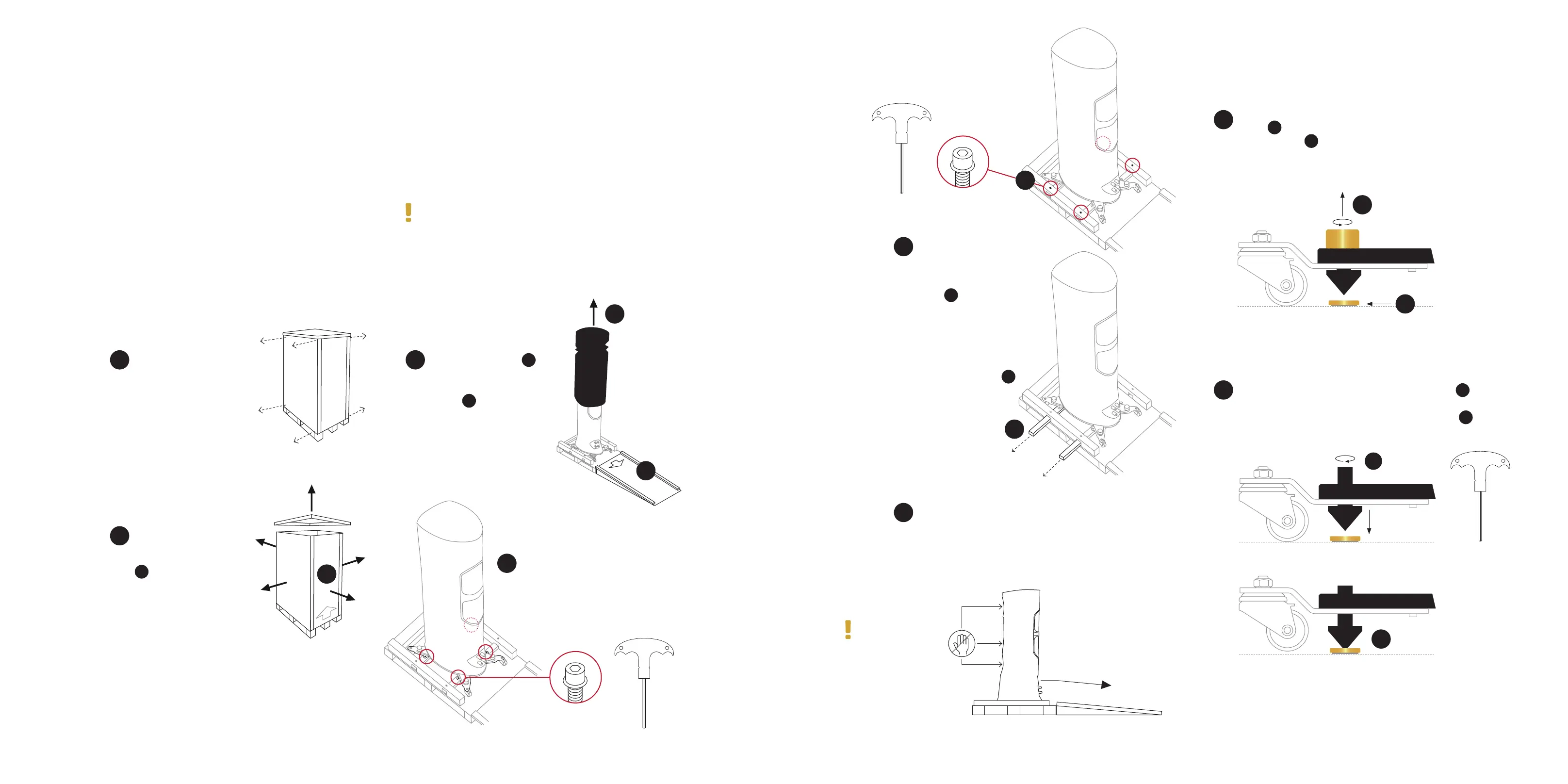

3. Unpacking your speakers
Remove the screws at
the top and bo om of
the shipping crate.
Remove the top and
sides of the shipping
crate. The rear panel
A
of the crate will be
used as a ramp.
Position the ramp
A
behind the speaker.
Remove the protective
cover
B
.
Using the 6 mm Allen key,
unscrew and remove the
four M8 bolts securing the
speaker to the bo om of
the crate.
A
1
2
3
4
Unpacking and installing your DALI KORE speakers
should be carried out by a minimum of two people.
If you need assistance with the installation,
please contact your local DALI dealer.
DALI KORE Manual
4
A
B
B
A
B
A
5 mm
6 mm
Carefully roll the speaker
down the ramp. Once your
DALI KORE speaker is
unpacked from its shipping
crate, you can push it into its
listening position.
Position the magnetic spike feet underneath each
spike
A
then unscrew and remove the golden
thumbscrew
B
located above the spikes.
Using the same 6 mm
Allen key, loosen the
four M8 bolts holding
the restraining
bars
A
so that the
speaker is lowered
onto the transit
wheels. Then remove
the four bolts entirely
and withdraw the two
restraining bars
B
.
Use the 5 mm Allen key to lower the spikes
A
until the transit wheels are raised from the fl oor
and the speaker is supported on the spikes
B
.
Avoid touching
the drivers.
5
6
7
8
5DALI KORE Manual
