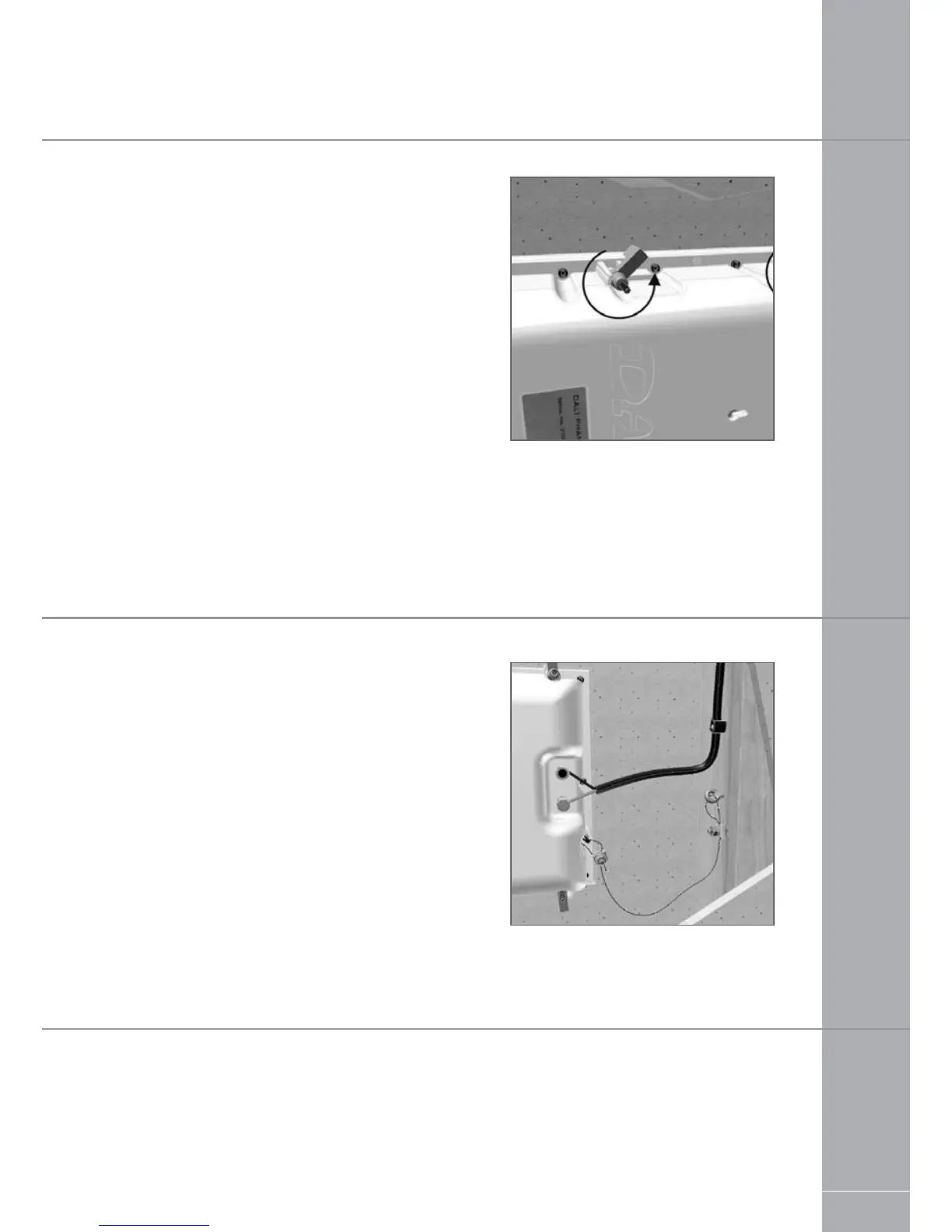

DOGLEGS
DALI PHANTOM VOKAL incorporates dogleg brack-
ets for wall or ceiling mounting. The brackets attach
the loudspeaker firmly to the rear of the surface on
which it is mounted. They extend out at a 90-degree
angle when the screws are tightened. The screws
should be tightened so that the loudspeaker sits
securely in place – but be careful not to tighten them
too much. If you need to remove the loudspeaker,
loosen the screws approximately 5 to 10 turns coun
-
terclockwise and the brackets will loosen their grip.
Do not unscrew more than 5 to 10 turns or the
bracket may fall off the screws.
CONNECTION OF CABLES
Connect cables so that the loudspeaker is in correct phase. The red (+) loudspeaker terminal must
be connected to the red (+) amplifier terminal. The black (-) loudspeaker terminal must be con
-
nected to the black (-) amplifier terminal.
DROP WIRE
Steel wire, max 30cm/10” drop
DALI PHANTOM VOKAL must be fitted with a drop
wire to prevent the speaker from falling in the event
of fire, earthquake, etc. To prevent injury or damage
from a fall, fit a steel wire or other non-flammable
connection between a solid support in the house
(ceiling beam, wall stud, etc.) and the eyehook on
the PHANTOM VOKAL as shown.
