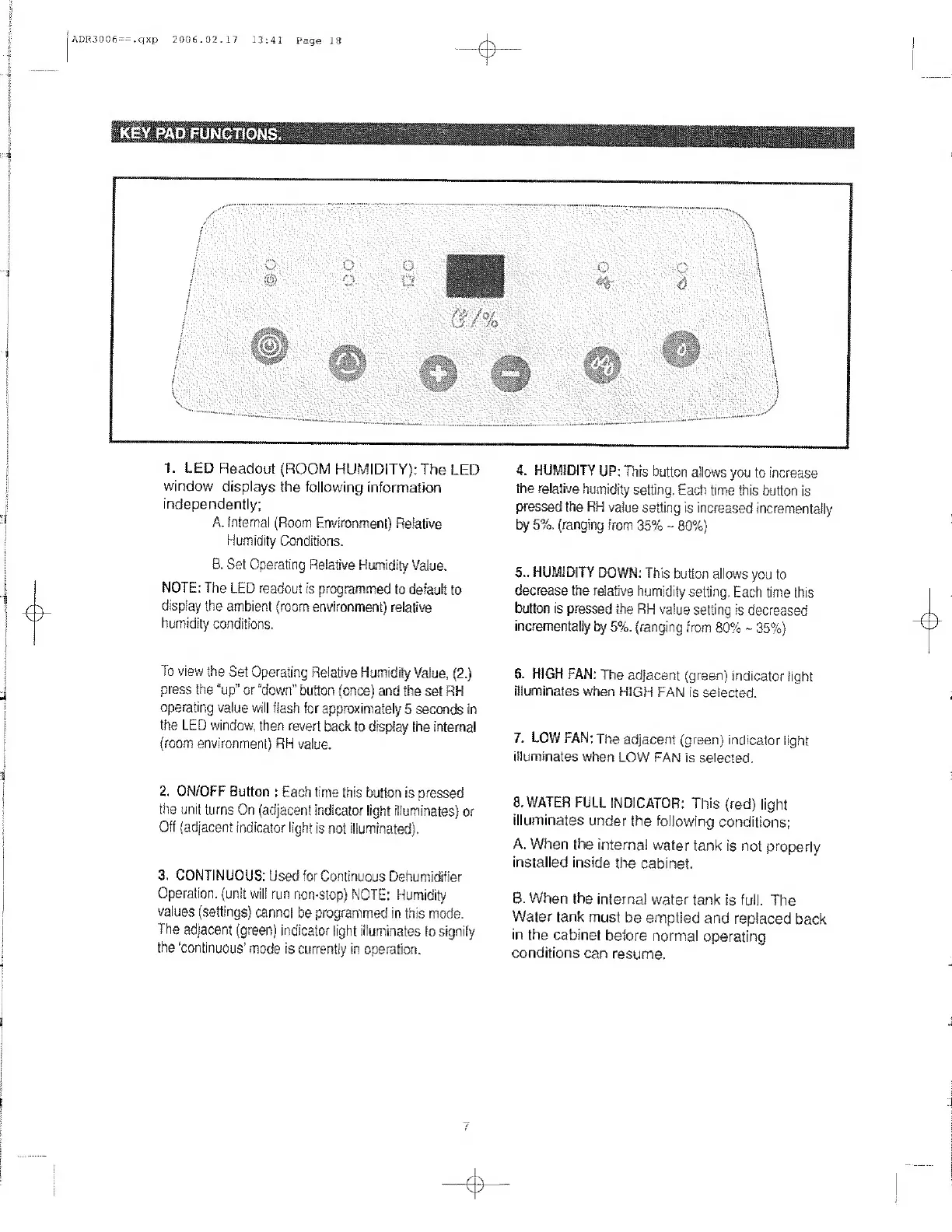

Danby DDR4007EE - Key Pad Functions

1. L ED Readout (ROOM HUMIDITY): The LED
window displays the following information
independently;
A. internal (Room Environment) Relative
Humidity Conditions.
B. Set Operating Relative Humidib/ Vdue.
NOTE: The LED readout is programmed to default to
display the ambient (room environment) relative
humidity conditions.
4. HUMIDITY UP: This button allows you to increase
the relative humidity setting. Each time this button is
pressed the RH value setting is increased incrementally
by 5%. (ranging from 35% ~ 80%)
5.. HUMIDITY DOWN: This button allows you to
decrease the relative humidify setting. Each time this
button is pressed the RH value setting is decreased
incrementally by 5%. (ranging from 80% ~ 35%)
To view the Set Operating Relative Humidity Value, (2.)
press the “up” or “down" button (once) and the set RH
operating value will flash for approximately 5 seconds in
the LED window, then revert back to display the internal
(room environment) RH value.
2. ON/OFF Button : Each time this button is pressed
the unit turns On (adjacent indicator light illuminates) or
Off (adjacent indicator light is not illuminated).
3, CONTINUOUS: Used for Continuous Dehumidifier
Operation, (unit will run non-stop) NOTE: Humidity
values (settings) cannot be programmed In this mode,
The adjacent (green) indicator light illuminates to signify
the 'continuous’ mode is currently in operation.
6. HIGH FAN; The adjacent (green) indicator light
illuminates when HIGH FAN is selected.
7. LOW FAN: The adjacent (green) indicator light
illuminates when LOW FAN is selected.
8. WATER FULL INDICATOR: This (red) light
illuminates under the following conditions:
A. When the internal water tank is not properly
installed inside the cabinet.
B. When the internal wafer tank is full. The
Water tank must be emptied and replaced back
in the cabinet before normal operating
conditions can resume.
