Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
22
Locomotive/Vehicle function decoder from firmware version 3.12

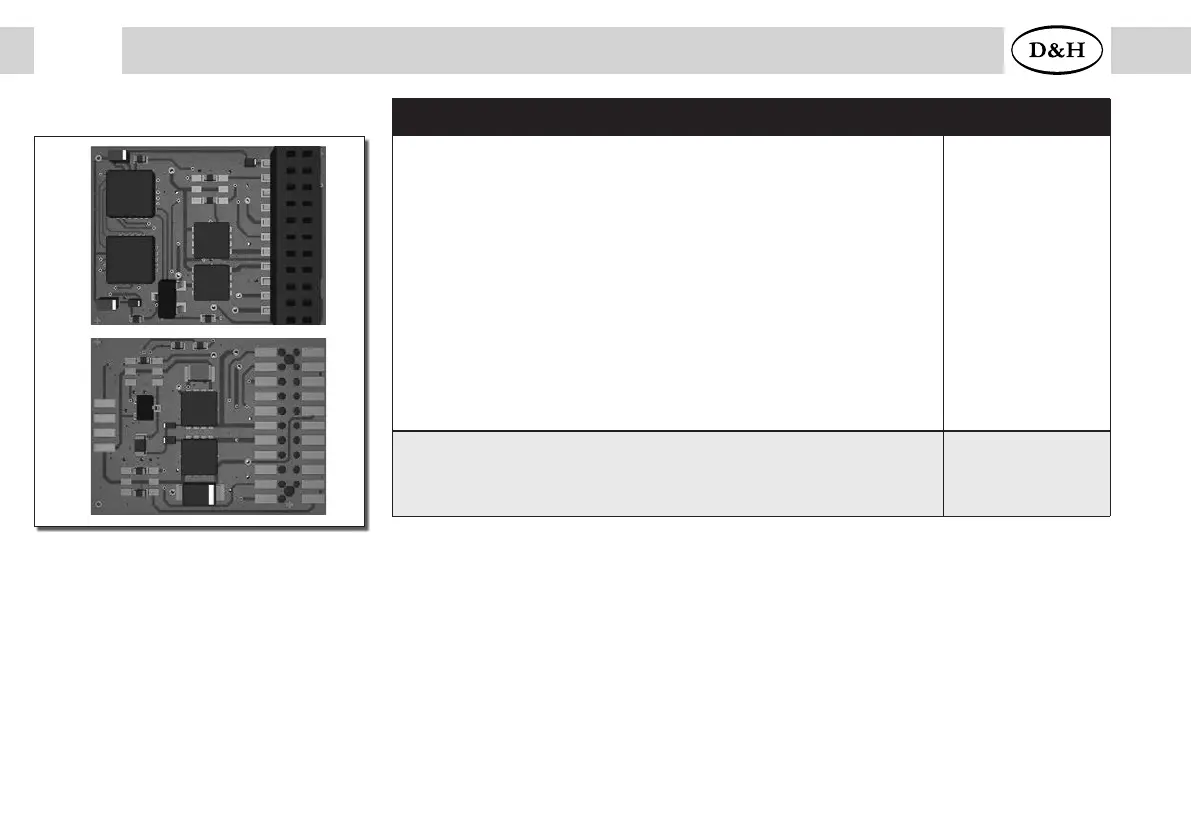

DH21B-5
Specifications DH21B-5
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
Function outputs: AUX7, AUX8
With SUSI interface
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
unamplified *)
unamplified *)
unamplified *)
X
Connecting option
21 pin socket board for direct plugging
(NEM660/RCN-121)
DH21B-5
*) Unamplified function outputs: See supplement 3.
ZVS
ZCLK
ZDAT
GND
