D&H DH18A - Page 30

30
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
30
Locomotive/Vehicle function decoder from firmware version 3.12

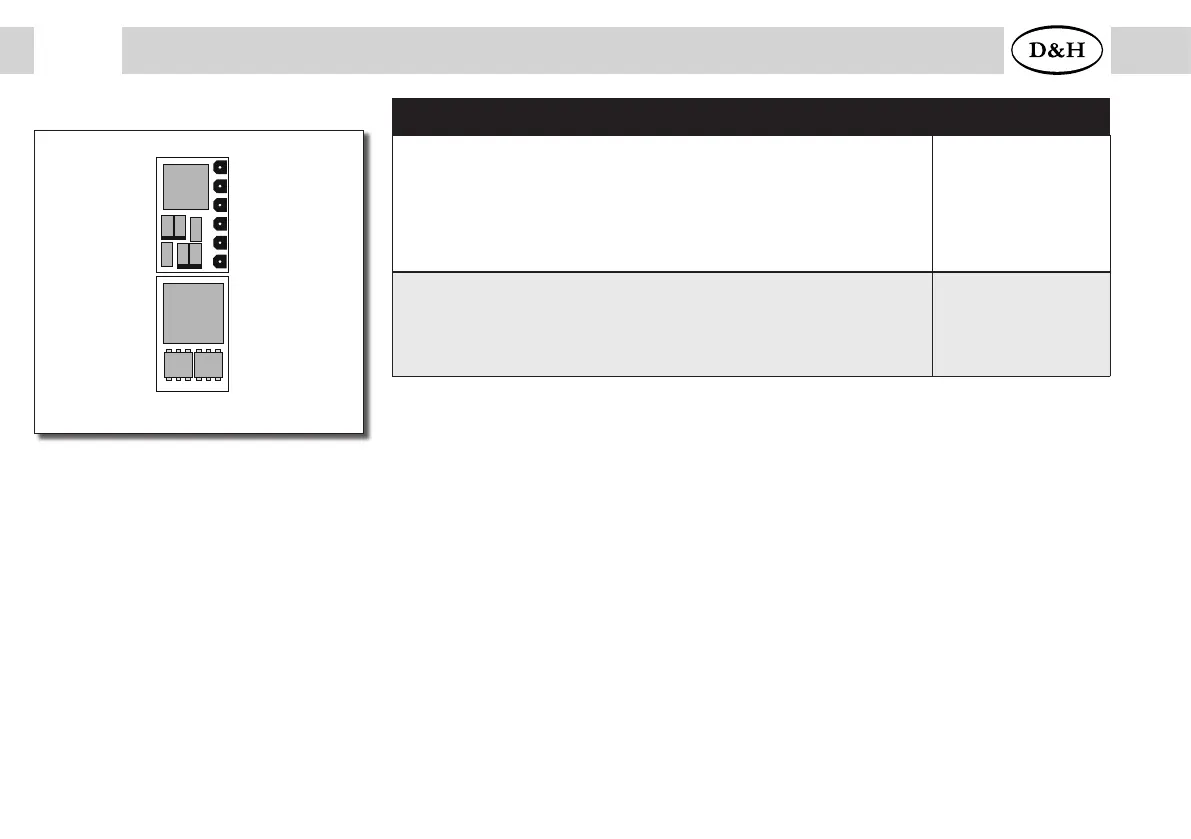

M1
M2
G1
G2
LV
LR
PD05A (1
st
generation)
Specifications PD05A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
5,0 x 7,9 x 2,5
0,5 A
0,5 A
18 V
each 150 mA
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
PD05A-0
PD05A-1
PD05A-3
M1, M2 .......Motor connection 1, 2
G1, G2 ........ Track connection 1, 2
LV, LR .........Front light, rear light (each 150 mA)
There is no connection possibility (VS) for the common return conductor (blue wire) or a buffer capacitor.
