Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
31
Locomotive/Vehicle function decoder from firmware version 3.12
Specifications PD05A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
5,2 x 8,0 x 2,5
0,5 A
0,5 A
30 V
each 150 mA
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
6 pin connector for direct plugging (NEM651)
PD05A-0
PD05A-1
PD05A-3
PD05A-4
M1, M2 .......Motor connection 1, 2
G1, G2 ........ Track connection 1, 2
LV, LR .........Front light, rear light (each 150 mA)
VS ...............Supply voltage
GND ...........Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).

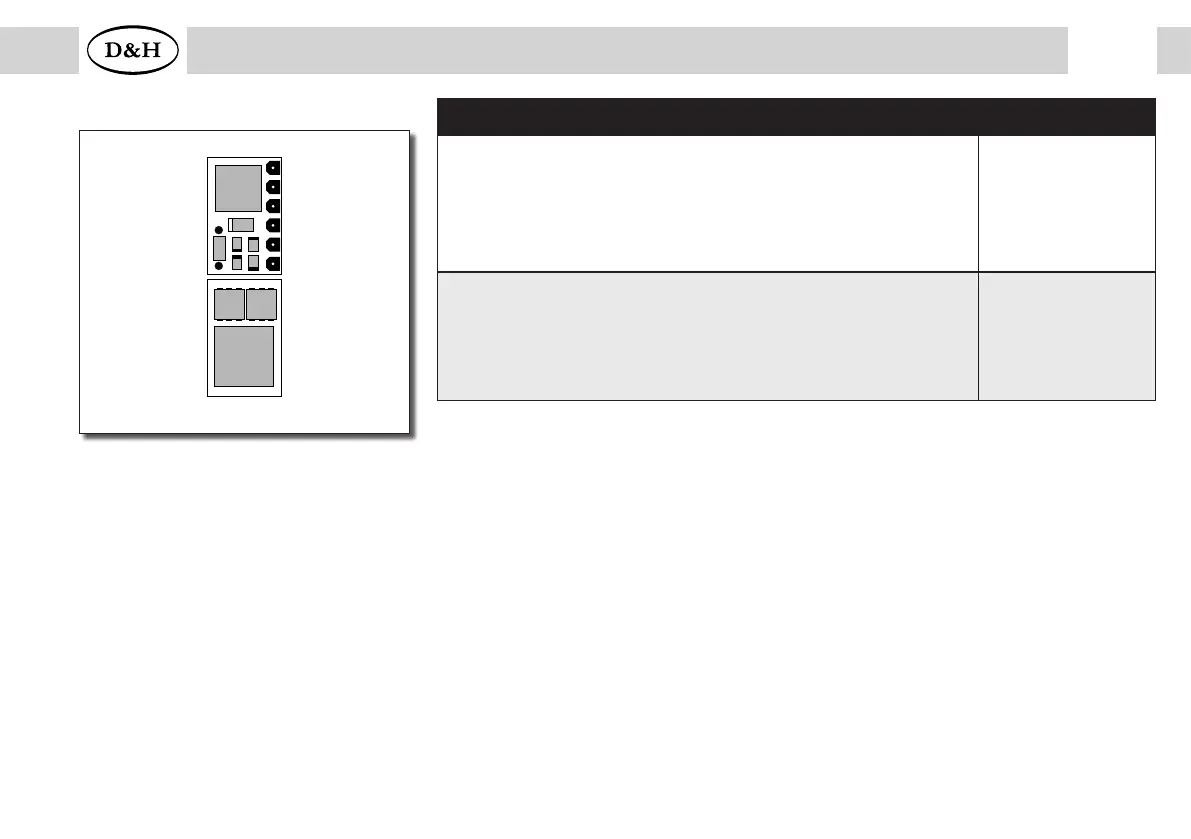

PD05A (2
nd
generation)
M1
M2
G1
G2
LV
LR
GND
VS
