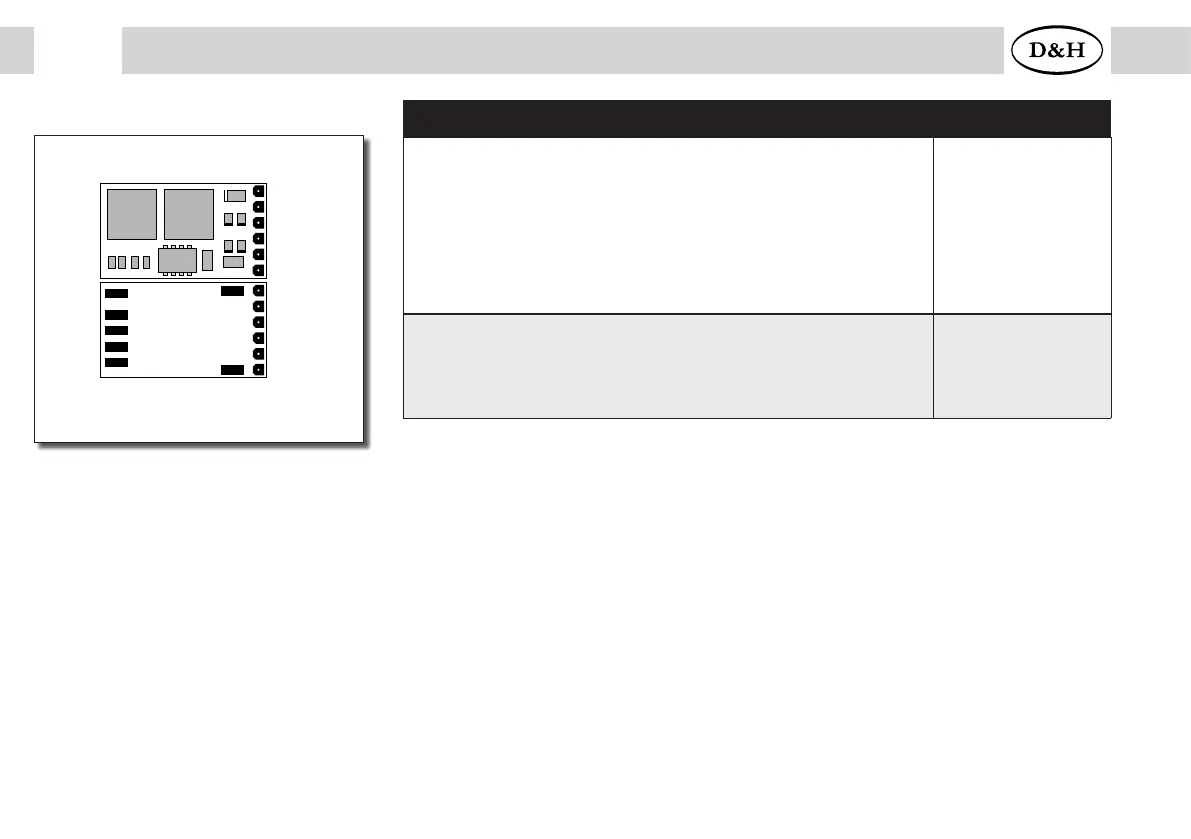

44
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
44
Locomotive/Vehicle function decoder from firmware version 3.12
FH05B (2
nd
generation)
Specifications FH05B
Dimensions [mm]
Total load
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
13,4 x 7,8 x 1,7
0,5 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
FH05B-0
FH05B-1
FH05B-3
*) Unamplified function outputs: See supplement 3.
If necessary: Connect blue wire (common return
conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and
GND (-).
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
AUX3, AUX4 .....Unamplified function 3, 4 *)
ZVS ...................SUSI supply voltage
ZCLK/AUX5 ...... SUSI clock (or AUX5 unamplified) *)
ZDAT/AUX6 ......SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
LV
AUX2
AUX1
G1
G2
LR
GND
ZDAT / AUX6
ZCLK / AUX5
ZVS
AUX3
AUX4
VS
