Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
45
Locomotive/Vehicle function decoder from firmware version 3.12
FH16A
Specifications FH16A
Dimensions [mm]
Total load
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
after publication
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting option
16 pin connector for direct plugging (PluX16)
FH16A-4
*) Unamplified function outputs: See supplement 3.

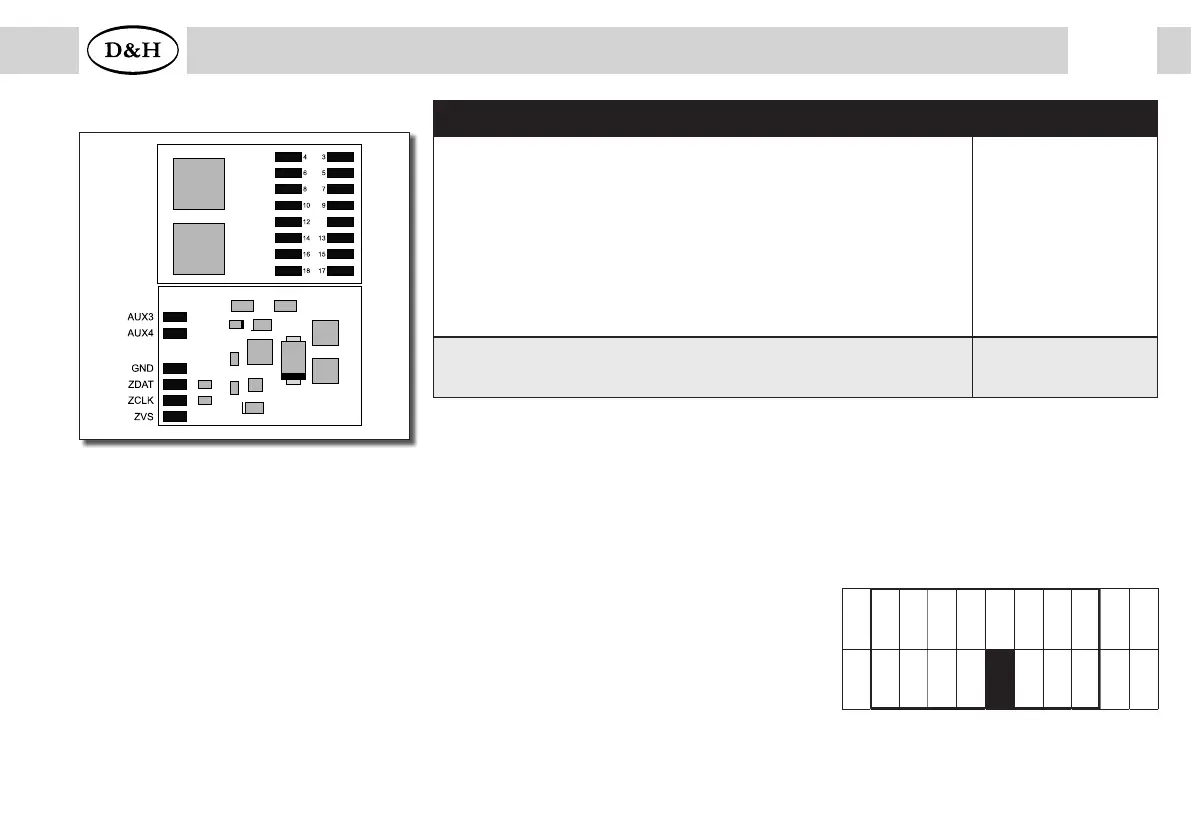

PluX16 interface
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21 22
ZCLK
GND
LV
VS
Index
LR
-- --
ZDAT ZVS -- -- G1 G2 AUX1 AUX2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
AUX3, AUX4 .....Additional function 3, 4 (each 1,0 A)
VS ......................Supply voltage
ZVS ...................SUSI supply voltage
ZCLK ..................SUSI clock (or AUX5 unamplified) *)
ZDAT .................SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
