Termix VMTD-IV MIX - 5 Series DS Fully insulated
Design

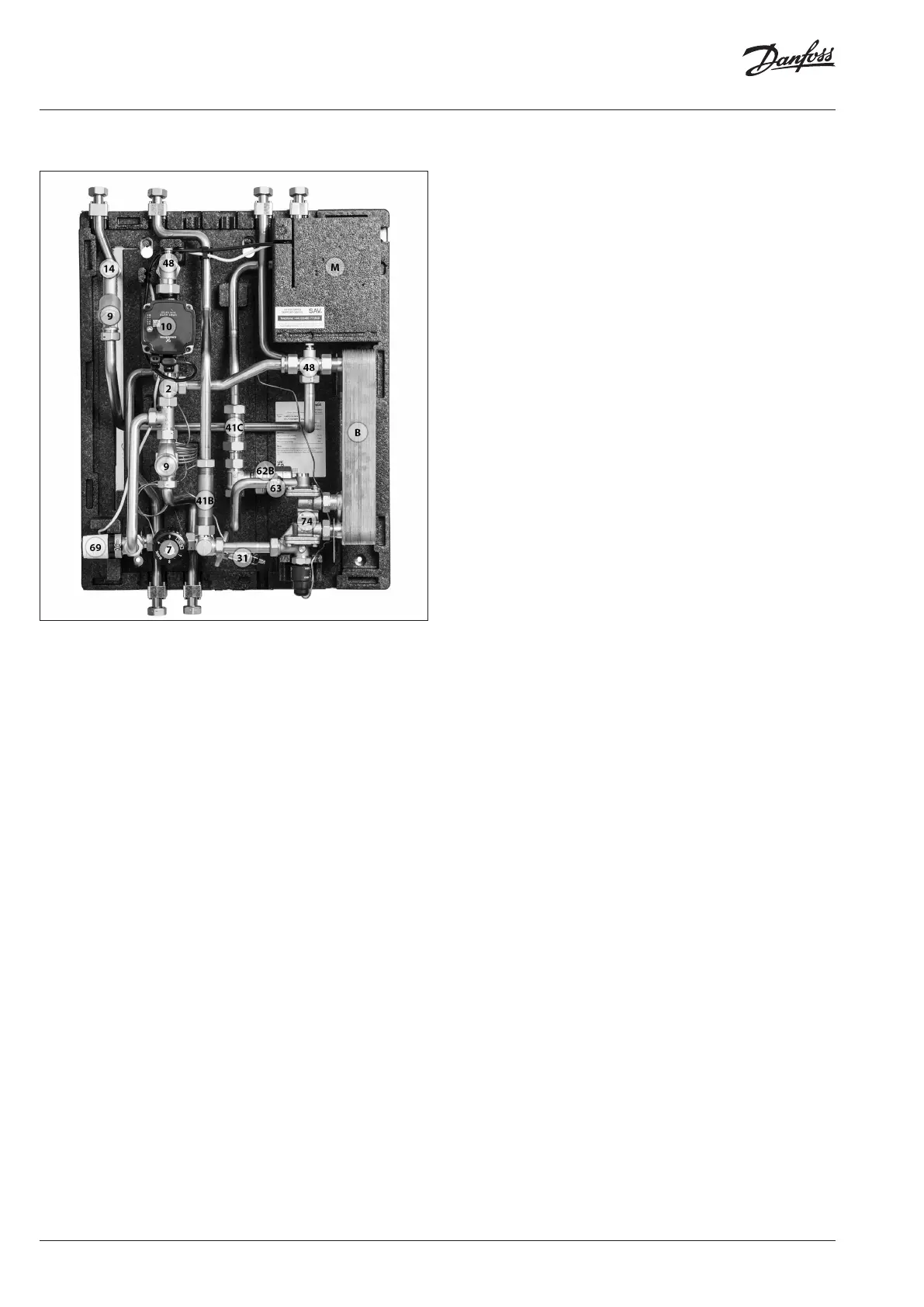

B Heat exchanger, DHW 10 Circulator pump 48 Air vent, manual
M Electrical wiring box 14 Sensor pocket, energy meter 62B Pressure absorber with non-return valve
2 Single check valve 31 Differential pressure controller 63 Sieve
7 Thermostatic valve, HTG 41B Fitting piece, energy meter 69 On/off valve
9 Strainer 41C Fitting piece, Shut-off-valve 74 IHPT controller, DHW
Your HIU may look different from the HIU shown
Heating flow and return pipes will be fitted as top feed or bottom feed, according to specification
