MG.90.D1.02 – VLT is a registered Danfoss trademark
64

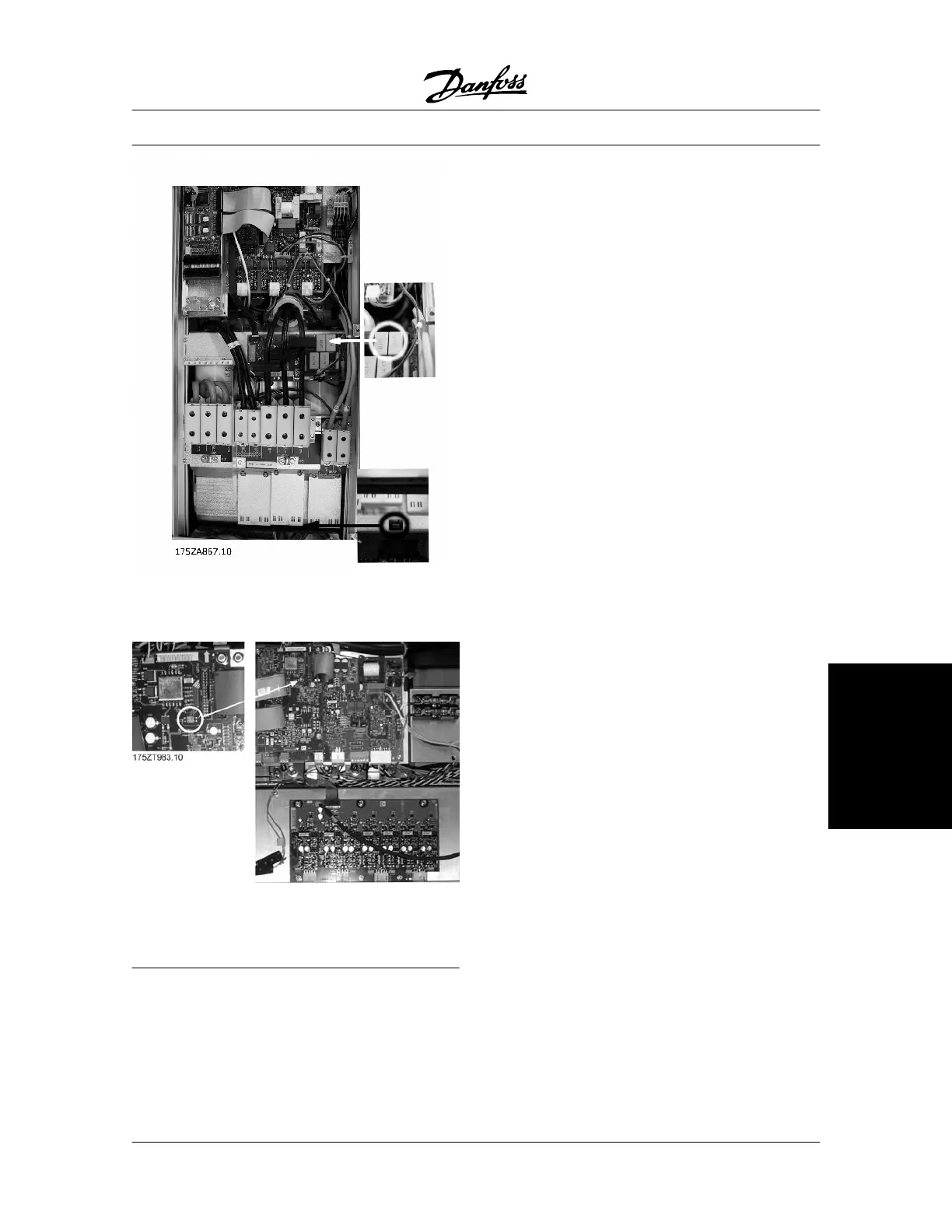

VLT
®
5000/5000 Flux/6000 HVAC/8000 AQUA PROFIBUS
Parameter list
PNU Parameter Factory setting Range Changes Conversion
# description during Index
operation
800 Protocol selection 1 ( = DP ) 0-1 yes no 0 5
801 Baud rate selection 500 kBaud (6) 0-9 yes no 0 5
802 Minimum station delay 35 (1) 0-1 yes no 0 5
803 Time after bus error 1 1-99 yes yes 0 5
804 Response after bus error Off (0) 0-7 yes yes 0 5
805 Function control word bit 10 Bit 10 = 1 =>
CTW active (1) 0-3 yes yes 0 5
806 SAP selection SAP 63 (0) 0-9 yes yes 0 5
900 Write PPO type 1 12 bytes yes yes 0 5
901 Write PPO type 2 20 bytes no no 0 5
902 Write PPO type 3 4 bytes no no 0 5
903 Write PPO type 4 12 bytes no no 0 5
904 PPO selection for DP 900 ( = PPO1 ) 900-903 yes yes 0 6
907 Read PPO type 1 12 bytes no no 0 5
908 Read PPO type 2 20 bytes no no 0 5
909 Read PPO type 3 4 bytes no no 0 5
910 Read PPO type 4 12 bytes no no 0 5
911 PPO type for FMS read 907 ( = PPO1 ) 907-910 yes yes 0 6
913 Broadcast index 0 0-32767 yes yes 0 6
914 Broadcast offset 0 0-244 yes yes 0 6
915 PCD write configuration yes yes 0 6
916 PCD read configuration yes yes 0 6
917
4
Spontaneous/event messages OFF (0) ON/OFF yes yes 0 6
918 User address 0 1-126 yes no 0 6
927 PCV operating authority With PROFIBUS (1) 0 - 1 yes yes 0 6
928 Control authority With PROFIBUS (1) 0 - 1 yes yes 0 6
953 Warning messages no no 0 6
967 Control word 16 Bit yes no 0
968 Status word 16 Bit no no 0 6
969 Time difference no no 0 6
970 Parameter setup selection Active setup =
P001 0 - 6 yes yes 0 5
971
S
Save data values OFF (0) ON/OFF yes no 0 5
980 Defined parameters no no 0 6
981
982
990 Modified parameters no no 0 6
991
992
4-Setup
Data
type
* Automatic reset to (0).
4
) Available in all 4 setups.
S
) Only in stop mode
■ Parameter list VLT 5000
