Switches 1-7 (switch 8 is not used)
1234567
Address switch position (1 = ON, 0 = OFF)
0 0000000
1 1000000
2 0100000
3 1100000
4 0010000
5 1010000
6 0110000
7 1110000
8 0001000
9 1001000
10 0101000
11 1101000
12 0011000
13 1011000
14 0111000
15 1111000
16 0000100
17 1000100
18 0100100
19 1100100
20 0010100
21 1010100
22 0110100
23 1110100
24 0001100
Switches 1-7 (switch 8 is not used)
1234567
Address switch position (1 = ON, 0 = OFF)
25 1001100
26 0101100
27 1101100
28 0011100
29 1011100
30 0111100
31 1111100
32 0000010
33 1000010
34 0100010
35 1100010
36 0010010
37 1010010
38 0110010
39 1110010
40 0001010
41 1001010
42 0101010
43 1101010
44 0011010
45 1011010
46 0111010
47 1111010
48 0000110
49 1000110
50 0100110
51 1100110
52 0010110
53 1010110
54 0110110
55 1110110
56 0001110
57 1001110
58 0101110
59 1101110
60 0011110
61 1011110
62 0111110
63 1111110
64 0000001
65 1000001

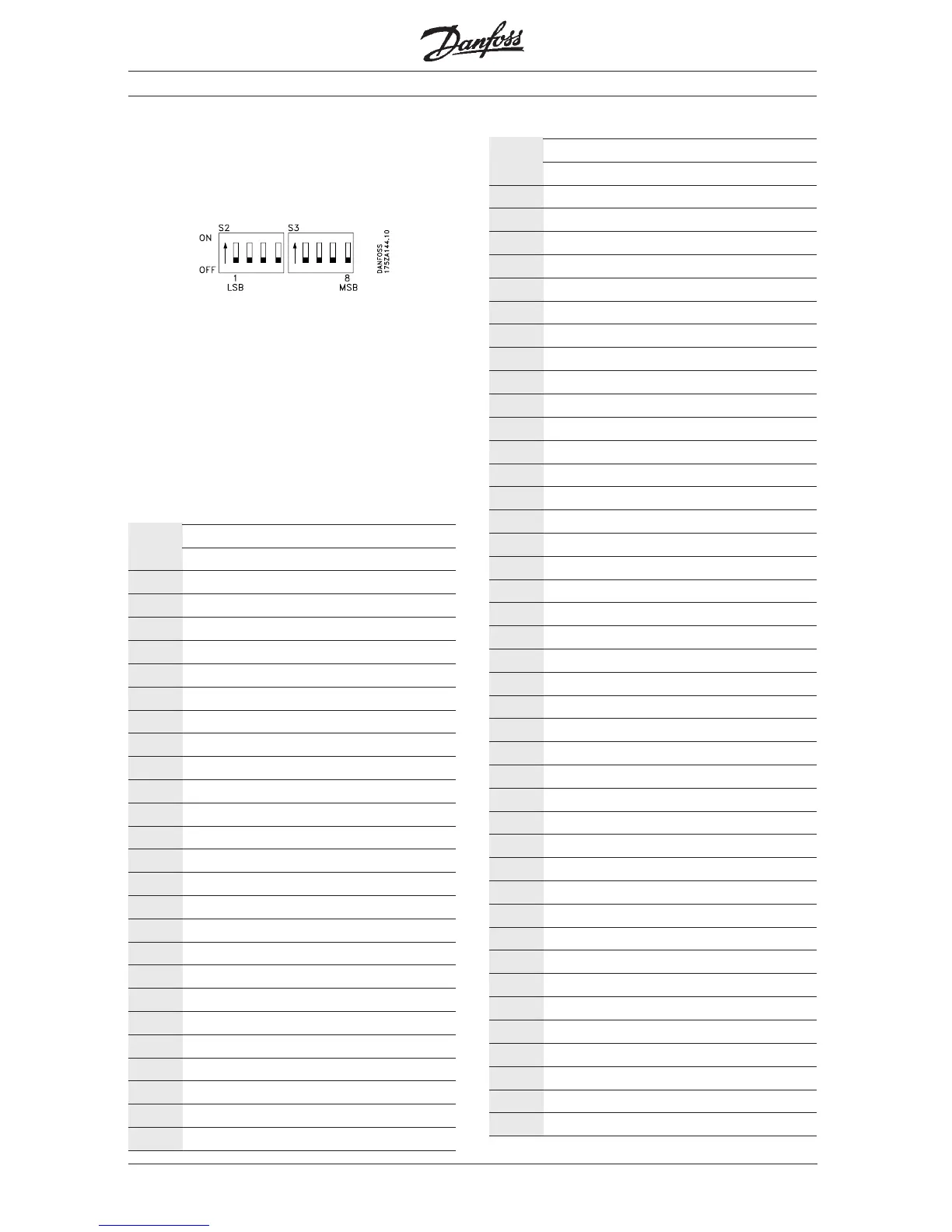

■ Address switches
The station address can be set in parameter 918 or
through a hardware switch (S2, 1-4 and S3, 5-7 on
the PROFIBUS option card).
The setting of an address through parameter 918 is
only possible when the address switches are set to
0 or > 126.
Each slave must have an unambiguous address.
The address is the binary value set for the
switches, cf. the table below. The modification of
the address switches occurs during the next turn-
on procedure.
