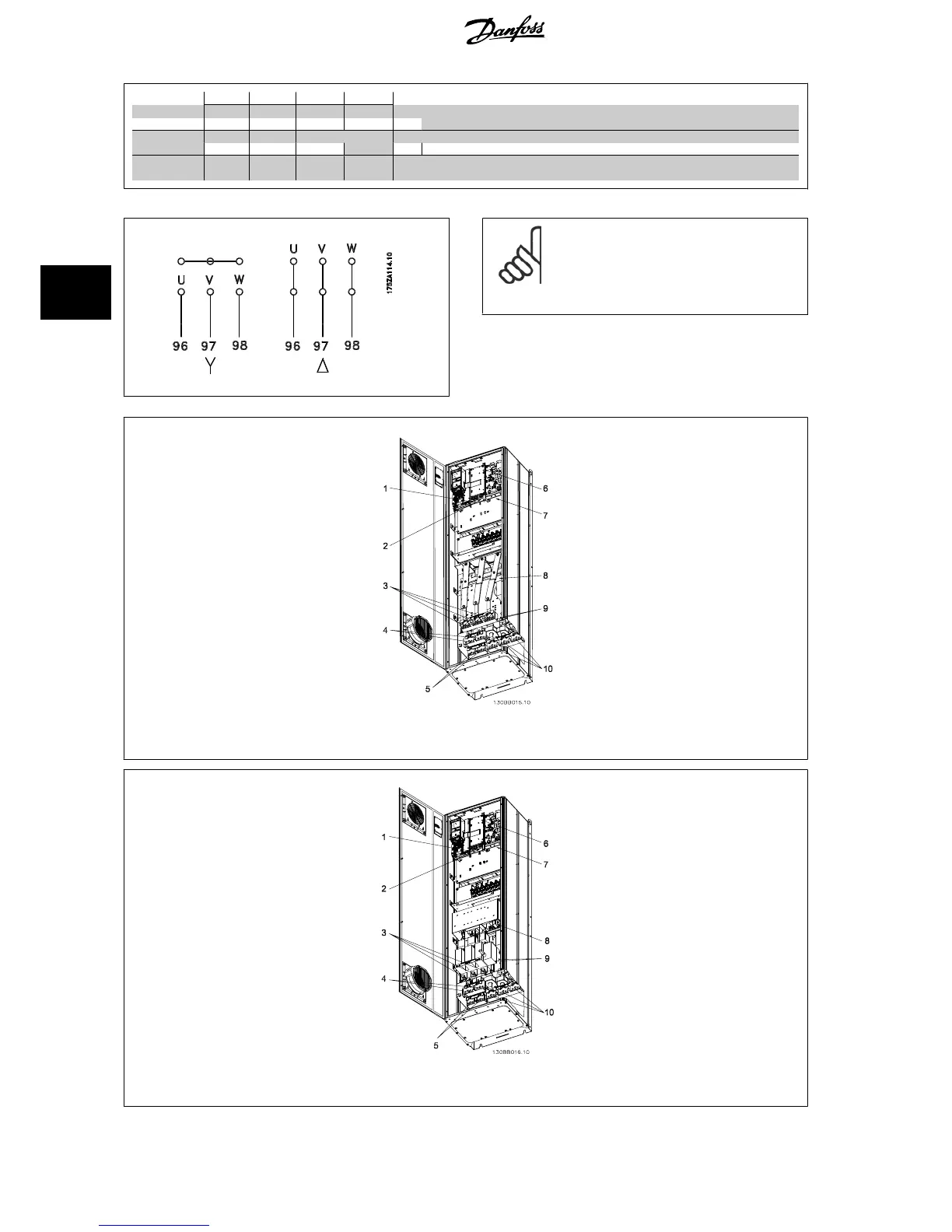

Term. no. 96 97 98 99
U V W
PE
1)
Motor voltage 0-100% of mains voltage.
3 wires out of motor
U1 V1 W1
PE
1)
Delta-connected
W2 U2 V2 6 wires out of motor
U1 V1 W1
PE
1)
Star-connected U2, V2, W2
U2, V2 and W2 to be interconnected separately.
1)
Protected Earth Connection
NB!
In motors without phase insulation paper or other in-
sulation reinforcement suitable for operation with volt-
age supply (such as a frequency converter), fit a Sine-
wave filter on the output of the frequency converter.
Illustration 4.1: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12), frame size D1
Illustration 4.2: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12) with disconnect, fuse and RFI filter, frame size D2
4 Electrical Installation ADAP-KOOL
®
Drive AKD 102 High Power
34
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
4
