Danfoss ADAP-KOOL AKD 102

1) AUX Relay 5) Brake
01 02 03 -R +R
04 05 06 81 82
2) Temp Switch 6) SMPS Fuse (see fuse tables for part number)
106 104 105 7) AUX Fan
3) Line 100 101 102 103
R S T L1 L2 L1 L2
91 92 93 8) Fan Fuse (see fuse tables for part number)
L1 L2 L3 9) Mains ground
4) Load sharing 10) Motor
-DC +DC U V W
88 89 96 97 98
T1 T2 T3

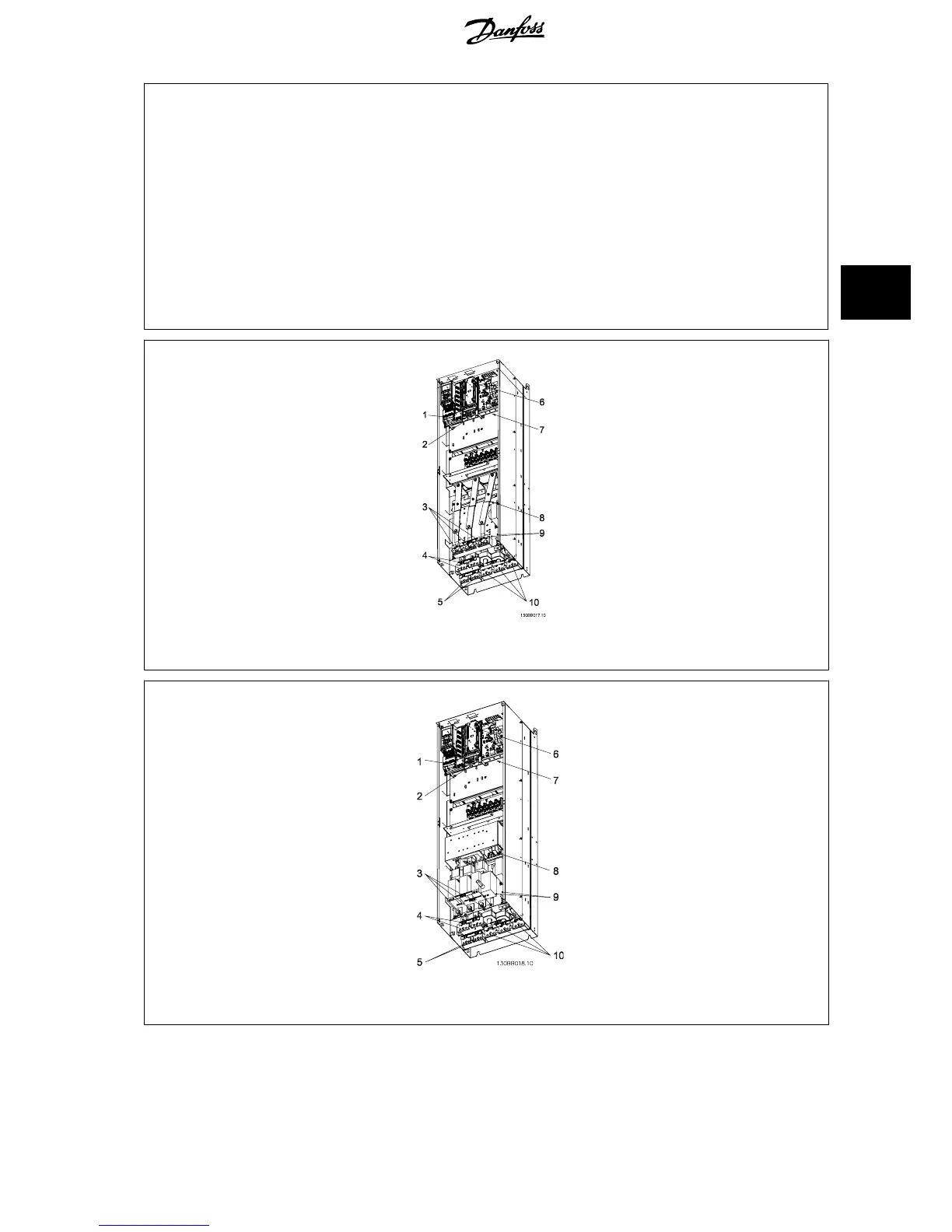

Illustration 4.3: Compact IP 00 (Chassis), frame size D3
Illustration 4.4: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size D4
ADAP-KOOL
®
Drive AKD 102 High Power 4 Electrical Installation
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark 35
4
