4.1.5 Torque
When tightening all electrical connections it is very important to tighten
with the correct torque. Too low or too high torque results in a bad elec-
trical connection. Use a torque wrench to ensure correct torque

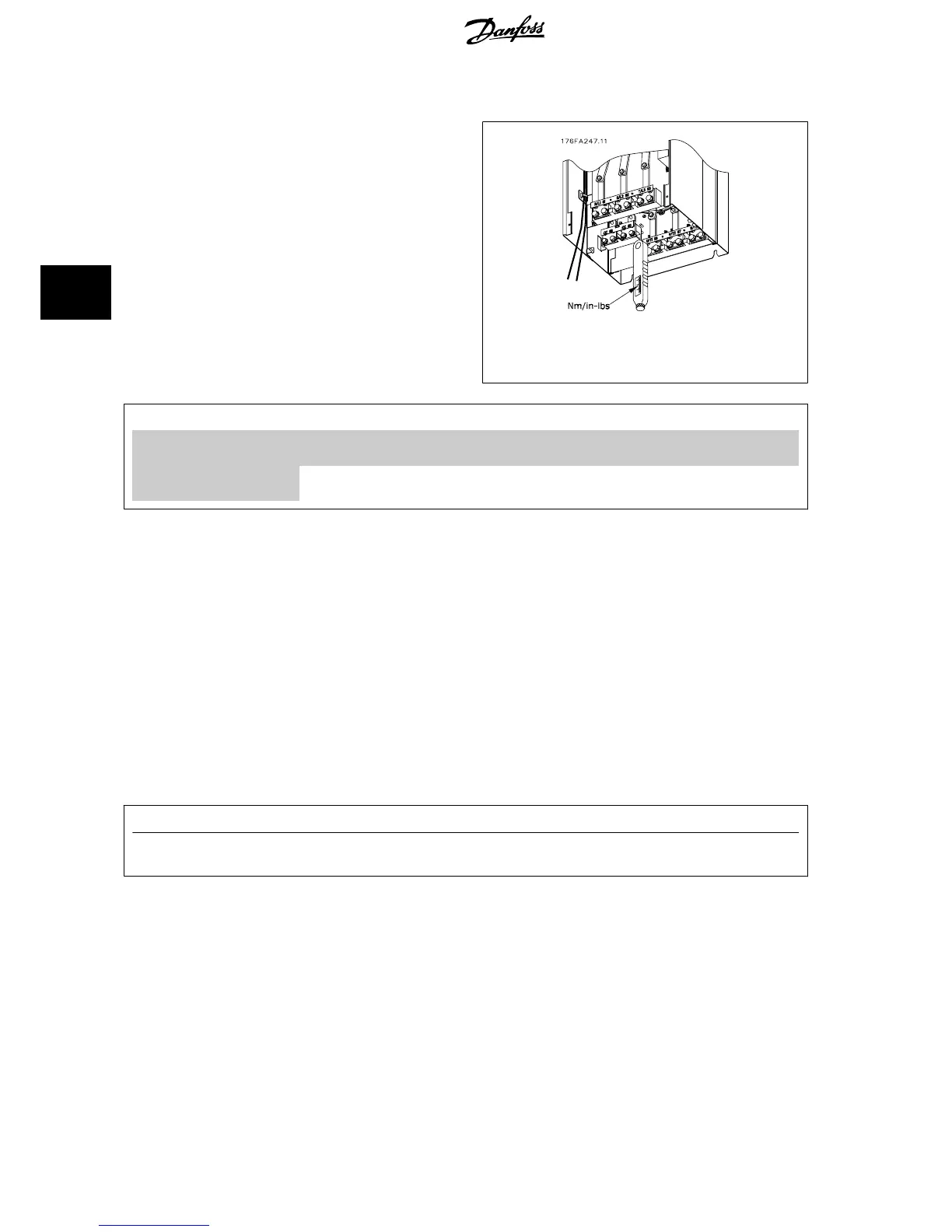

Illustration 4.7: Always use a torque wrench to tighten the
bolts.
Frame size Terminal Torque Bolt size
D1, D2, D3 and D4 Mains
Motor
19 Nm (168 in-lbs) M10
Load sharing
Brake
9.5 Nm (84 in-lbs) M8
4.1.6 Shielded Cables
It is important that shielded and armoured cables are connected in a proper way to ensure high EMC immunity and low emissions.
Connection can be made using either cable glands or clamps:
• EMC cable glands: Generally available cable glands can be used to ensure an optimum EMC connection.
• EMC cable clamp: Clamps allowing easy connection are supplied with the frequency converter.
4.1.7 Motor Cable
The motor must be connected to terminals U/T1/96, V/T2/97, W/T3/98. Earth to terminal 99. All types of three-phase asynchronous standard motors
can be used with a frequency converter unit. The factory setting is for clockwise rotation with the frequency converter output connected as follows:
Terminal No.
Function
96, 97, 98, 99 Mains U/T1, V/T2, W/T3
Earth
4 Electrical Installation ADAP-KOOL
®
Drive AKD 102 High Power
38
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
4
