• Terminal U/T1/96 connected to U-phase
• Terminal V/T2/97 connected to V-phase
• Terminal W/T3/98 connected to W-phase

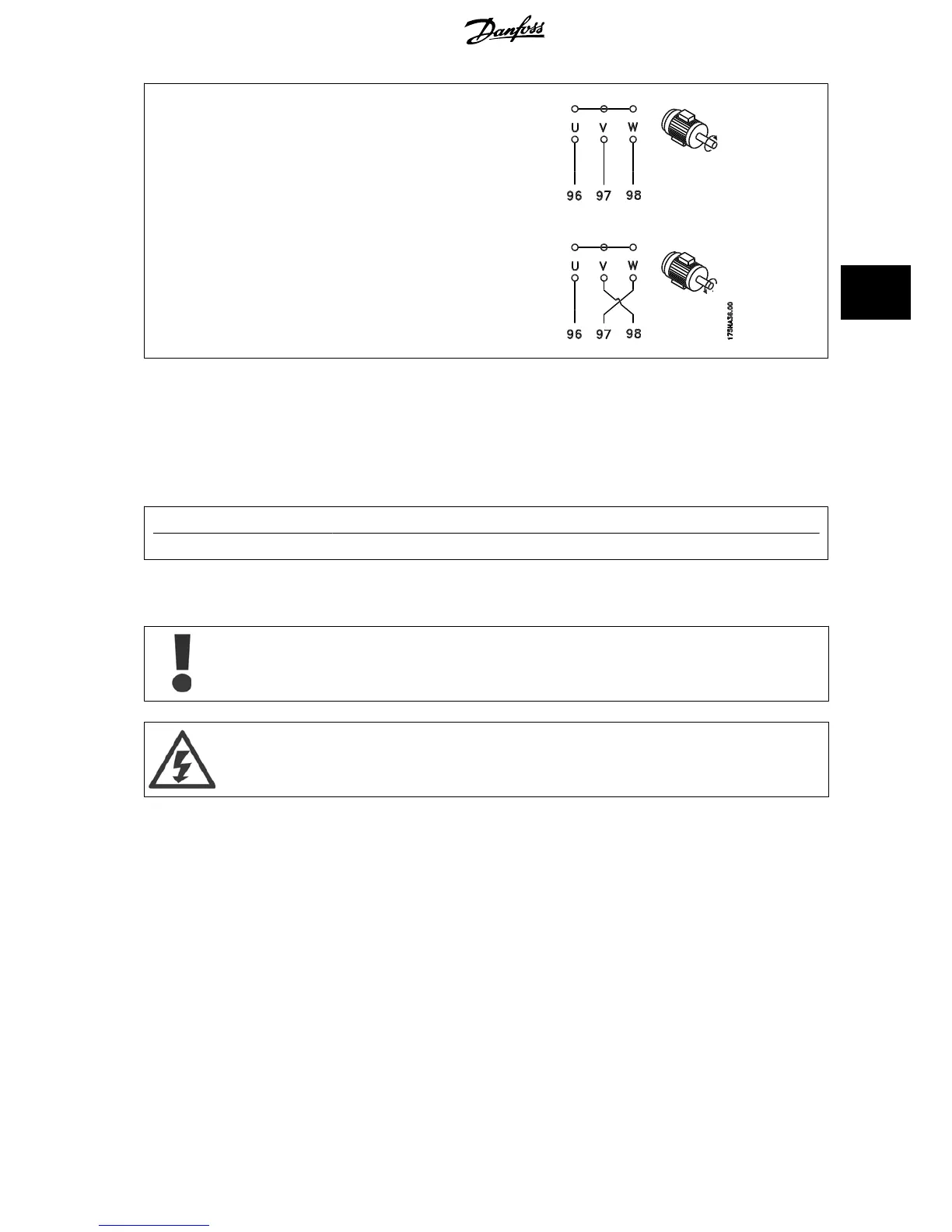

The direction of rotation can be changed by switching two phases in the motor cable or by changing the setting of par. 4-10
Motor Speed Direction
.
Motor rotation check can be performed using par.1-28
Motor Rotation Check
and following the steps shown in the display.
4.1.8 Load Sharing
Terminal No. Function
88, 89 Loadsharing
The connection cable must be screened and the max. length from the frequency converter to the DC bar is limited to 25 metres (82 feet).
Load sharing enables linking of the DC intermediate circuits of several frequency converters.
Please note that voltages up to 1099 VDC may occur on the terminals.
Load Sharing calls for extra equipment and safety considerations. For further information, see load sharing Instructions MI.50.NX.YY.
Please note that mains disconnect may not isolate the frequency converter due to DC link connection
ADAP-KOOL
®
Drive AKD 102 High Power 4 Electrical Installation
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
39
