4. How to I nstall
4.1. How to I nstall

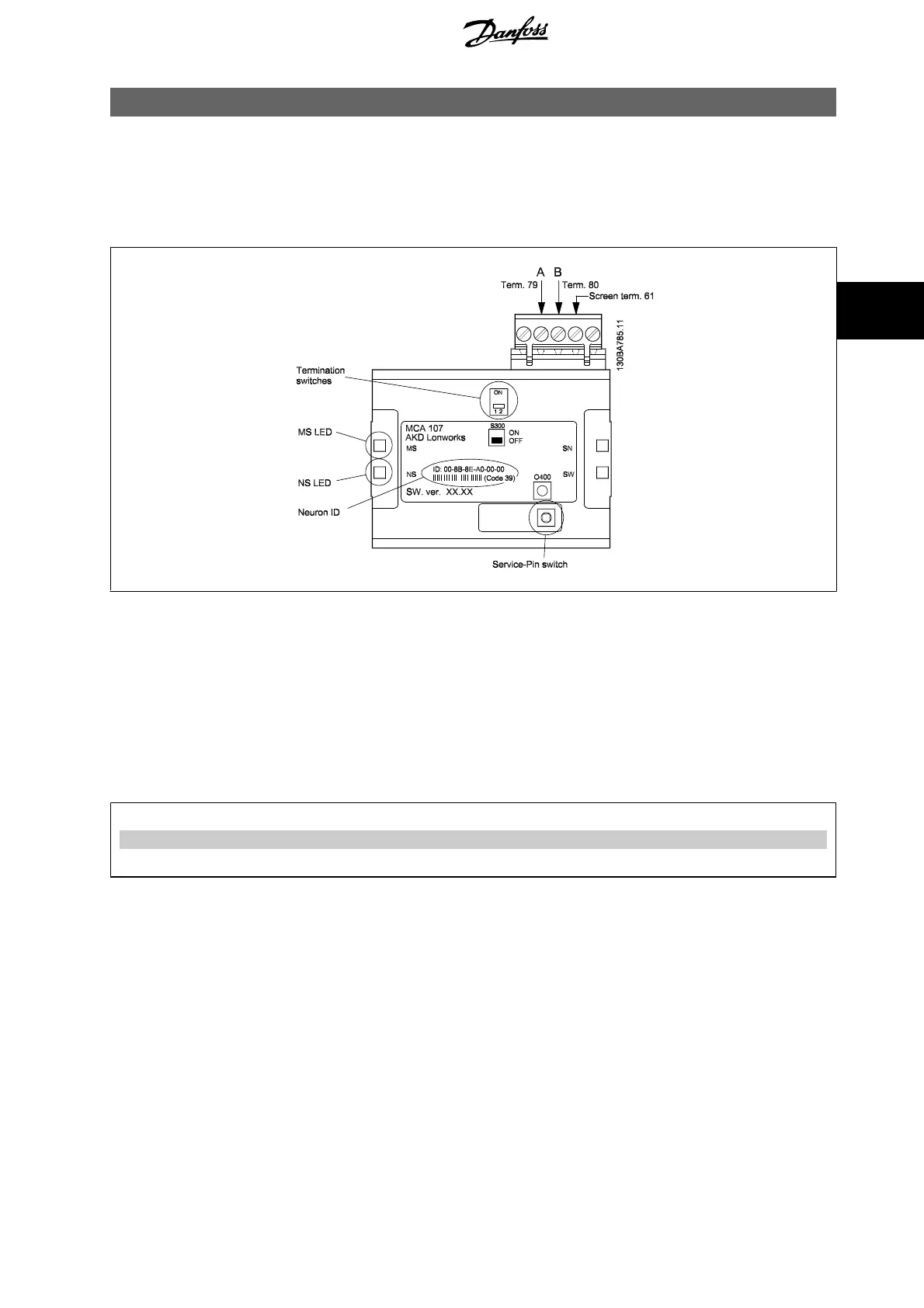

4.1.1. The LonWorks Option
S300 switches between:
- OFF: No Termination (factory setting)
and
- ON: Single termination (105 Ohm)
The push-button switch O400, activates the Service-Pin function.
The LEDs:
LED label Description
MS Service LED (red)
NS Status LED (green)
The neuron I D is printed on the option in text and in barcode (code 39).
4.1.2. Cabling
For information on cabling, please refer to data communication between ADAP-KOOL® refrigeration cont rols RC8AC302.
4.1.3. Maximum Cable Lengths
Please refer to data communication between ADAP-KOOL® refrigeration controls RC8AC302.
ADAP-KOOL
®
AKD-LonWorks 4. How to I nstall
MG.11.P1.02
7
