ERR31
Alarm on the external display - MMIGRS2

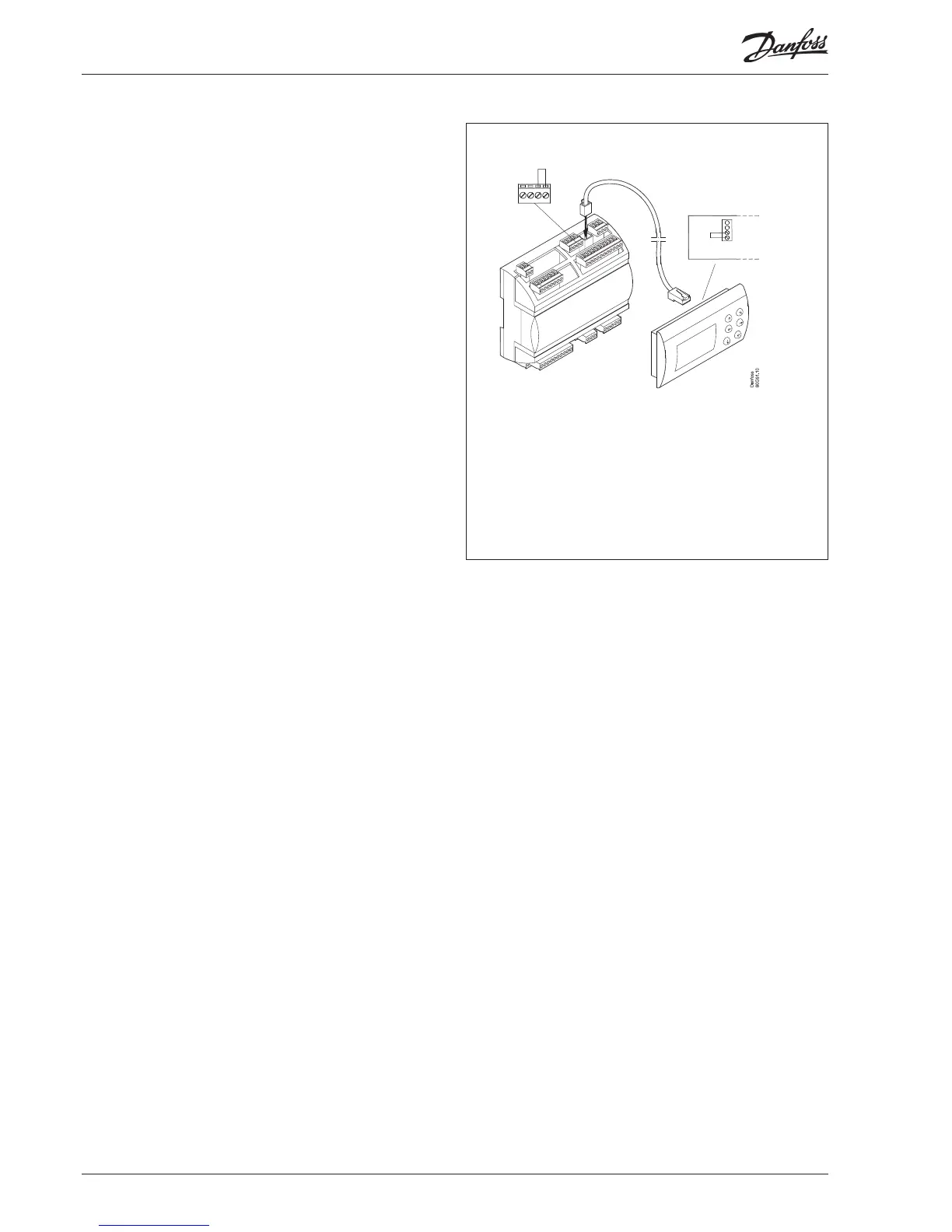

If the communication to the display is not carried out correctly, it will send
an “ERR31” error notication.
This may be caused by the displayed terminations not being installed, or
that there have been interruptions in data communication during the time
when the display retrieves the basic information from the controller.
Once the terminations have been inspected, you should then check the
software version of the external display. This is done by holding down
the Enter key and the X key for 5 seconds, until the Bios menu appears.
Next, press the X key and read o the software version in the bottom right
corner. The software version must be 1.13 or newer.
Once the display’s software version has been checked, check the display’s
settings as follows:
1. Hold the Enter key and the X key down for 5 seconds, until the Bios
menu appears.
2. Select the “MCX selection” menu
- Select the “Clear UI” line and press Enter
- Select the “Autodetect” line and press Enter
3. Press the X key to return to the Bios menu
4. Select the “COM selection” menu
- Select the “CAN” line and press Enter
5. Press the X key to return to the Bios menu
6. Select the “Start up mode” menu
- Select the “Remote application” line and press Enter
7. Press the X key to return to the Bios menu
8. Select the “CAN” menu
- Select the “Baudrate” line and then select the “Autobaud” setting and
press Enter
- Select the “Node ID” line and set the value to 126 and press Enter
9. Press the X key to return to the Bios menu
10. Select the “Application” menu and press Enter.
The display will once again retrieve data from the controller. This process
will take about 5 minutes.
